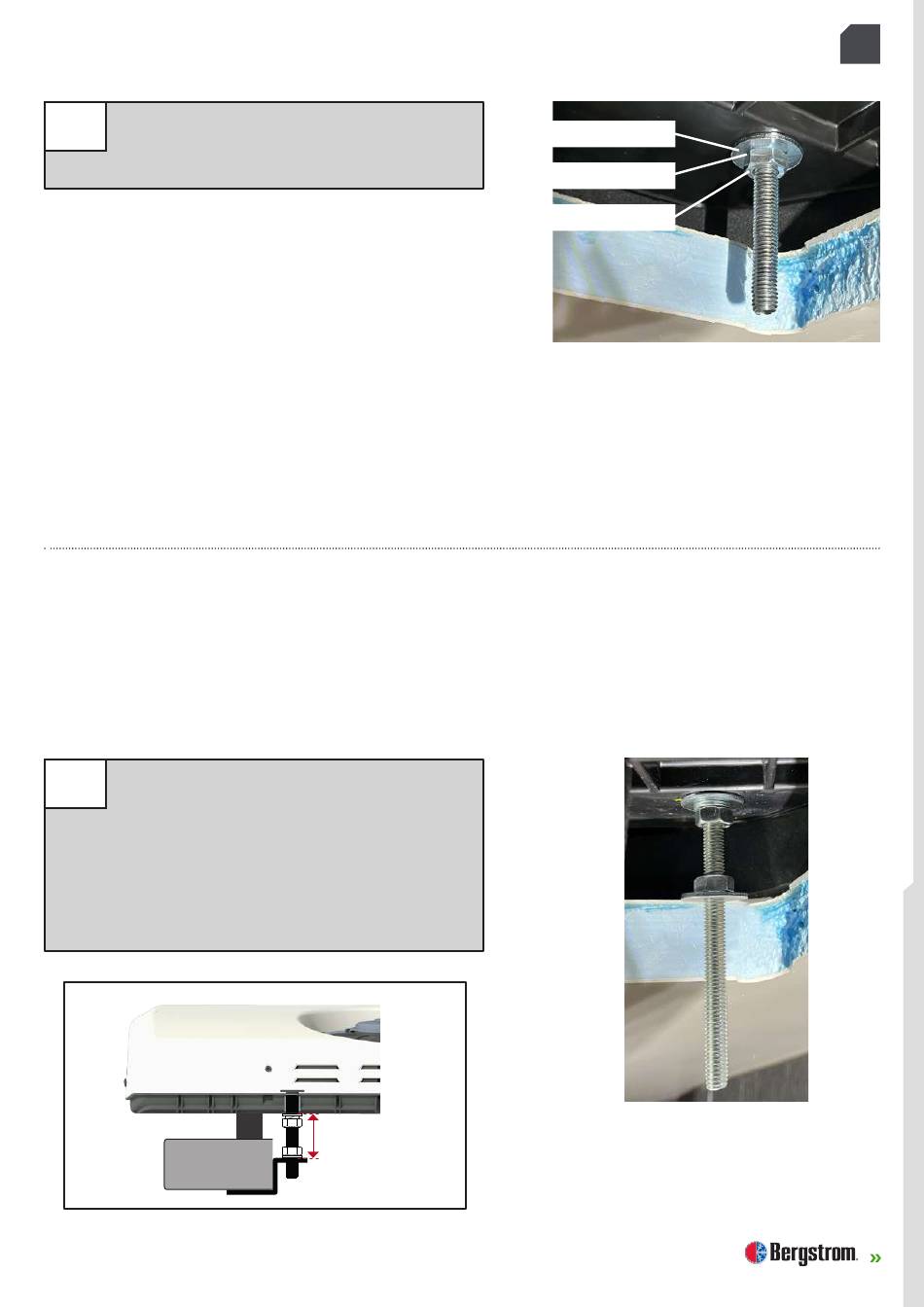

Fasten the (4) studs to the base on the unit
9
with (1) wide-rimmed washer, (1) grower
washer and (1) nut on each one.
Mount (1) nut and (1) wide-rimmed washer
10
on each stud at the following approximate
distances from the base of the unit:
- 30 mm thick: Between 27 and 30 mm
- 40 mm thick: Between 37 and 40 mm
- 50 mm thick: Between 47 and 50 mm
- 60 mm thick: Between 57 and 60 mm
Distance
according to
thickness
Wide-rimmed washer
Grower washer
Nut
