OPERATIONS BEFORE INSTALLING OPENAIR IN VEHICLES
WITH NO ROOF HATCH

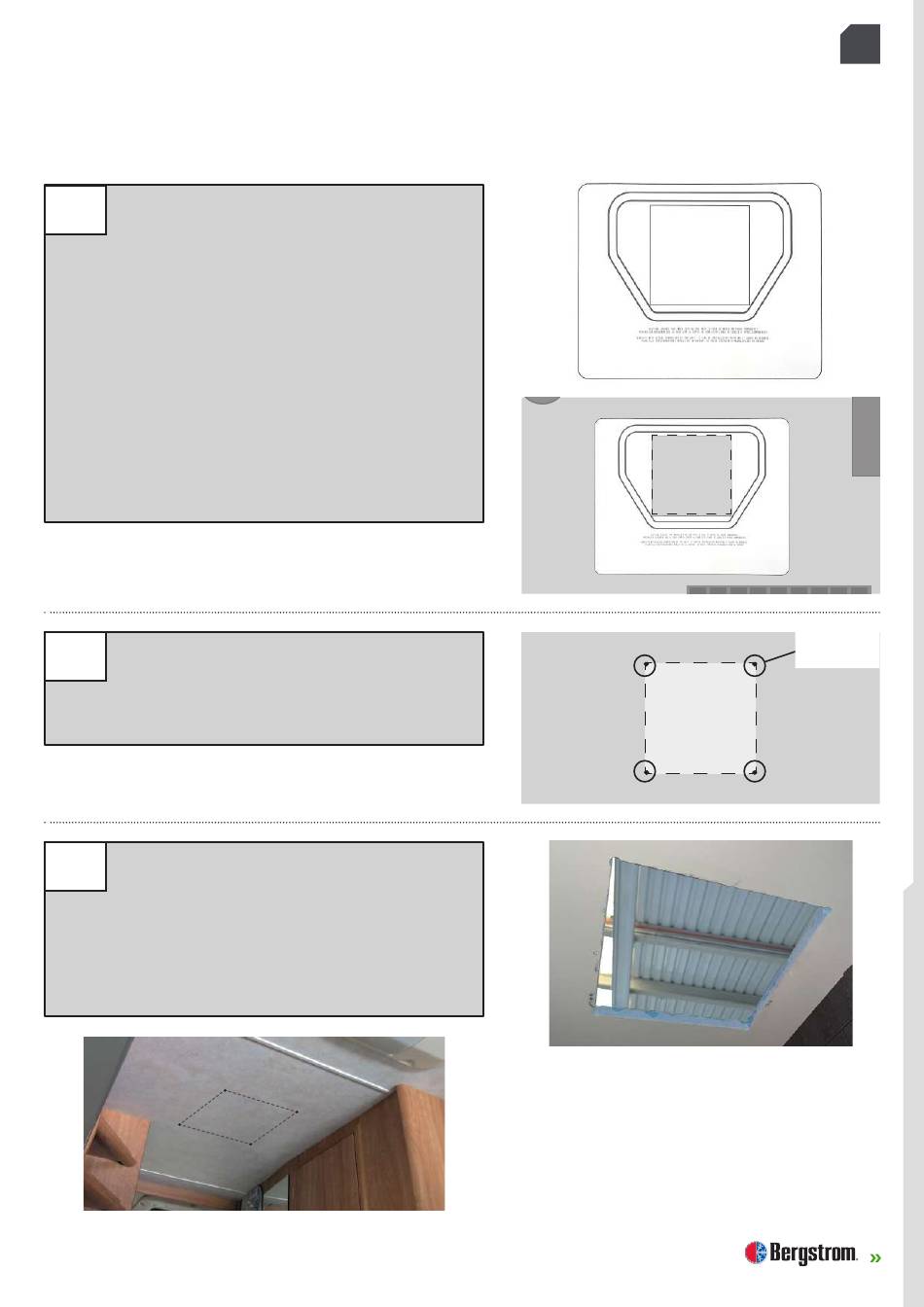

1 Take the cutting template from the OPENAIR
equipment box and place it on the roof of the
vehicle to mark the position where the unit will
be installed.
Caution: Check that the marking on the
outside does not interfere with any element
inside the vehicle when mounting the interior
console.
Note: OPENAIR is a versatile unit that can
be installed every 90º in order to adapt to the
available space on the vehicle's roof, meaning
it does not interfere with the rest of the
accessories.
2 From outside the vehicle, from inside the
vehicle, mark the 400 x 400 mm space where
the unit will sit.
of the marked space.
3 From outside the vehicle, join the holes by
cutting the roof using a jigsaw. Complete the
cut from the inside by cutting the batting and
the false ceiling.
Caution: Take care when making the cut, as
there may be a cable duct inside.
Drill (4) holes in the 4 corners
OPENAIR EN
