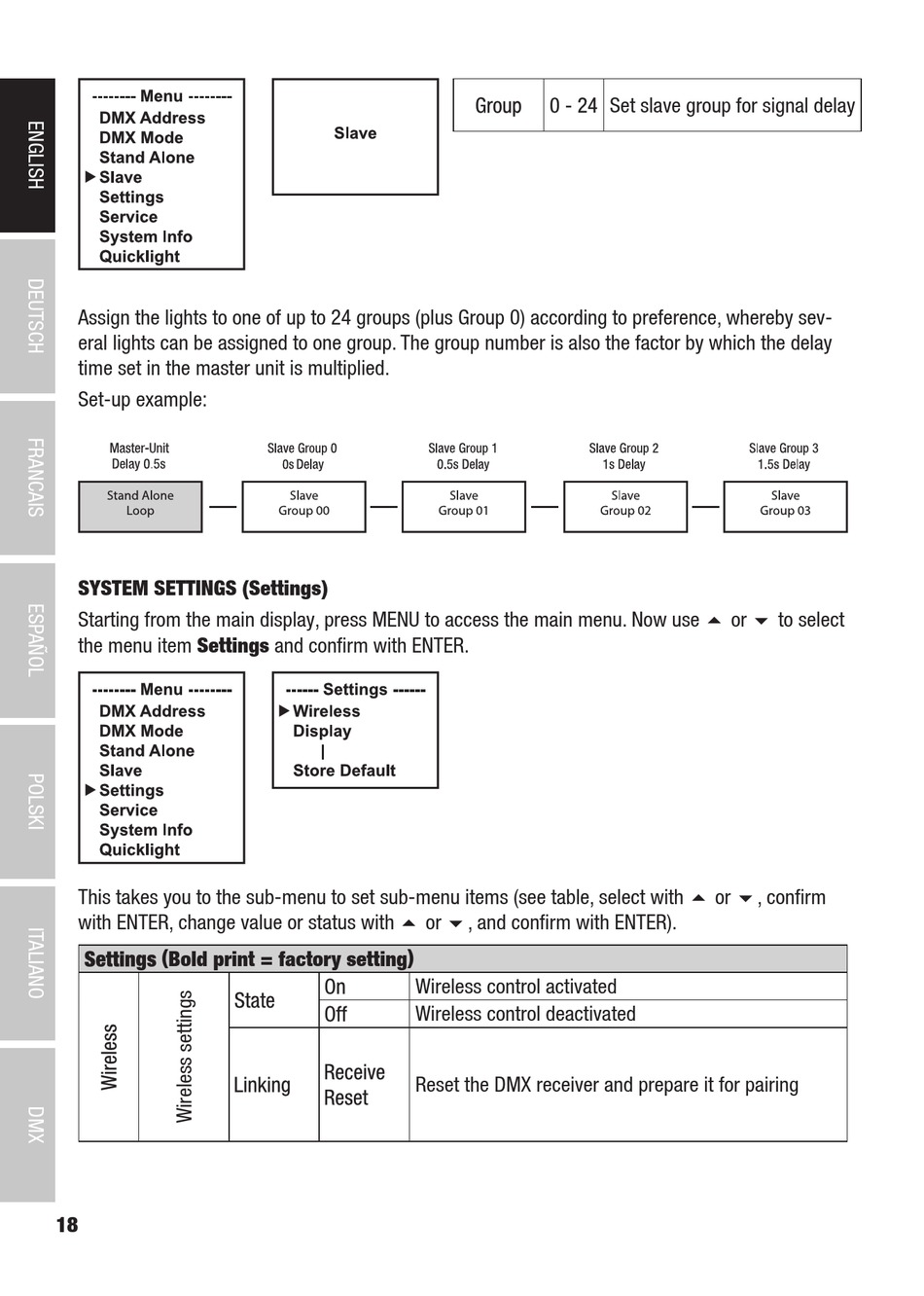

Cameo AZOR SP2 IP Bedienungsanleitung Seite 18

Assign the lights to one of up to 24 groups (plus Group 0) according to preference, whereby sev-
eral lights can be assigned to one group. The group number is also the factor by which the delay
time set in the master unit is multiplied.
Set-up example:
SYSTEM SETTINGS (Settings)
Starting from the main display, press MENU to access the main menu. Now use ⏶ or ⏷ to select
the menu item Settings and confirm with ENTER.
This takes you to the sub-menu to set sub-menu items (see table, select with ⏶ or ⏷, confirm
with ENTER, change value or status with ⏶ or ⏷, and confirm with ENTER).
( Bold print = factory setting )
18
Wireless control activated
Wireless control deactivated
Reset the DMX receiver and prepare it for pairing
Set slave group for signal delay
