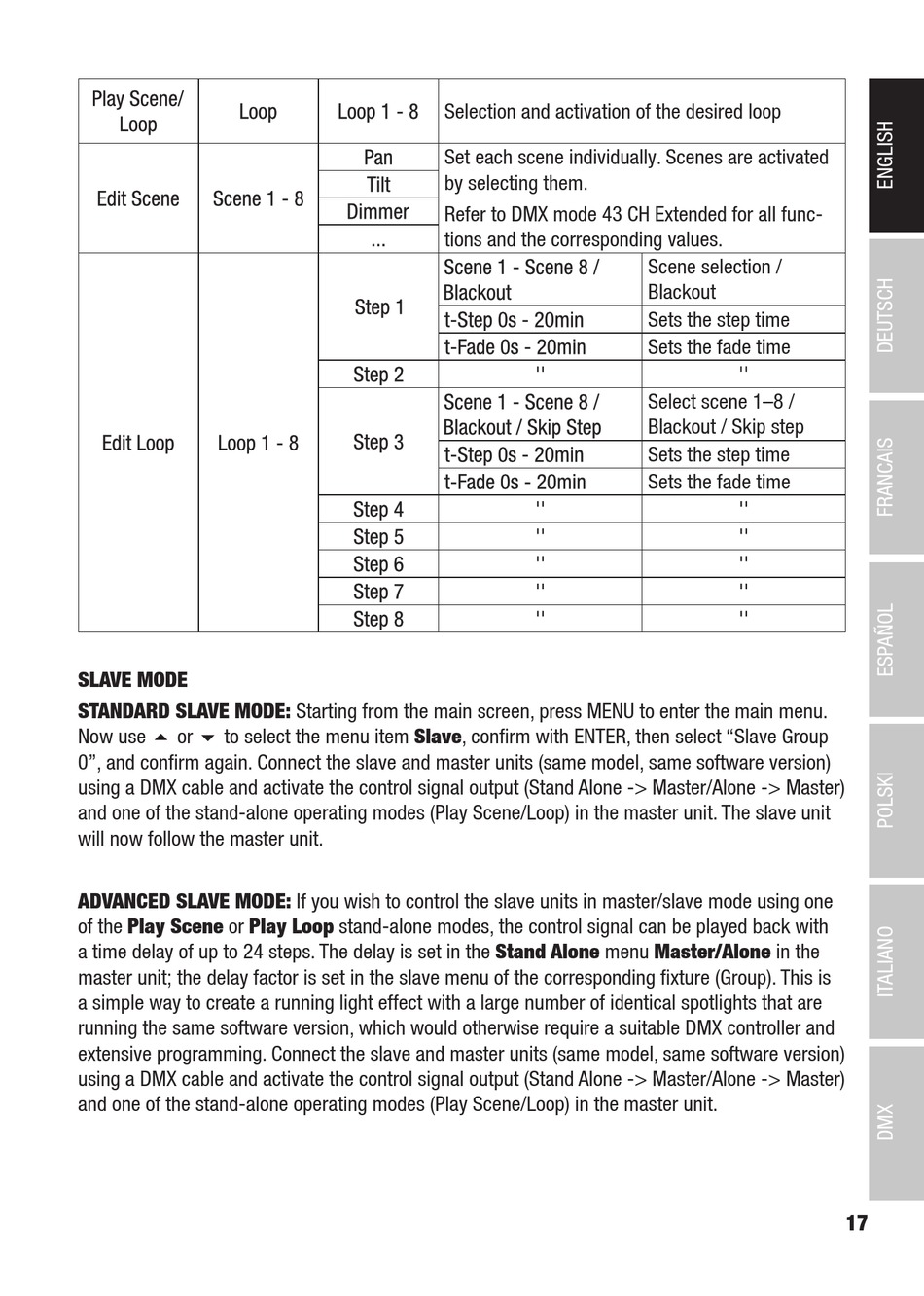

SLAVE MODE
STANDARD SLAVE MODE: Starting from the main screen, press MENU to enter the main menu.
Now use ⏶ or ⏷ to select the menu item Slave, confirm with ENTER, then select "Slave Group
0", and confirm again. Connect the slave and master units (same model, same software version)
using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master)
and one of the stand-alone operating modes (Play Scene/Loop) in the master unit. The slave unit
will now follow the master unit.
ADVANCED SLAVE MODE: If you wish to control the slave units in master/slave mode using one
of the Play Scene or Play Loop stand-alone modes, the control signal can be played back with
a time delay of up to 24 steps. The delay is set in the Stand Alone menu Master/Alone in the
master unit; the delay factor is set in the slave menu of the corresponding fixture (Group). This is
a simple way to create a running light effect with a large number of identical spotlights that are
running the same software version, which would otherwise require a suitable DMX controller and
extensive programming. Connect the slave and master units (same model, same software version)
using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master)
and one of the stand-alone operating modes (Play Scene/Loop) in the master unit.
Selection and activation of the desired loop
Set each scene individually. Scenes are activated
by selecting them.
Refer to DMX mode 43 CH Extended for all func-
tions and the corresponding values.
Scene selection /
Blackout
Sets the step time
Sets the fade time
''
Select scene 1–8 /
Blackout / Skip step
Sets the step time
Sets the fade time
