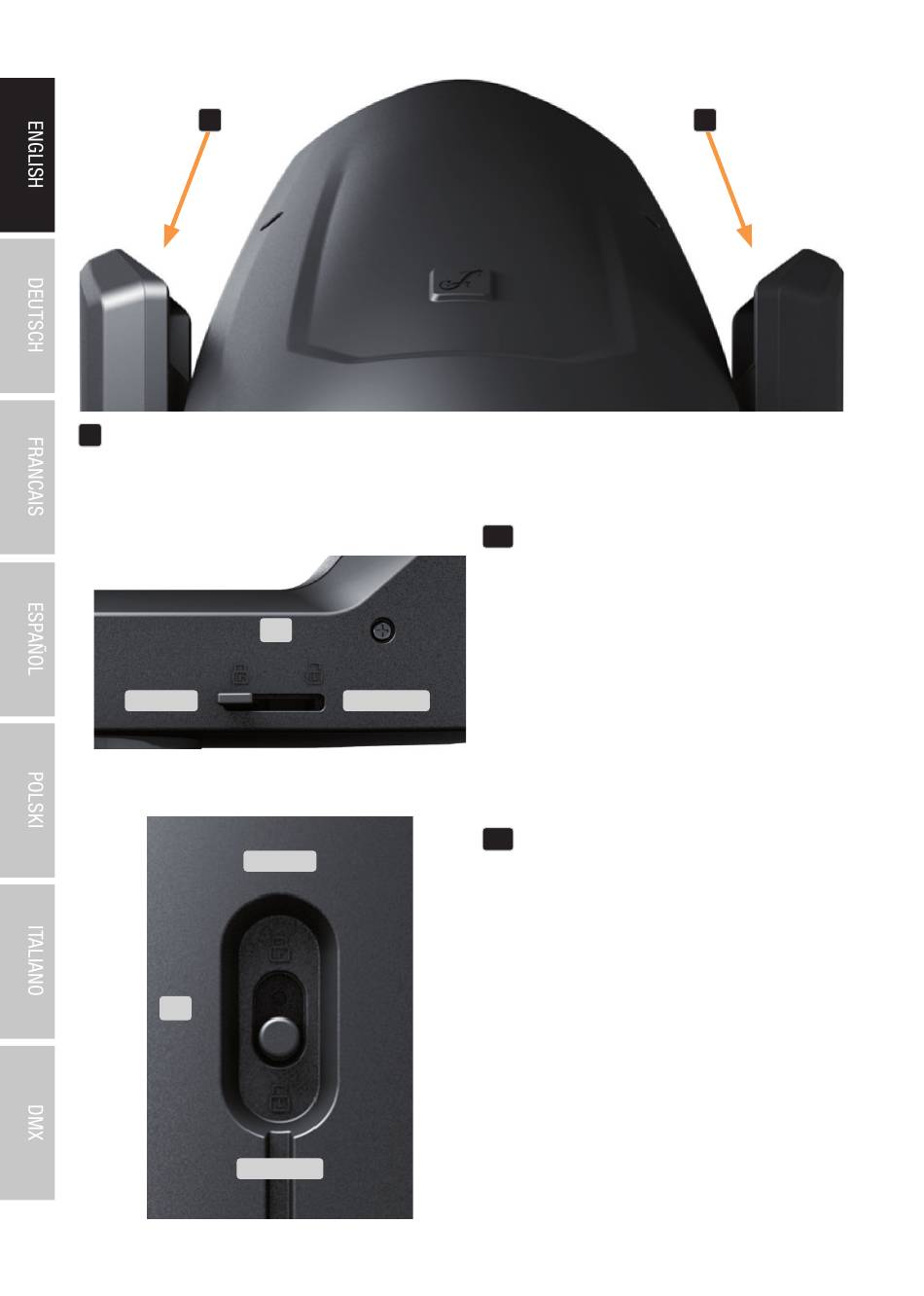

9 RECESSED GRIPS
In addition to the two transport handles on the base of the device, there are convenient recessed
grips at the top of the inner sides of the two device arms.
LOCK
11
14
10
UNLOCK
LOCK
UNLOCK
10 PAN LOCK
Mechanical locking device used to prevent the
rotation of the head in the horizontal direction
during transport. Disconnect the unit from the
mains, move the head parallel to the base (8
possible positions), and push the locking lever
in the direction of the pan rotation axis (LOCK)
to lock it in position. Unlock the locking device
before device start-up (UNLOCK).
11 TILT LOCK
Mechanical locking device used to prevent
rotation of the head in the vertical direction
during transport (seven possible positions).
Disconnect the unit from the mains and slide
the locking lever towards the tilt rotation axis,
moving the head of the unit vertically until one
of the seven locking positions is found and the
locking lever engages (LOCK). Unlock the lo-
cking device before device start-up (UNLOCK).
