Layher ZIFA Aufbau- Und Verwendungsanleitung Seite 55

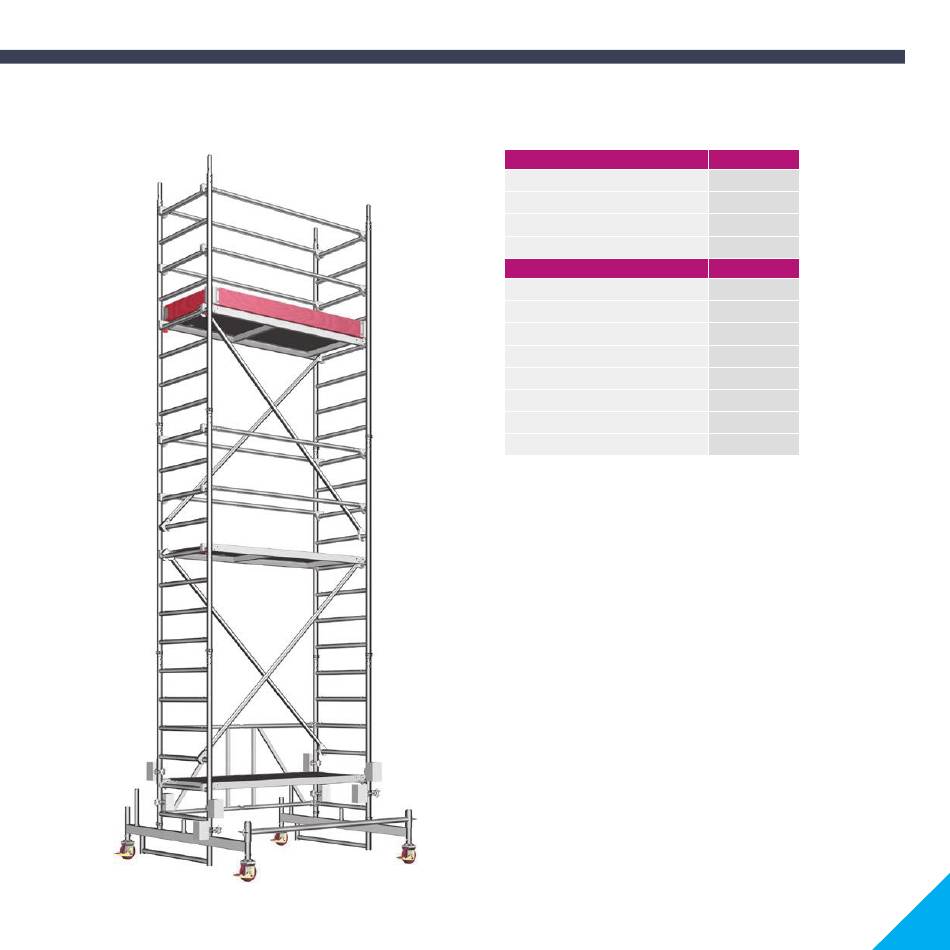

Example for assembly of model 1406215
Assembly outdoors in central position
Ballast: see pages 8 – 10
Tower model
Working height [m]
Tower height [m]
Platform height [m]
Weight [kg] (without ballast)
Ballasting
In closed areas
Assembly central
Assembly off-centre
Assembly off-centre with wall bracing
In the open
Assembly central
Assembly off-centre
Assembly off-centre with wall bracing
1406215
6.76
5.98
4.76
191.4
l4 r4
L0 R6
L6 R0
l4 r4
L0 R8
L8 R0
23
