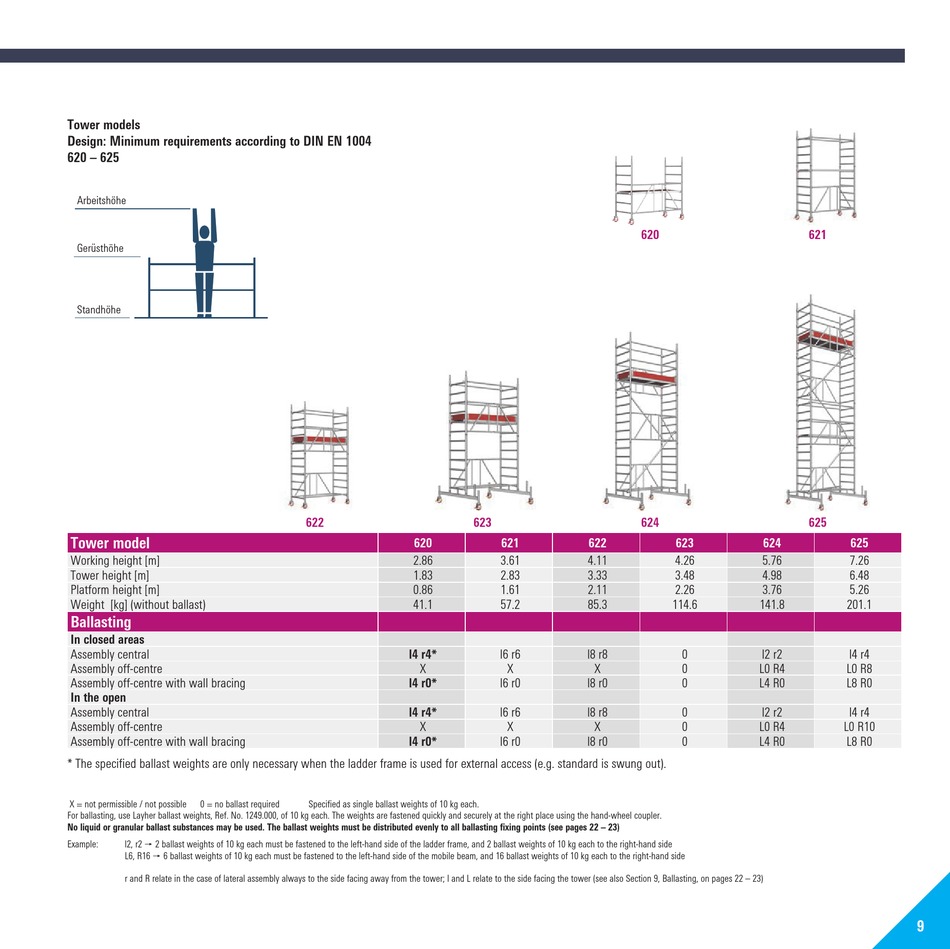

Layher ZIFA Aufbau- Und Verwendungsanleitung Seite 41

Tower models
Design: Minimum requirements according to DIN EN 1004
620 – 625
Arbeitshöhe
Gerüsthöhe
Standhöhe
Tower model
Working height [m]
Tower height [m]
Platform height [m]
Weight [kg] (without ballast)
Ballasting
In closed areas
Assembly central
Assembly off-centre
Assembly off-centre with wall bracing
In the open
Assembly central
Assembly off-centre
Assembly off-centre with wall bracing
* The specified ballast weights are only necessary when the ladder frame is used for external access (e.g. standard is swung out).
X = not permissible / not possible 0 = no ballast required
For ballasting, use Layher ballast weights, Ref. No. 1249.000, of 10 kg each. The weights are fastened quickly and securely at the right place using the hand-wheel coupler.
No liquid or granular ballast substances may be used. The ballast weights must be distributed evenly to all ballasting fixing points (see pages 22 – 23)
l2, r2  2 ballast weights of 10 kg each must be fastened to the left-hand side of the ladder frame, and 2 ballast weights of 10 kg each to the right-hand side
Example:
L6, R16  6 ballast weights of 10 kg each must be fastened to the left-hand side of the mobile beam, and 16 ballast weights of 10 kg each to the right-hand side
r and R relate in the case of lateral assembly always to the side facing away from the tower; l and L relate to the side facing the tower (see also Section 9, Ballasting, on pages 22 – 23)
622 623
620
2.86
1.83
0.86
41.1
l4 r4*
X
l4 r0*
l4 r4*
X
l4 r0*
Specified as single ballast weights of 10 kg each.
620
624
621 622 623
3.61 4.11 4.26
2.83 3.33 3.48
1.61 2.11 2.26
57.2 85.3 114.6
l6 r6 l8 r8
X X
l6 r0 l8 r0
l6 r6 l8 r8
X X
l6 r0 l8 r0
621
625
624 625
5.76 7.26
4.98 6.48
3.76 5.26
141.8 201.1
0 l2 r2 l4 r4
0 L0 R4 L0 R8
0 L4 R0 L8 R0
0 l2 r2 l4 r4
0 L0 R4 L0 R10
0 L4 R0 L8 R0
9
