Mode of operation of the Layher Advance Guardrail
(AGR)

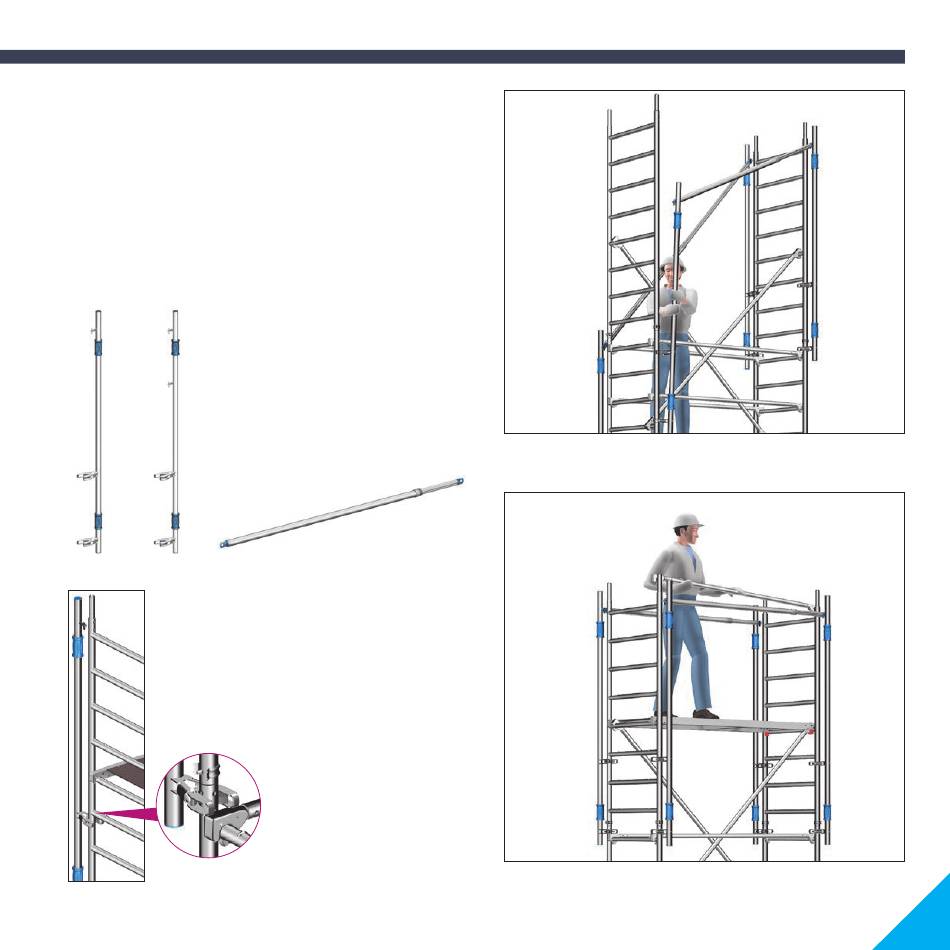

The Layher advance guardrail consists of two basic components –
advance guardrail post and telescoping guardrail. The advance guard-
rail post a) or b) must be used depending on local regulations.
a. Advance guardrail post with connection for
telescoping guardrail at 1 m height
a. Advance guardrail post with connection for
telescoping guardrail at 0.5 and 1 m heights
c. Telescoping guardrail made of aluminium
a b c
The post of the AGR rail can be fitted and dismantled
by an erector from two positions:
1. Fitting/dismantling from above
2. Fitting/dismantling from below
It must be ensured that both claws of the advance
guardrail snap in completely and that the telescoping
guardrail is attached using the tilting pins.
Fig. 4: Connection of advance guardrail post to ladder frame
To prevent any unintended slip-
page of the advance guardrail
post, a guardrail must be fitted at
the level of a snap-on claw.
Fig. 5: Moving the AGR upwards
Fig. 6: Safe fitting of the guardrails with AGR
