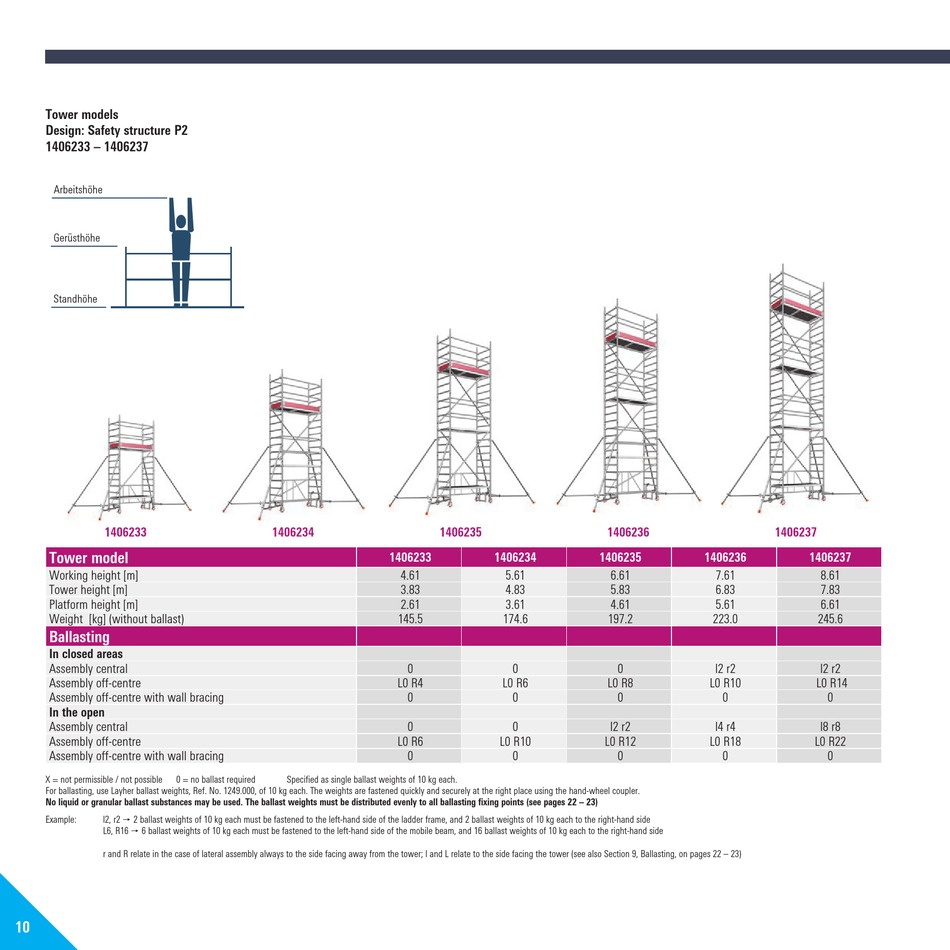

Tower models
Design: Safety structure P2
1406233 – 1406237
Arbeitshöhe
Gerüsthöhe
Standhöhe
1406233
Tower model
Working height [m]
Tower height [m]
Platform height [m]
Weight [kg] (without ballast)
Ballasting
In closed areas
Assembly central
Assembly off-centre
Assembly off-centre with wall bracing
In the open
Assembly central
Assembly off-centre
Assembly off-centre with wall bracing
X = not permissible / not possible 0 = no ballast required
For ballasting, use Layher ballast weights, Ref. No. 1249.000, of 10 kg each. The weights are fastened quickly and securely at the right place using the hand-wheel coupler.
No liquid or granular ballast substances may be used. The ballast weights must be distributed evenly to all ballasting fixing points (see pages 22 – 23)
l2, r2  2 ballast weights of 10 kg each must be fastened to the left-hand side of the ladder frame, and 2 ballast weights of 10 kg each to the right-hand side
Example:
L6, R16  6 ballast weights of 10 kg each must be fastened to the left-hand side of the mobile beam, and 16 ballast weights of 10 kg each to the right-hand side
r and R relate in the case of lateral assembly always to the side facing away from the tower; l and L relate to the side facing the tower (see also Section 9, Ballasting, on pages 22 – 23)
10
1406234 1406235
1406233
4.61
3.83
2.61
145.5
0
L0 R4
0
0
L0 R6
0
Specified as single ballast weights of 10 kg each.
1406236
1406234 1406235
5.61 6.61
4.83 5.83
3.61 4.61
174.6 197.2
0 0
L0 R6 L0 R8
0 0
0 l2 r2
L0 R10 L0 R12
0 0
1406237
1406236 1406237
7.61 8.61
6.83 7.83
5.61 6.61
223.0 245.6
l2 r2 l2 r2
L0 R10 L0 R14
0 0
l4 r4 l8 r8
L0 R18 L0 R22
0 0
