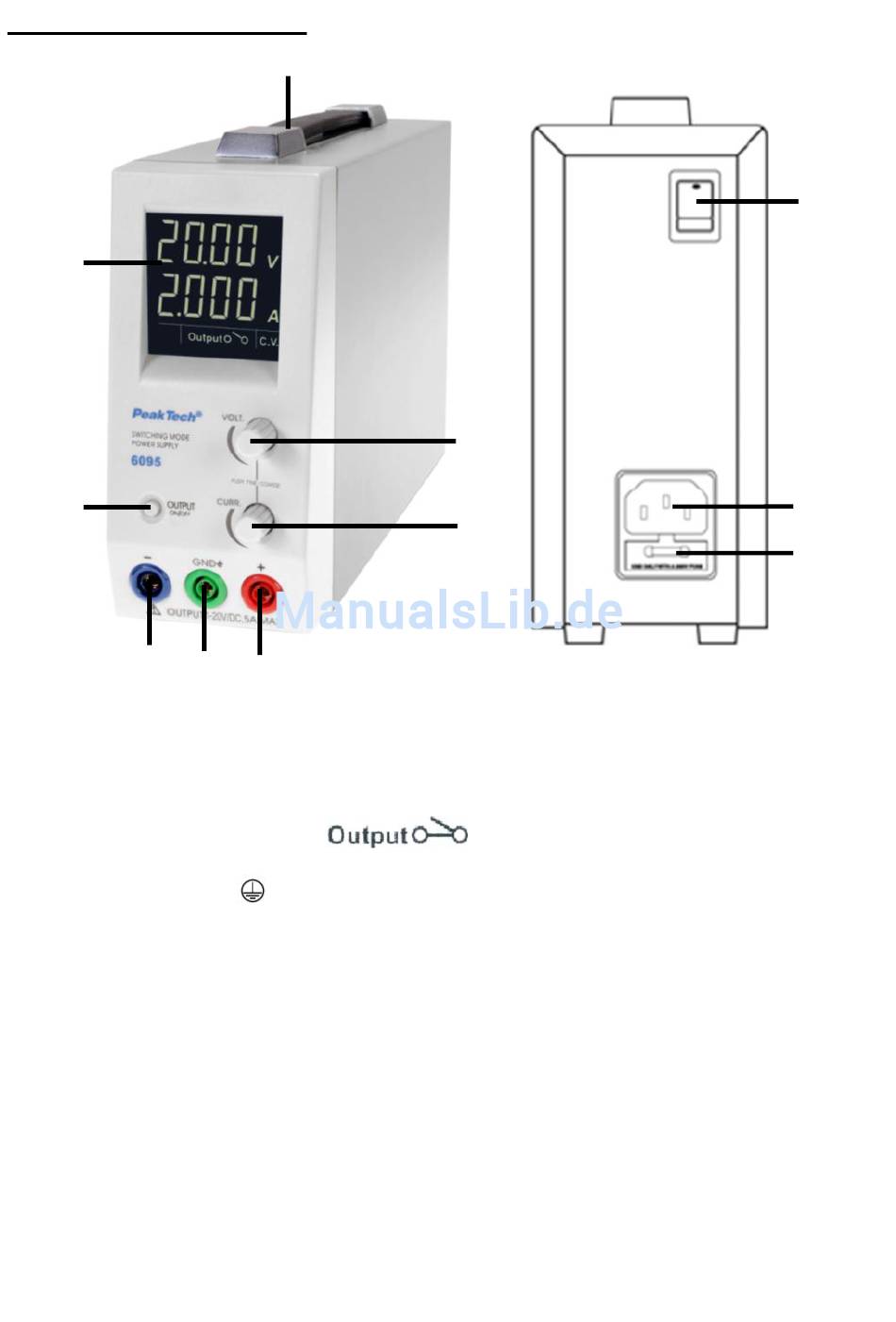

4. Controls and Indicators
2
3
4
1.
Handle grip
2.
LCD Display panel showing 4 digit voltage, current meter,(CV) constant voltage mode, (CC)
constant current mode, Output Terminal on/off state
3.
Output On/Off push button
4.
Output Terminal Negative (-) Black colour
5.
GND Terminal (
Chassis ground terminal, normally this is to be short to (+) or (-) as required by user.
6.
Output Terminal Positive (+) Red colour
7.
Output Voltage Tuning knob (By pressing the knob, toggle between coarse - and fine
adjustment.)
8.
Output Current Tuning knob. (By pressing the knob, toggle between coarse - and fine
adjustment.)
9.
Power Switch :
Turns the power supply on-off, when it is on the front display lights up
10. AC Input Socket
11. Concealed Fuse box (please open the cover to get to the fuse).
1
5
6
) Green colour
7
8
-11-
9
10
11
