InsertControl montieren
1
2

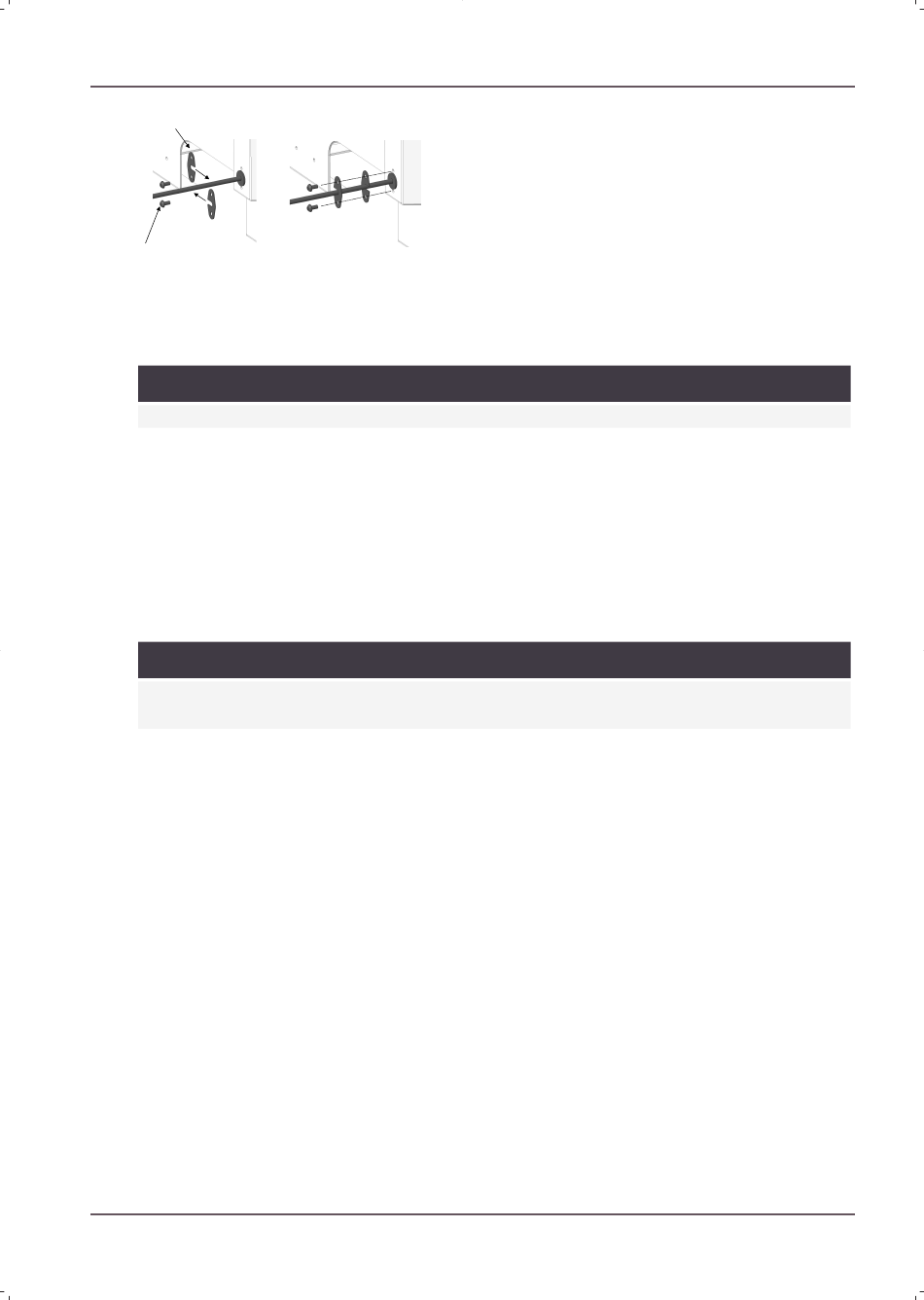

Fig. 18: Bowden cable flange
2.2

InsertControl function test

TIP
Before the fireplace insert is reassembled, a function test should be carried out.
• Make sure that all components are correctly assembled with one another
• Plug the power supply into the socket
• The controller now moves to the maximum positions of the motor (calibration run)
• Wait about 10 minutes after plugging in the power supply and check in that time that the air regu-
lator disc has completely closed and opened
• After the 10 minutes has finished the air regulator disc must be either completely opened or
closed (depending on the program set)
TIP
After a successful function test the fireplace insert can be completely reassembled.
Should the air regulator not have completely opened and closed after the 10 minutes has finished,
check the following:
• Check whether the installation kit has been installed according to the drawing
• Check whether the screw connections on the air regulator disc might have been excessively
tightened
• Check if the Bowden cable is possibly caught or blocked by a foreign body
• Undo the connection between Bowden cable and installation kit
• Check whether the installation kit can be easily adjusted without the Bowden cable
• Check the Bowden cable for contamination. If it is contaminated, clean the Bowden cable. DO
NOT LUBRICATE!
• Run the function test once more without the control unit being connected to the installation kit.
When doing so check whether the shaft of the Bowden cable reaches a distance of 38 mm.
EN
17) Slide the Bowden cable flange (1) over the Bowden
cable once each from left and right.
18) Then use the Taptite screws (2) to screw the two
flanges (1) on to the fireplace insert.
19) After screwing in, check whether the rubber plug is
firmly seated and correctly positioned all round. After
the fireplace insert has been installed, this area will no
longer be accessible!
