1 | General
1

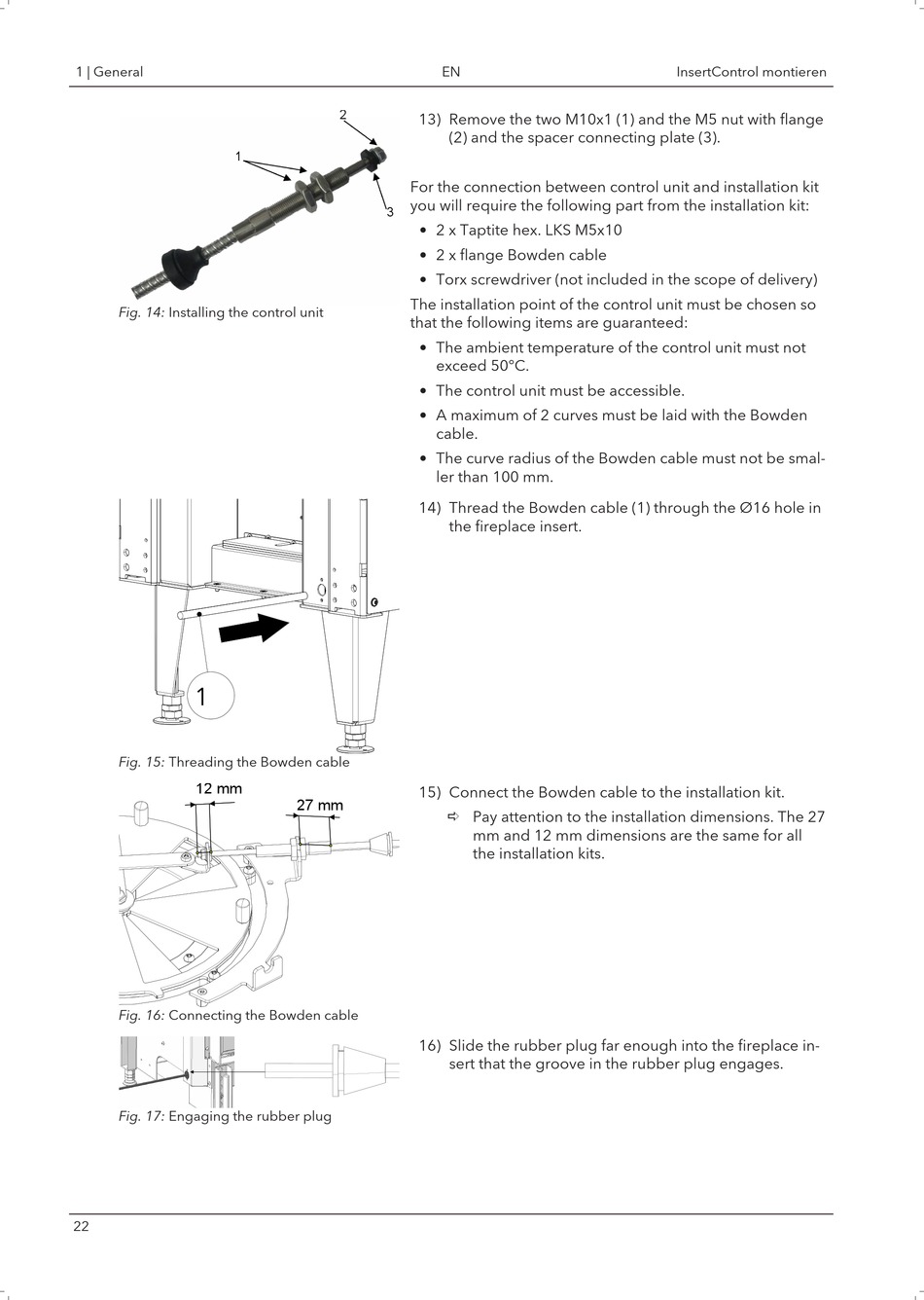

Fig. 14: Installing the control unit
1
Fig. 15: Threading the Bowden cable
12 mm
Fig. 16: Connecting the Bowden cable
Fig. 17: Engaging the rubber plug
22
EN
2
13) Remove the two M10x1 (1) and the M5 nut with flange
(2) and the spacer connecting plate (3).
For the connection between control unit and installation kit
you will require the following part from the installation kit:
3
• 2 x Taptite hex. LKS M5x10
• 2 x flange Bowden cable
• Torx screwdriver (not included in the scope of delivery)
The installation point of the control unit must be chosen so
that the following items are guaranteed:
• The ambient temperature of the control unit must not
exceed 50°C.
• The control unit must be accessible.
• A maximum of 2 curves must be laid with the Bowden
cable.
• The curve radius of the Bowden cable must not be smal-
ler than 100 mm.
14) Thread the Bowden cable (1) through the Ø16 hole in
the fireplace insert.
15) Connect the Bowden cable to the installation kit.
27 mm
ð Pay attention to the installation dimensions. The 27
16) Slide the rubber plug far enough into the fireplace in-
sert that the groove in the rubber plug engages.
mm and 12 mm dimensions are the same for all
the installation kits.
