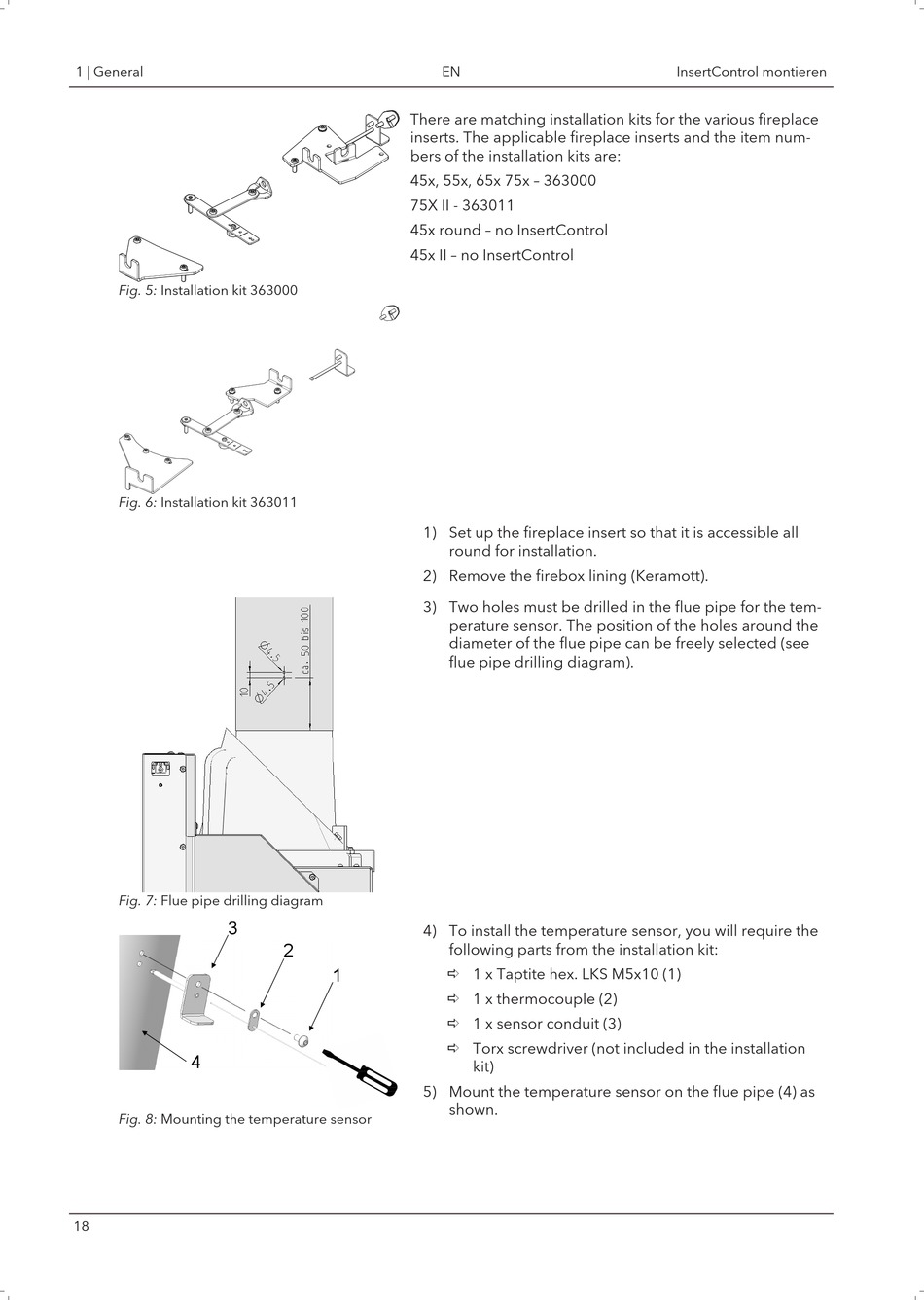

Austroflamm Insert Control Montageanleitung Seite 18

1 | General
Fig. 5: Installation kit 363000
Fig. 6: Installation kit 363011
Fig. 7: Flue pipe drilling diagram
3
4
Fig. 8: Mounting the temperature sensor
18
EN
There are matching installation kits for the various fireplace
inserts. The applicable fireplace inserts and the item num-
bers of the installation kits are:
45x, 55x, 65x 75x – 363000
75X II - 363011
45x round – no InsertControl
45x II – no InsertControl
1) Set up the fireplace insert so that it is accessible all
round for installation.
2) Remove the firebox lining (Keramott).
3) Two holes must be drilled in the flue pipe for the tem-
perature sensor. The position of the holes around the
diameter of the flue pipe can be freely selected (see
flue pipe drilling diagram).
4) To install the temperature sensor, you will require the
following parts from the installation kit:
2
ð 1 x Taptite hex. LKS M5x10 (1)
1
ð 1 x thermocouple (2)
ð 1 x sensor conduit (3)
ð Torx screwdriver (not included in the installation
5) Mount the temperature sensor on the flue pipe (4) as
shown.
kit)
InsertControl montieren
