InsertControl montieren
3

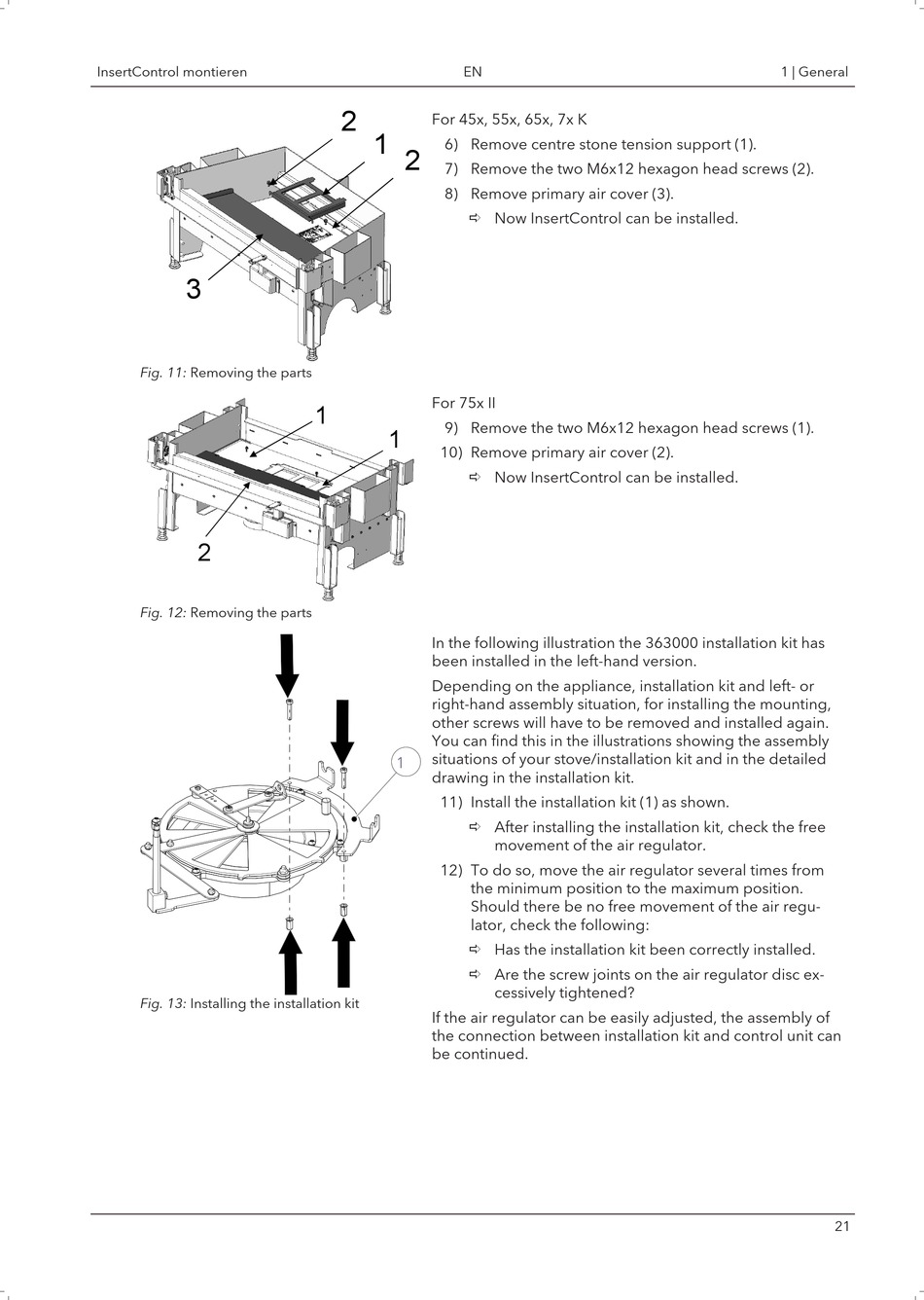

Fig. 11: Removing the parts
2
Fig. 12: Removing the parts
Fig. 13: Installing the installation kit
EN
2
For 45x, 55x, 65x, 7x K
1
6) Remove centre stone tension support (1).
2
7) Remove the two M6x12 hexagon head screws (2).
8) Remove primary air cover (3).
ð Now InsertControl can be installed.
For 75x II
1
9) Remove the two M6x12 hexagon head screws (1).
1
10) Remove primary air cover (2).
ð Now InsertControl can be installed.
In the following illustration the 363000 installation kit has
been installed in the left-hand version.
Depending on the appliance, installation kit and left- or
right-hand assembly situation, for installing the mounting,
other screws will have to be removed and installed again.
You can find this in the illustrations showing the assembly
situations of your stove/installation kit and in the detailed
1
drawing in the installation kit.
11) Install the installation kit (1) as shown.
ð After installing the installation kit, check the free
12) To do so, move the air regulator several times from
the minimum position to the maximum position.
Should there be no free movement of the air regu-
lator, check the following:
ð Has the installation kit been correctly installed.
ð Are the screw joints on the air regulator disc ex-
If the air regulator can be easily adjusted, the assembly of
the connection between installation kit and control unit can
be continued.
movement of the air regulator.
cessively tightened?
