A.1 Signaldiagramme

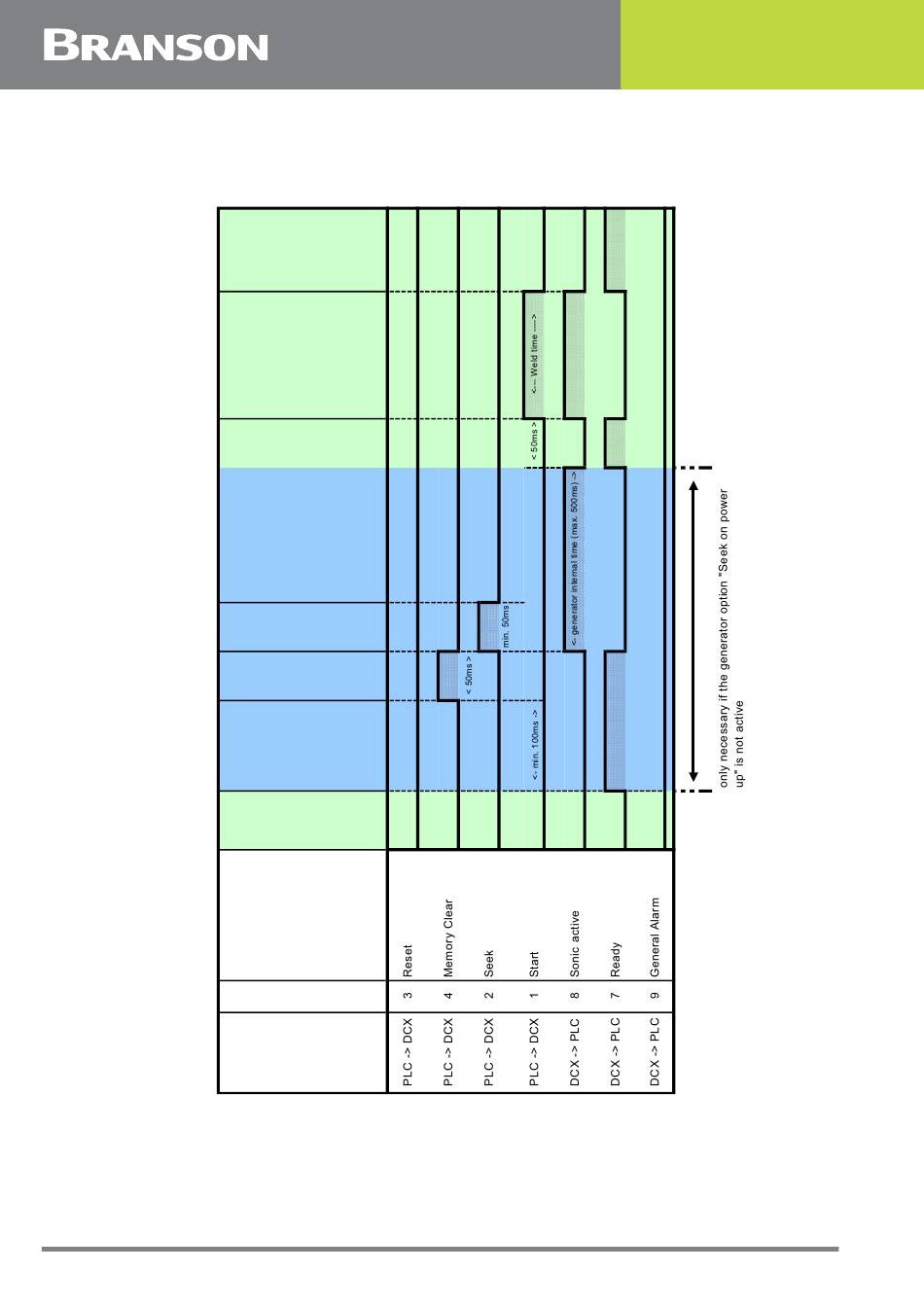

Abbildung A.1 Dauerbetrieb
130
Hold time (variabel, depending on
the application)
Signal length depending on the
necessary weld time
Frequency seek
Reset the frequency memory
inside the generator
Power ON (Digital Compact Pin
11,3)
Signal
Pin DCXxxx
Signal direction
4000855DE REV. 00
