16

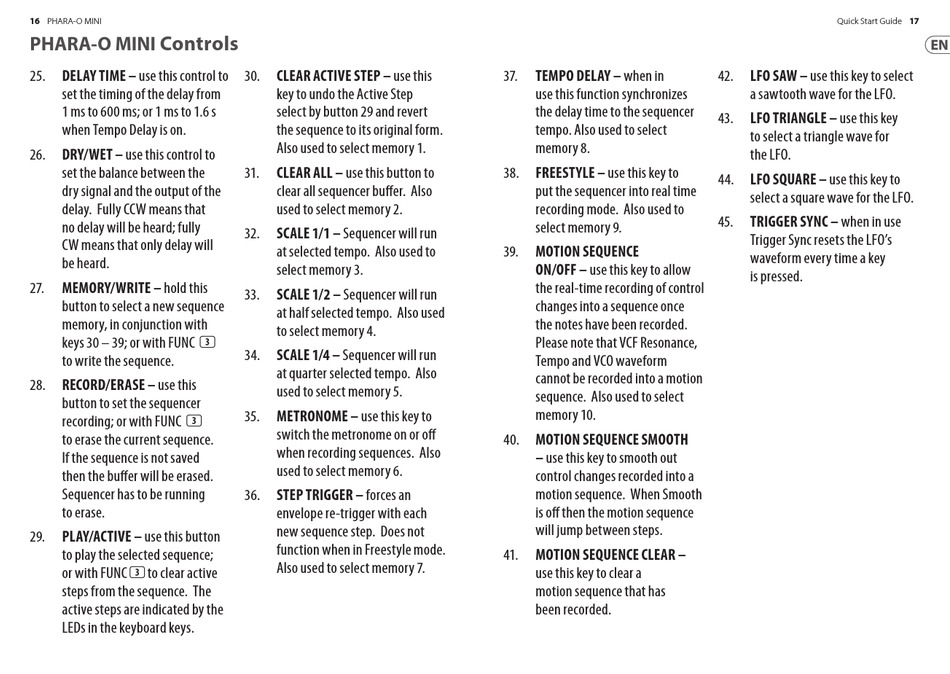

PHARA-O MINI
Controls
PHARA-O MINI
25. DELAY TIME – use this control to
set the timing of the delay from
1 ms to 600 ms; or 1 ms to 1.6 s
when Tempo Delay is on.
26. DRY/WET – use this control to
set the balance between the
dry signal and the output of the
delay. Fully CCW means that
no delay will be heard; fully
CW means that only delay will
be heard.
MEMORY/WRITE – hold this
27.
button to select a new sequence
memory, in conjunction with
keys 30 – 39; or with FUNC (3)
to write the sequence.
28. RECORD/ERASE – use this
button to set the sequencer
recording; or with FUNC (3)
to erase the current sequence.
If the sequence is not saved
then the buffer will be erased.
Sequencer has to be running
to erase.
29.
PLAY/ACTIVE – use this button
to play the selected sequence;
or with FUNC (3) to clear active
steps from the sequence. The
active steps are indicated by the
LEDs in the keyboard keys.
30. CLEAR ACTIVE STEP – use this
key to undo the Active Step
select by button 29 and revert
the sequence to its original form.
Also used to select memory 1.
CLEAR ALL – use this button to
31.
clear all sequencer buffer. Also
used to select memory 2.
32.
SCALE 1/1 – Sequencer will run
at selected tempo. Also used to
select memory 3.
33.
SCALE 1/2 – Sequencer will run
at half selected tempo. Also used
to select memory 4.
34. SCALE 1/4 – Sequencer will run
at quarter selected tempo. Also
used to select memory 5.
METRONOME – use this key to
35.
switch the metronome on or off
when recording sequences. Also
used to select memory 6.
36. STEP TRIGGER – forces an
envelope re‑trigger with each
new sequence step. Does not
function when in Freestyle mode.
Also used to select memory 7.
TEMPO DELAY – when in
37.
use this function synchronizes
the delay time to the sequencer
tempo. Also used to select
memory 8.
38. FREESTYLE – use this key to
put the sequencer into real time
recording mode. Also used to
select memory 9.
39.
MOTION SEQUENCE
ON/OFF – use this key to allow
the real‑time recording of control
changes into a sequence once
the notes have been recorded.
Please note that VCF Resonance,
Tempo and VCO waveform
cannot be recorded into a motion
sequence. Also used to select
memory 10.
40. MOTION SEQUENCE SMOOTH
– use this key to smooth out
control changes recorded into a
motion sequence. When Smooth
is off then the motion sequence
will jump between steps.
41.
MOTION SEQUENCE CLEAR –
use this key to clear a
motion sequence that has
been recorded.
Quick Start Guide
LFO SAW – use this key to select
42.
a sawtooth wave for the LFO.
43.
LFO TRIANGLE – use this key
to select a triangle wave for
the LFO.
44. LFO SQUARE – use this key to
select a square wave for the LFO.
TRIGGER SYNC – when in use
45.
Trigger Sync resets the LFO's
waveform every time a key
is pressed.
17
