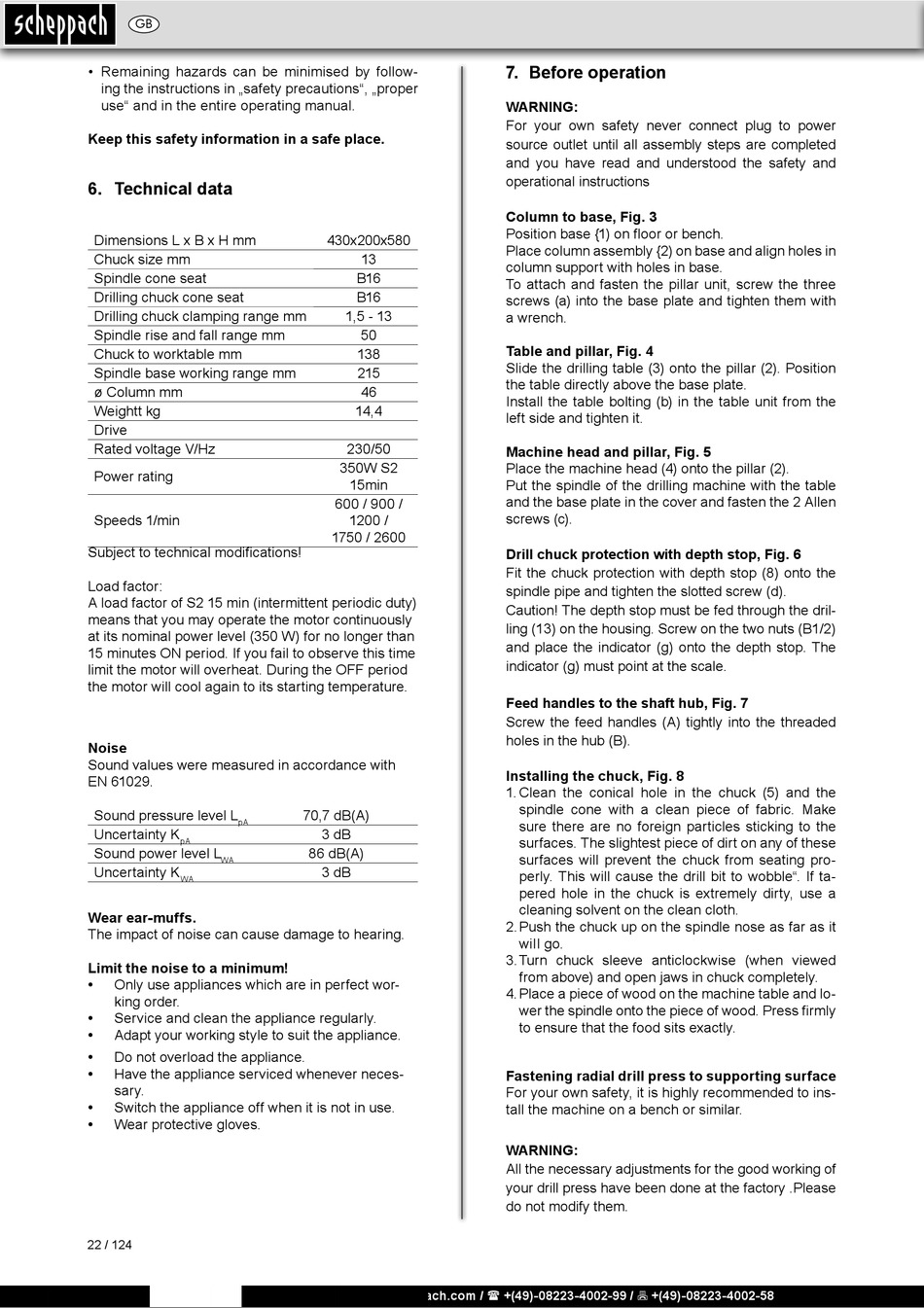

GB
• Remaining hazards can be minimised by follow-
ing the instructions in „safety precautions", „proper
use" and in the entire operating manual.
Keep this safety information in a safe place.

6. Technical data

Dimensions L x B x H mm
Chuck size mm
Spindle cone seat
Drilling chuck cone seat
Drilling chuck clamping range mm
Spindle rise and fall range mm
Chuck to worktable mm
Spindle base working range mm
ø Column mm
Weightt kg
Drive
Rated voltage V/Hz
Power rating
Speeds 1/min
Subject to technical modifications!
Load factor:
A load factor of S2 15 min (intermittent periodic duty)
means that you may operate the motor continuously
at its nominal power level (350 W) for no longer than
15 minutes ON period. If you fail to observe this time
limit the motor will overheat. During the OFF period
the motor will cool again to its starting temperature.
Noise
Sound values were measured in accordance with
EN 61029.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Limit the noise to a minimum!
• Only use appliances which are in perfect wor-
king order.
•
Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
•
Do not overload the appliance.
• Have the appliance serviced whenever neces-
sary.
• Switch the appliance off when it is not in use.
•
Wear protective gloves.
22 / 124
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
430x200x580
13
B16
B16
1,5 - 13
50
138
215
46
14,4
230/50
350W S2
15min
600 / 900 /
1200 /
1750 / 2600
70,7 dB(A)
3 dB
86 dB(A)
3 dB

7. Before operation

WARNING:
For your own safety never connect plug to power
source outlet until all assembly steps are completed
and you have read and understood the safety and
operational instructions
Column to base, Fig. 3
Position base {1) on floor or bench.
Place column assembly {2) on base and align holes in
column support with holes in base.
To attach and fasten the pillar unit, screw the three
screws (a) into the base plate and tighten them with
a wrench.
Table and pillar, Fig. 4
Slide the drilling table (3) onto the pillar (2). Position
the table directly above the base plate.
Install the table bolting (b) in the table unit from the
left side and tighten it.
Machine head and pillar, Fig. 5
Place the machine head (4) onto the pillar (2).
Put the spindle of the drilling machine with the table
and the base plate in the cover and fasten the 2 Allen
screws (c).
Drill chuck protection with depth stop, Fig. 6
Fit the chuck protection with depth stop (8) onto the
spindle pipe and tighten the slotted screw (d).
Caution! The depth stop must be fed through the dril-
ling (13) on the housing. Screw on the two nuts (B1/2)
and place the indicator (g) onto the depth stop. The
indicator (g) must point at the scale.
Feed handles to the shaft hub, Fig. 7
Screw the feed handles (A) tightly into the threaded
holes in the hub (B).
Installing the chuck, Fig. 8
1. Clean the conical hole in the chuck (5) and the
spindle cone with a clean piece of fabric. Make
sure there are no foreign particles sticking to the
surfaces. The slightest piece of dirt on any of these
surfaces will prevent the chuck from seating pro-
perly. This will cause the drill bit to wobble". If ta-
pered hole in the chuck is extremely dirty, use a
cleaning solvent on the clean cloth.
2. Push the chuck up on the spindle nose as far as it
wiII go.
3. Turn chuck sleeve anticlockwise (when viewed
from above) and open jaws in chuck completely.
4. Place a piece of wood on the machine table and lo-
wer the spindle onto the piece of wood. Press firmly
to ensure that the food sits exactly.
Fastening radial drill press to supporting surface
For your own safety, it is highly recommended to ins-
tall the machine on a bench or similar.
WARNING:
All the necessary adjustments for the good working of
your drill press have been done at the factory .Please
do not modify them.
