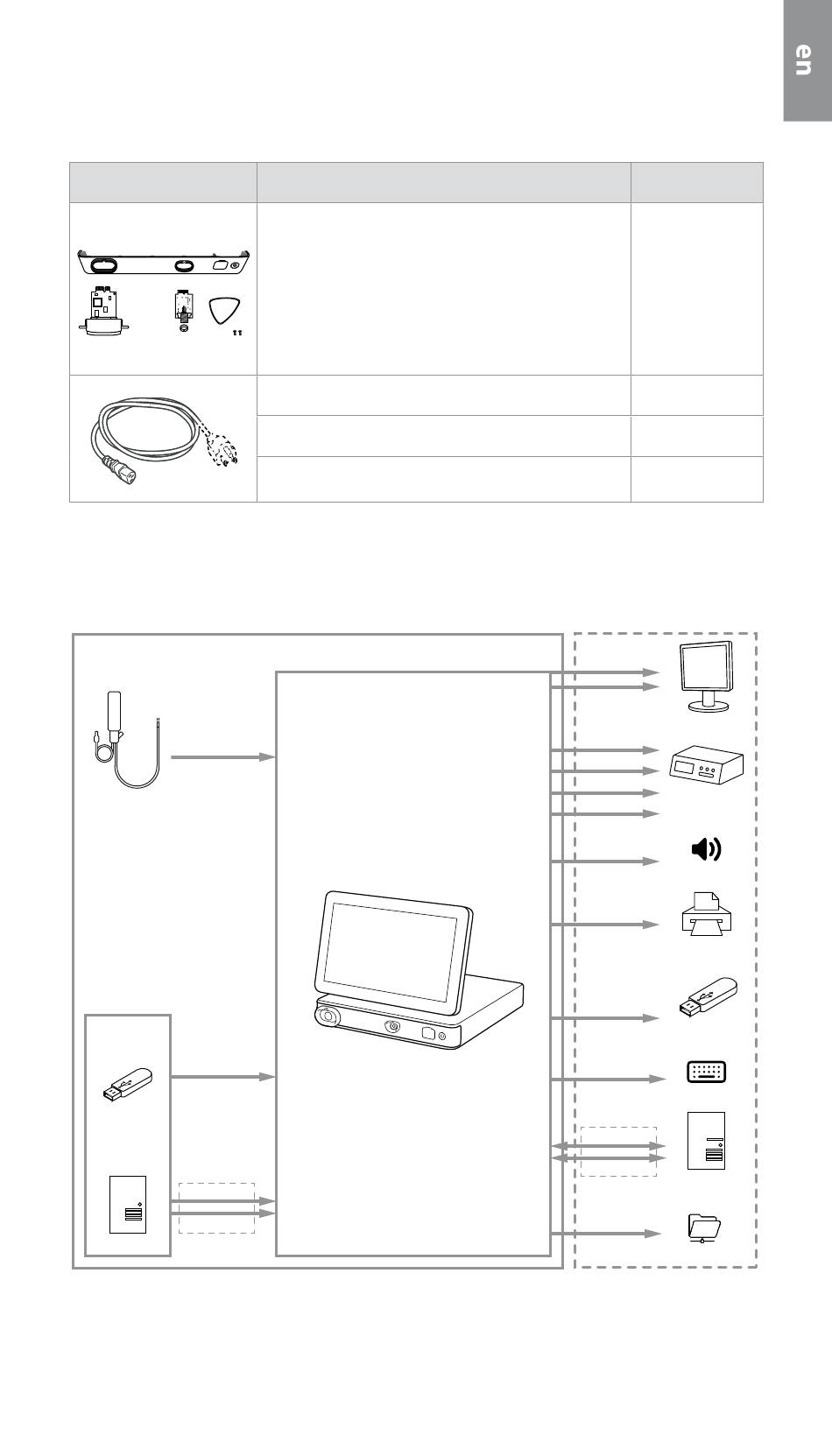

2.5. Spare parts
Spare parts are intended as replacements for components that are exposed to wear and tear
during the lifetime of the device. Consult the troubleshooting guide in chapter 18 for issues
that might require replacement of spare parts.
Spare parts
Thickness: 4 pt
2.6. System overview
A complete Ambu Imaging System is configured as illustrated in the figure below. The various
connections are described in more detail in chapter 12.
Image and Video
Streams
Visualization
Device
Software
Update/Upgrade
USB 3.0
USB Flash Drive
Wi-Fi
LAN
Server
Name
Ambu® aBox™ 2 – Visualization device
interface kit – Grey-Empty-Green
Contains:
One grey and one green visualization device
interface board (VDI), a front cover with a color
ring (grey and green), a plectrum tool, and two
screws for the VDI.
Power cable – B (US, JP)
Power cables – J (CH), K (DK), I (AUS)
Power cable – G (UK), E/F (EU, not DK, CH)
Ambu Imaging System
Ambu Displaying Unit
Item number
505000530
505000521
505000520
505000522
External Connection Options
* Refer to Chapter 12 for more information
DVI-D
3G-SDI
External Monitor
DVI-D
3G-SDI
3.5 mm Jack
External
D-SUB9
Imaging Recorder
USB 3.0 Type A
Audio Device
USB 3.0 Type A
Sony UP-DR80MD
Printer
USB 2.0/3.0
Recordings/
Log Files
USB 3.0 Type A
Keyboard
DICOM
Wi-Fi/LAN
PACS Server/
Worklist Server
SMB
Wi-Fi/LAN
Network Drive
