For greater security, it is recommended to protect access to the app by the locking options in
the phone's parameters.
In case of difficulties using the SYNSYS Smartphone app, contact your certified prosthetist.
A.

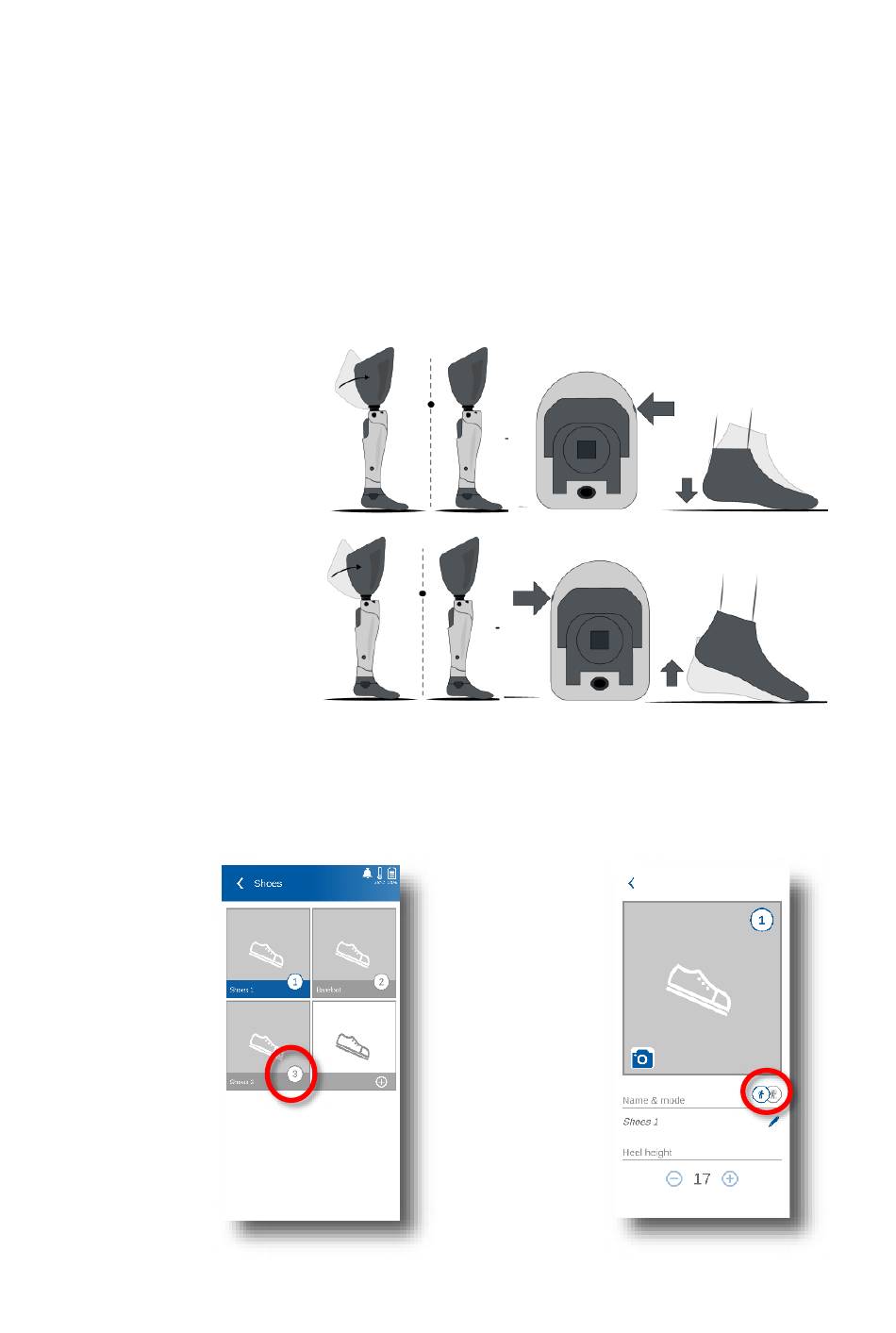

The ankle angle can be adjusted to the height of the shoe heel.
To make this setting, put on the prosthesis and the desired shoes, and then adjust the ankle
angle using the buttons.
Setting range: 0 to 5 cm. Precision: 1 long press ≈ 1 to 1.5 mm.
To reduce the heel height:
RIGHT-HAND button
Repeat until you obtain a
satisfactory angle.
To increase the heel height:
LEFT-HAND button
Take a few steps or press on
the heel so that the ankle
position adjusts properly.
Repeat until you obtain a
satisfactory angle.
Each button press is acknowledged by a single vibration. In case of doubt, you can restore the
initial setting with your reference shoes.
On the SYNSYS app, you will be able to:
Select the
shoe to wear,
or set the
ankle angle
to the heel
height of a
new shoe
Setting the heel height
Associate the
shoe photowith
the set heel
height, rename
it, and select
the associated
walking mode
EN - 7
