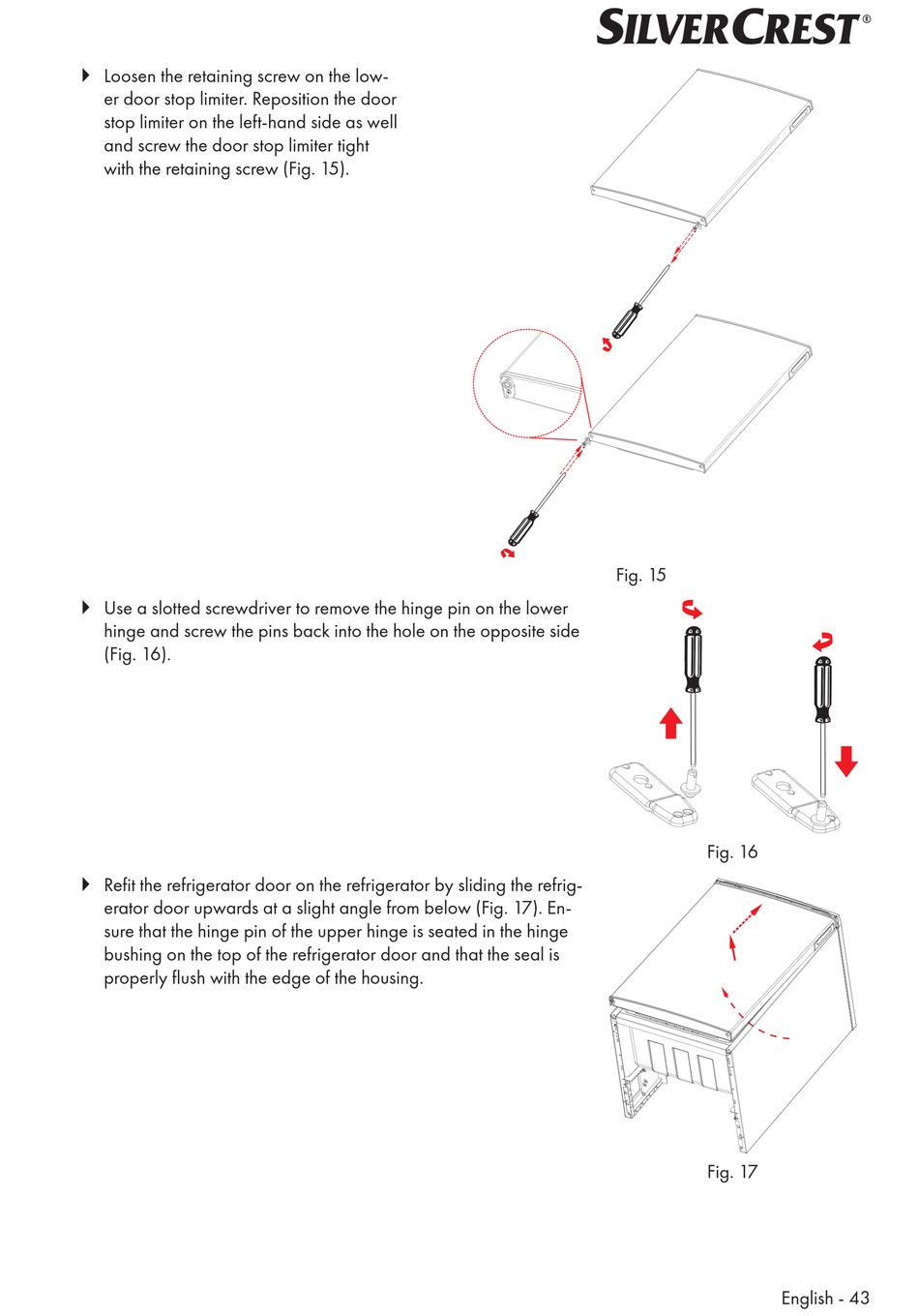

Silvercrest SKS 121 A1 Kurzanleitung Seite 43

 Loosen the retaining screw on the low-
er door stop limiter. Reposition the door
stop limiter on the left-hand side as well
and screw the door stop limiter tight
with the retaining screw (Fig. 15).
 Use a slotted screwdriver to remove the hinge pin on the lower
hinge and screw the pins back into the hole on the opposite side
(Fig. 16).
 Refit the refrigerator door on the refrigerator by sliding the refrig-
erator door upwards at a slight angle from below (Fig. 17). En-
sure that the hinge pin of the upper hinge is seated in the hinge
bushing on the top of the refrigerator door and that the seal is
properly flush with the edge of the housing.
Fig. 15
Fig. 16
Fig. 17
English - 43
