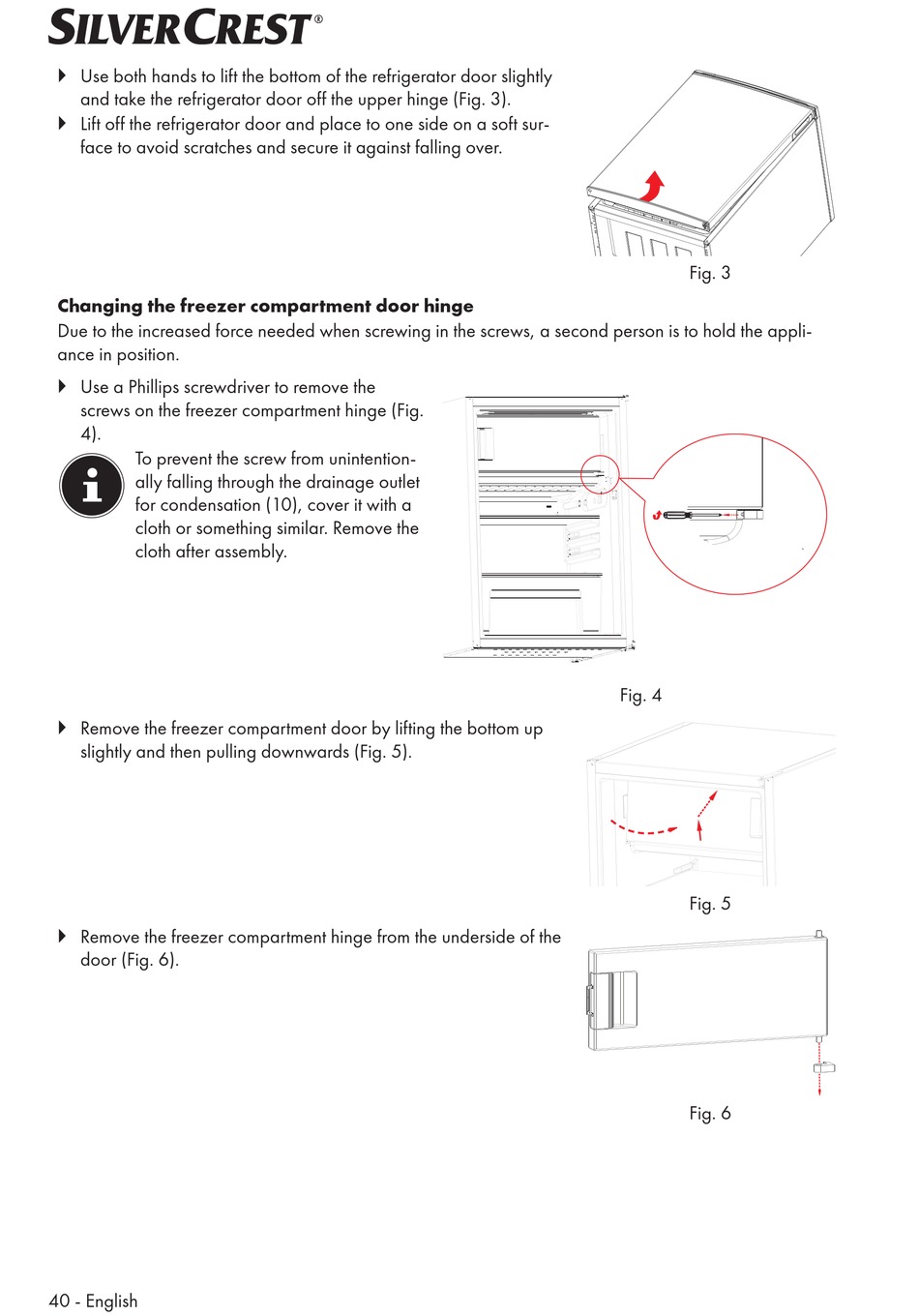

 Use both hands to lift the bottom of the refrigerator door slightly
and take the refrigerator door off the upper hinge (Fig. 3).
 Lift off the refrigerator door and place to one side on a soft sur-
face to avoid scratches and secure it against falling over.
Changing the freezer compartment door hinge
Due to the increased force needed when screwing in the screws, a second person is to hold the appli-
ance in position.
 Use a Phillips screwdriver to remove the
screws on the freezer compartment hinge (Fig.
4).
To prevent the screw from unintention-
ally falling through the drainage outlet
for condensation (10), cover it with a
cloth or something similar. Remove the
cloth after assembly.
 Remove the freezer compartment door by lifting the bottom up
slightly and then pulling downwards (Fig. 5).
 Remove the freezer compartment hinge from the underside of the
door (Fig. 6).
40 - English
Fig. 3
Fig. 4
Fig. 5
Fig. 6
