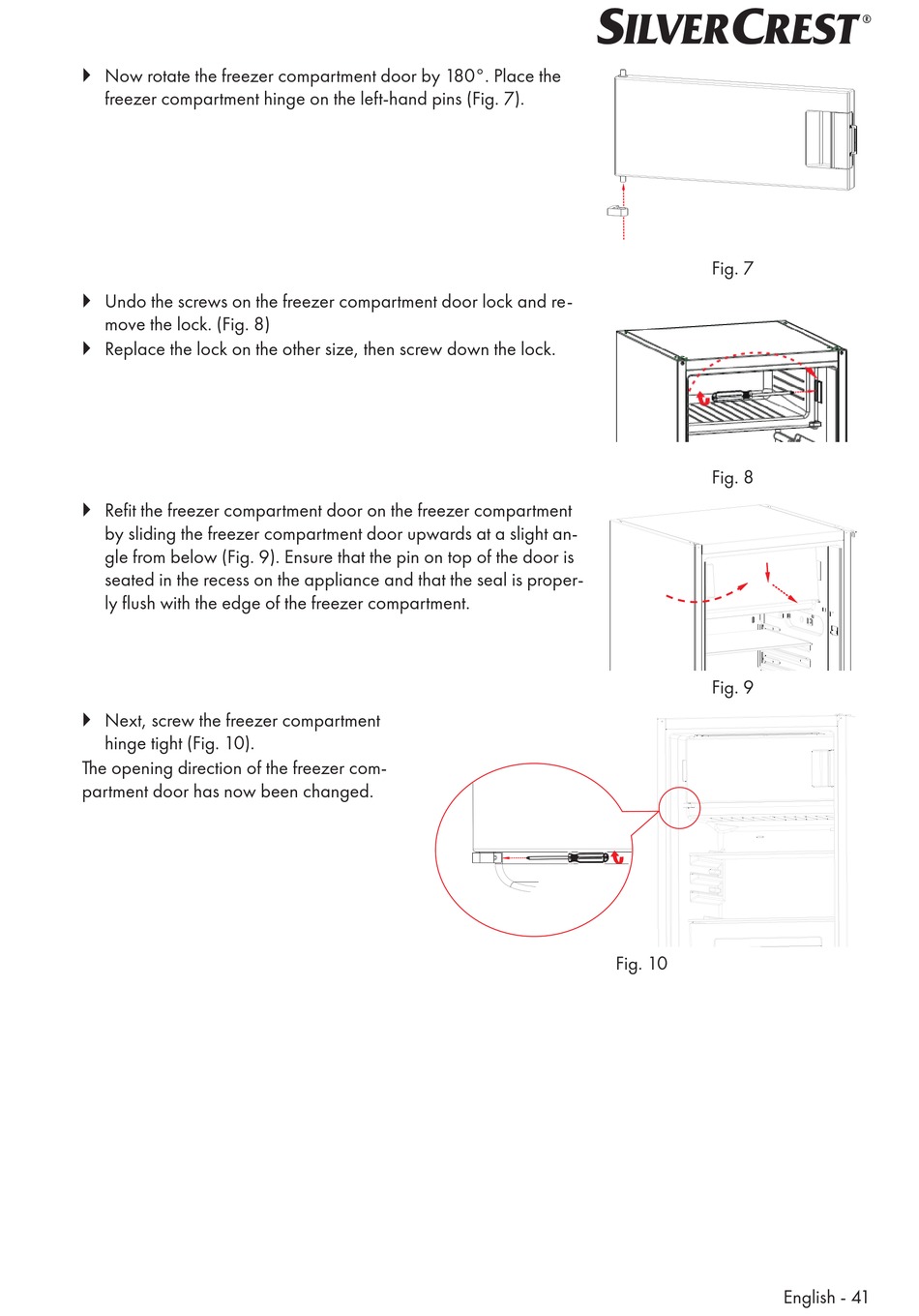

 Now rotate the freezer compartment door by 180°. Place the
freezer compartment hinge on the left-hand pins (Fig. 7).
 Undo the screws on the freezer compartment door lock and re-
move the lock. (Fig. 8)
 Replace the lock on the other size, then screw down the lock.
 Refit the freezer compartment door on the freezer compartment
by sliding the freezer compartment door upwards at a slight an-
gle from below (Fig. 9). Ensure that the pin on top of the door is
seated in the recess on the appliance and that the seal is proper-
ly flush with the edge of the freezer compartment.
 Next, screw the freezer compartment
hinge tight (Fig. 10).
The opening direction of the freezer com-
partment door has now been changed.
Fig. 7
Fig. 8
Fig. 9
Fig. 10
