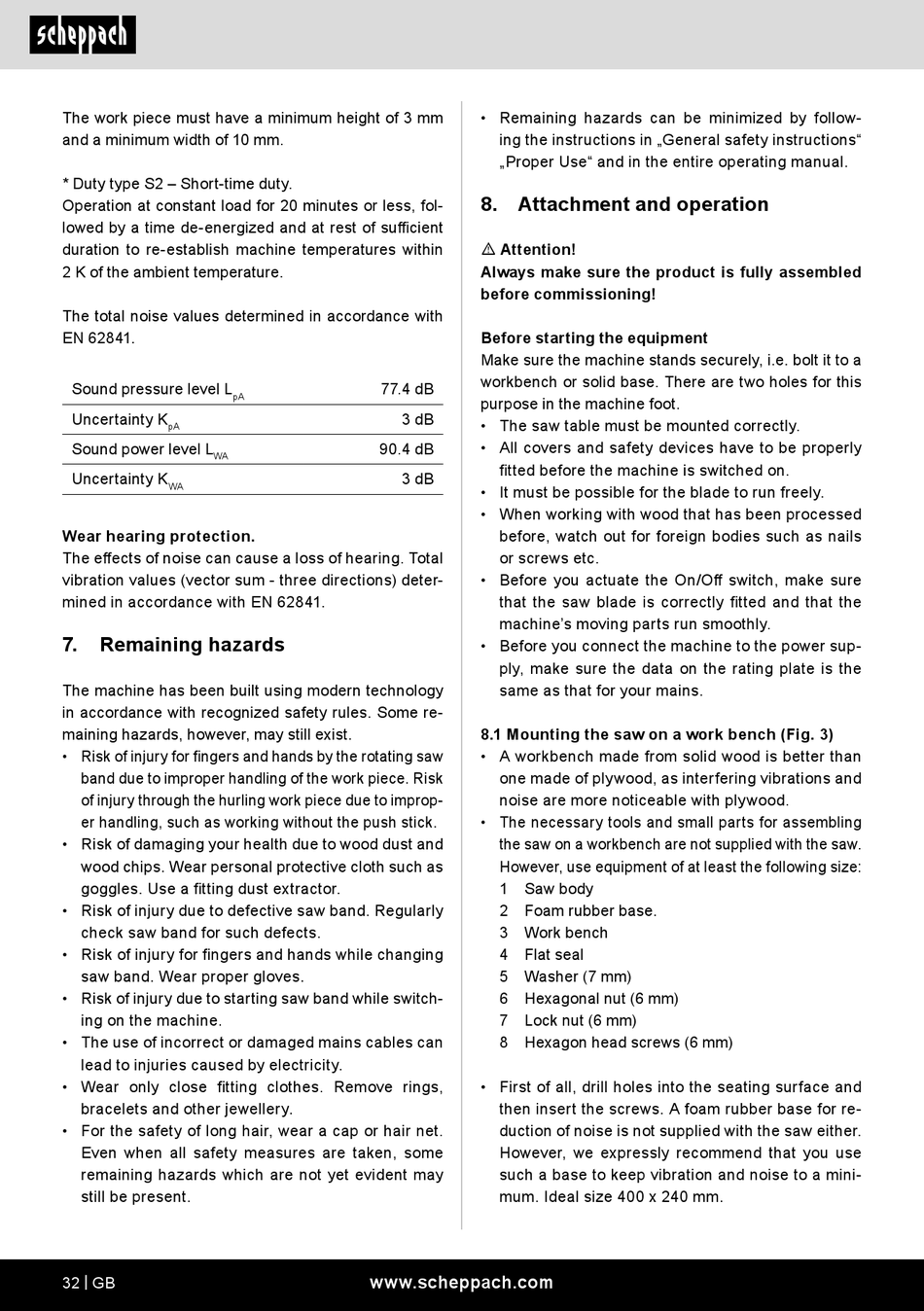

The work piece must have a minimum height of 3 mm
and a minimum width of 10 mm.
* Duty type S2 – Short-time duty.
Operation at constant load for 20 minutes or less, fol-
lowed by a time de-energized and at rest of sufficient
duration to re-establish machine temperatures within
2 K of the ambient temperature.
The total noise values determined in accordance with
EN 62841.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing. Total
vibration values (vector sum - three directions) deter-
mined in accordance with EN 62841.
7. Remaining hazards
The machine has been built using modern technology
in accordance with recognized safety rules. Some re-
maining hazards, however, may still exist.
• Risk of injury for fingers and hands by the rotating saw
band due to improper handling of the work piece. Risk
of injury through the hurling work piece due to improp-
er handling, such as working without the push stick.
• Risk of damaging your health due to wood dust and
wood chips. Wear personal protective cloth such as
goggles. Use a fitting dust extractor.
• Risk of injury due to defective saw band. Regularly
check saw band for such defects.
• Risk of injury for fingers and hands while changing
saw band. Wear proper gloves.
• Risk of injury due to starting saw band while switch-
ing on the machine.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Wear only close fitting clothes. Remove rings,
bracelets and other jewellery.
• For the safety of long hair, wear a cap or hair net.
Even when all safety measures are taken, some
remaining hazards which are not yet evident may
still be present.
32 | GB
• Remaining hazards can be minimized by follow-
ing the instructions in „General safety instructions"
„Proper Use" and in the entire operating manual.
8. Attachment and operation
m Attention!
Always make sure the product is fully assembled
before commissioning!
Before starting the equipment
Make sure the machine stands securely, i.e. bolt it to a
workbench or solid base. There are two holes for this
77.4 dB
purpose in the machine foot.
3 dB
• The saw table must be mounted correctly.
• All covers and safety devices have to be properly
90.4 dB
fitted before the machine is switched on.
3 dB
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws etc.
• Before you actuate the On/Off switch, make sure
that the saw blade is correctly fitted and that the
machine's moving parts run smoothly.
• Before you connect the machine to the power sup-
ply, make sure the data on the rating plate is the
same as that for your mains.
8.1 Mounting the saw on a work bench (Fig. 3)
• A workbench made from solid wood is better than
one made of plywood, as interfering vibrations and
noise are more noticeable with plywood.
• The necessary tools and small parts for assembling
the saw on a workbench are not supplied with the saw.
However, use equipment of at least the following size:
1 Saw body
2 Foam rubber base.
3 Work bench
4 Flat seal
5 Washer (7 mm)
6 Hexagonal nut (6 mm)
7 Lock nut (6 mm)
8 Hexagon head screws (6 mm)
• First of all, drill holes into the seating surface and
then insert the screws. A foam rubber base for re-
duction of noise is not supplied with the saw either.
However, we expressly recommend that you use
such a base to keep vibration and noise to a mini-
mum. Ideal size 400 x 240 mm.
