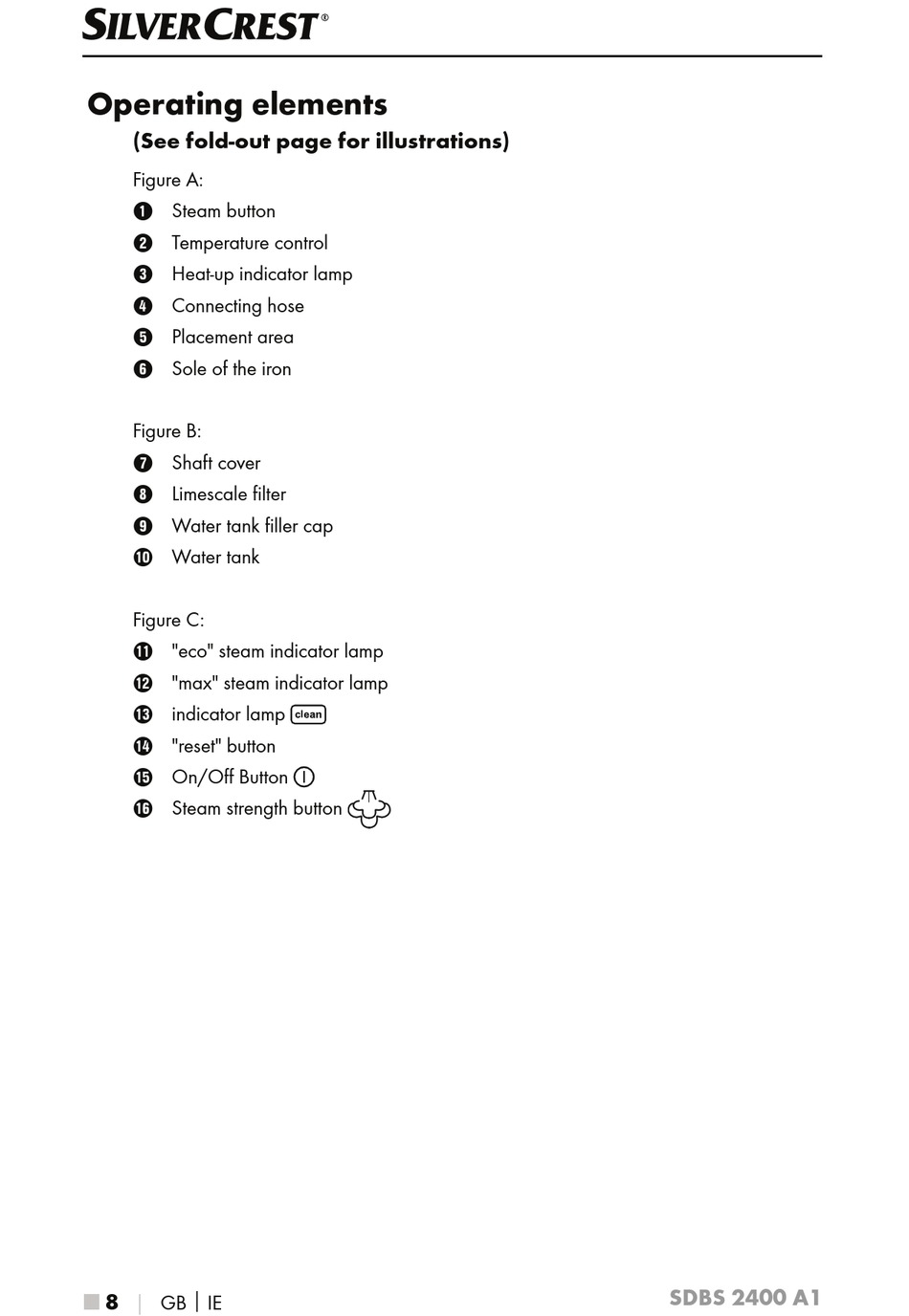

Silvercrest SDBS 2400 A1 Bedienungsanleitung Seite 11

Operating elements
(See fold-out page for illustrations)
Figure A:
1 Steam button
2 Temperature control
3 Heat-up indicator lamp
4 Connecting hose
5 Placement area
6 Sole of the iron
Figure B:
7 Shaft cover
8 Limescale filter
9 Water tank filler cap
0 Water tank
Figure C:
q "eco" steam indicator lamp
w "max" steam indicator lamp
e indicator lamp
r "reset" button
t On/Off Button
z Steam strength button
SDBS 2400 A1
■ 8 │ GB │ IE
