2 Notes on the documentation
2.1 Observing other applicable documents
▶
Always observe all the operating and installation instruc-
tions included with the system components.
2.2 Storing documents
▶
Pass these instructions and all other applicable docu-
ments on to the end user.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
VWZ MWT 150
3 Product description
3.1 Description of the product
The product is an intermediate heat exchanger for separat-
ing the heating circuit and heat pump circuit.
The heat pump circuit can be filled either with a glycol/water
mixture or with water. If the primary heating circuit (heat
pump circuit) is filled with a glycol/water mixture (brine flu-
id), the outdoor unit is then protected against freezing, even
if this is electrically switched off or in the case of a power cut.
0020166669_06 Installation instructions
0020143800

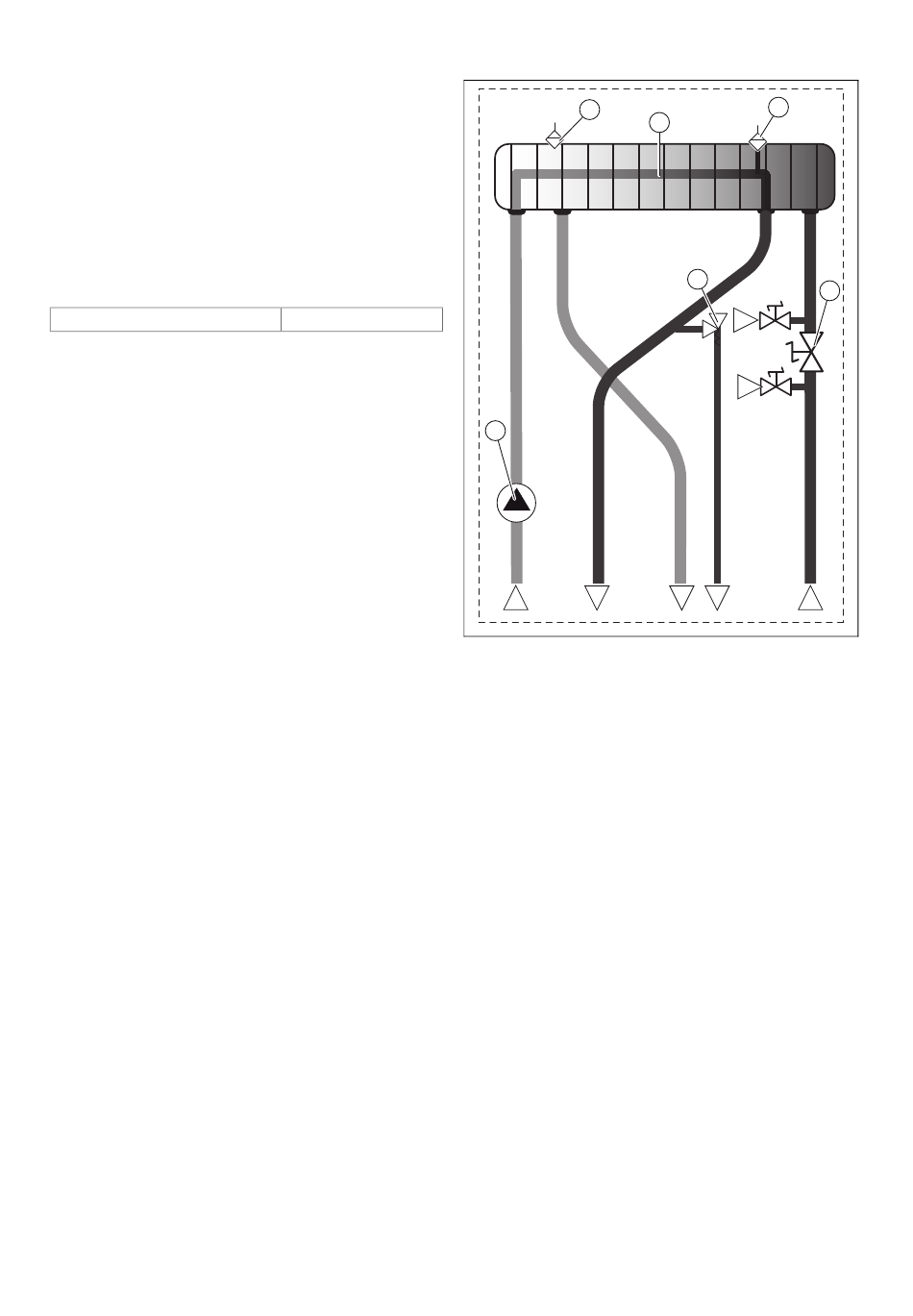

3.2 Product design
3.2.1 Design of the product
2
1
B
A
1 Pump
2 Drain valve for the heat
pump circuit
3 Plate heat exchanger
4 Drain valve for the
heating circuit
5 Expansion relief valve
6 Filling system
A Heating circuit return
from the installation
4
3
5
6
F
G
D
C
E
B Heating circuit flow to
the installation
C Heat pump circuit flow
to the heat pump
D Expansion relief valve
drain
E Heat pump circuit return
from the heat pump
F Filling tap/draining cock
G Filling tap/draining cock
