Tietzsch MultiSafe DSP 4 Bedienungsanleitung Seite 12

2

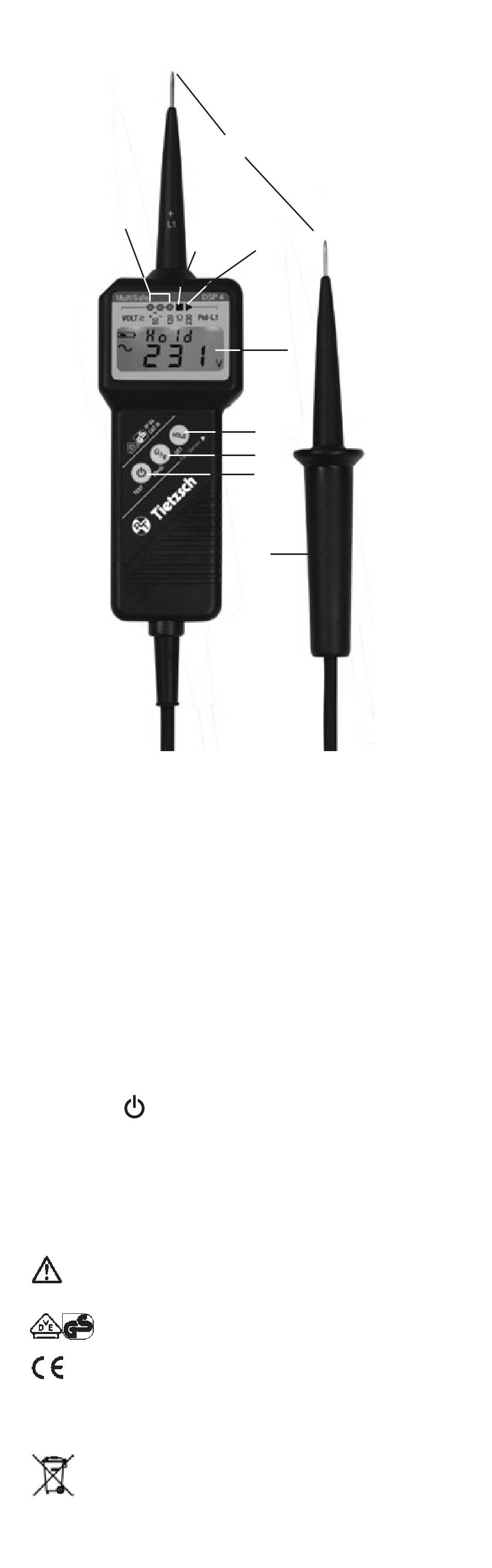

1 Test electrodes
2 LV indication (LEDs red) from 50 V / 120 V
indication of hazardous voltage
50 - 1000 V AC / 120 - 1500 V DC
3 LED „Ω" (green): lights up during resistance
measurements between 0 ... 5999 kΩ
(acoustic signal signalizes continuity)
4 LED „Pol-L1" : for phase + rotating field
5 Display (LCD)
6 Button HOLD: function to recording values
7 Button Ω/V: change-over switch for
resistance and voltage measurements and
zero balancing of the kΩ range
8 Button
functions test
9 Handgear
Symbols on the instrument
Attention! Observe user instructions!
Mark of approval from VDE test authority
Indicates EC conformity
ED
Duration time for voltage testing
WEEE 2002/96 EG:
This devices may not be disposed with the
domestic waste.
Please contact service@tietzsch.de regards the
return of old devices.
12
1
3
: switch on/off (manual) and
4
5
6
7
8
9
