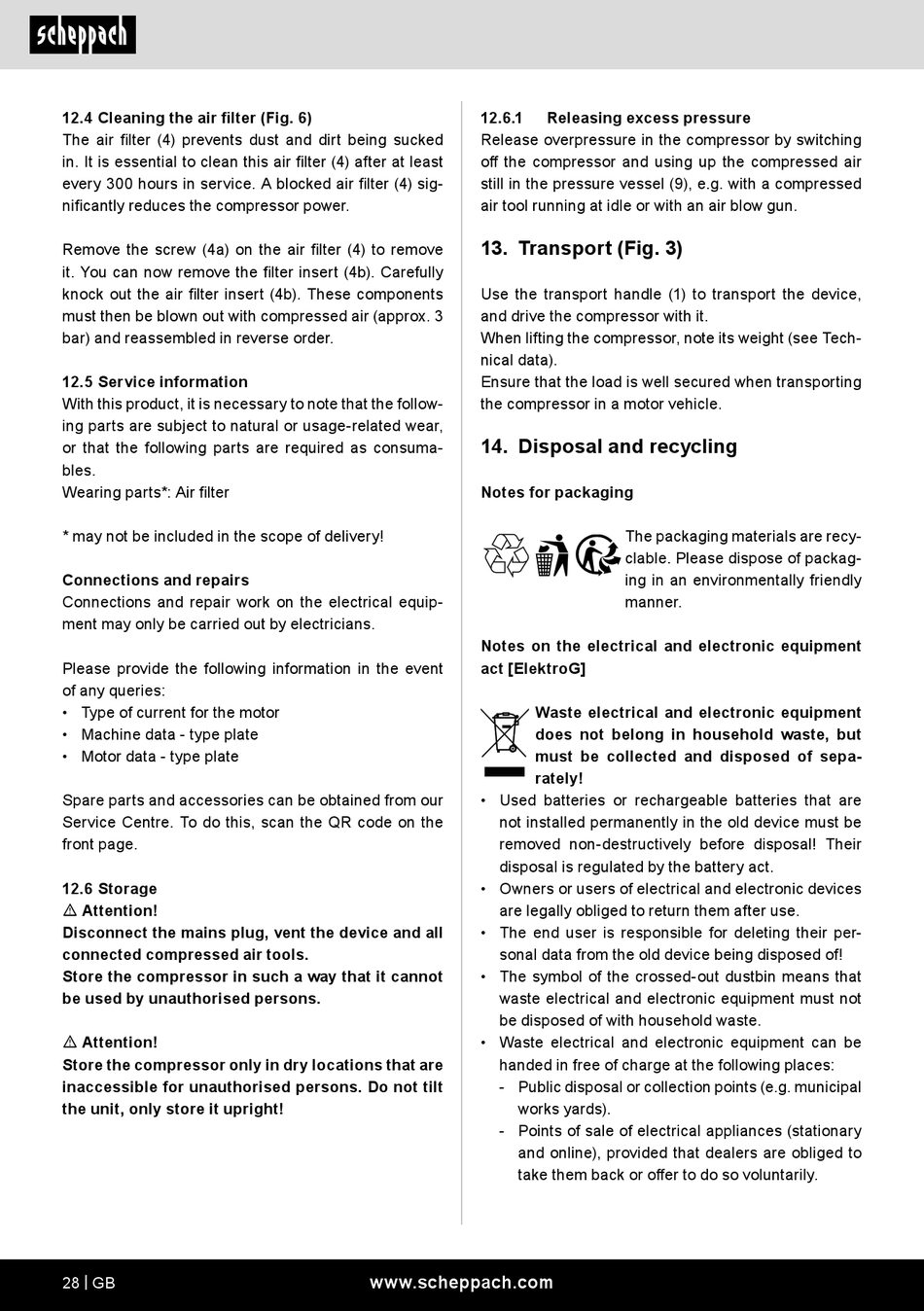

12.4 Cleaning the air filter (Fig. 6)
The air filter (4) prevents dust and dirt being sucked
in. It is essential to clean this air filter (4) after at least
every 300 hours in service. A blocked air filter (4) sig-
nificantly reduces the compressor power.
Remove the screw (4a) on the air filter (4) to remove
it. You can now remove the filter insert (4b). Carefully
knock out the air filter insert (4b). These components
must then be blown out with compressed air (approx. 3
bar) and reassembled in reverse order.
12.5 Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consuma-
bles.
Wearing parts*: Air filter
* may not be included in the scope of delivery!
Connections and repairs
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any queries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
12.6 Storage
m Attention!
Disconnect the mains plug, vent the device and all
connected compressed air tools.
Store the compressor in such a way that it cannot
be used by unauthorised persons.
m Attention!
Store the compressor only in dry locations that are
inaccessible for unauthorised persons. Do not tilt
the unit, only store it upright!
28 | GB
12.6.1
Release overpressure in the compressor by switching
off the compressor and using up the compressed air
still in the pressure vessel (9), e.g. with a compressed
air tool running at idle or with an air blow gun.
13. Transport (Fig. 3)
Use the transport handle (1) to transport the device,
and drive the compressor with it.
When lifting the compressor, note its weight (see Tech-
nical data).
Ensure that the load is well secured when transporting
the compressor in a motor vehicle.
14. Disposal and recycling
Notes for packaging
Notes on the electrical and electronic equipment
act [ElektroG]
Waste electrical and electronic equipment
does not belong in household waste, but
must be collected and disposed of sepa-
rately!
• Used batteries or rechargeable batteries that are
not installed permanently in the old device must be
removed non-destructively before disposal! Their
disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices
are legally obliged to return them after use.
• The end user is responsible for deleting their per-
sonal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that
waste electrical and electronic equipment must not
be disposed of with household waste.
• Waste electrical and electronic equipment can be
handed in free of charge at the following places:
- Public disposal or collection points (e.g. municipal
works yards).
- Points of sale of electrical appliances (stationary
and online), provided that dealers are obliged to
take them back or offer to do so voluntarily.
www.scheppach.com
Releasing excess pressure
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
