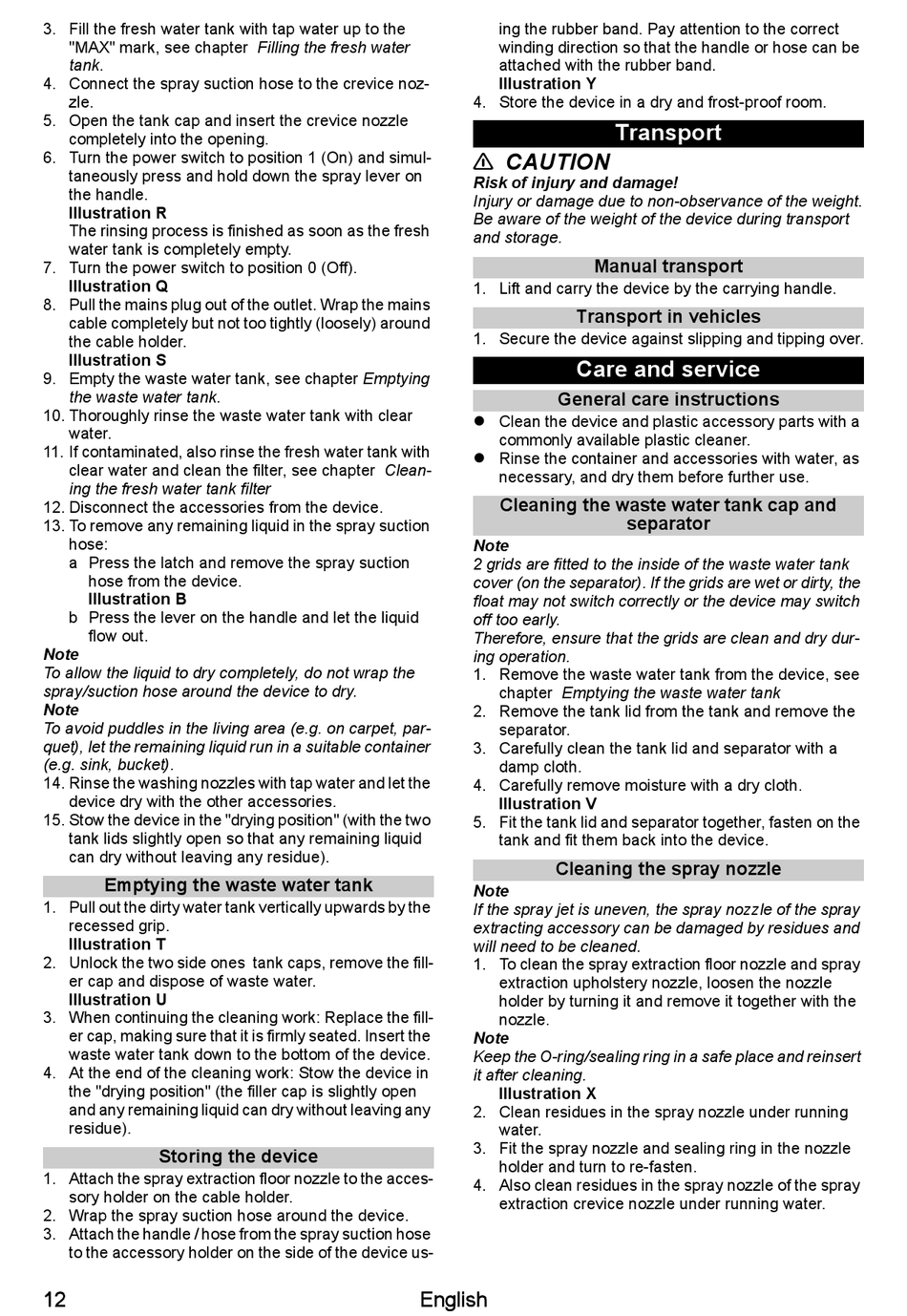

3. Fill the fresh water tank with tap water up to the
"MAX" mark, see chapter Filling the fresh water
tank.
4. Connect the spray suction hose to the crevice noz-
zle.
5. Open the tank cap and insert the crevice nozzle
completely into the opening.
6. Turn the power switch to position 1 (On) and simul-
taneously press and hold down the spray lever on
the handle.
Illustration R
The rinsing process is finished as soon as the fresh
water tank is completely empty.
7. Turn the power switch to position 0 (Off).
Illustration Q
8. Pull the mains plug out of the outlet. Wrap the mains
cable completely but not too tightly (loosely) around
the cable holder.
Illustration S
9. Empty the waste water tank, see chapter Emptying
the waste water tank.
10. Thoroughly rinse the waste water tank with clear
water.
11. If contaminated, also rinse the fresh water tank with
clear water and clean the filter, see chapter Clean-
ing the fresh water tank filter
12. Disconnect the accessories from the device.
13. To remove any remaining liquid in the spray suction
hose:
a Press the latch and remove the spray suction
hose from the device.
Illustration B
b Press the lever on the handle and let the liquid
flow out.
Note
To allow the liquid to dry completely, do not wrap the
spray/suction hose around the device to dry.
Note
To avoid puddles in the living area (e.g. on carpet, par-
quet), let the remaining liquid run in a suitable container
(e.g. sink, bucket).
14. Rinse the washing nozzles with tap water and let the
device dry with the other accessories.
15. Stow the device in the "drying position" (with the two
tank lids slightly open so that any remaining liquid
can dry without leaving any residue).
Emptying the waste water tank
1. Pull out the dirty water tank vertically upwards by the
recessed grip.
Illustration T
2. Unlock the two side ones tank caps, remove the fill-
er cap and dispose of waste water.
Illustration U
3. When continuing the cleaning work: Replace the fill-
er cap, making sure that it is firmly seated. Insert the
waste water tank down to the bottom of the device.
4. At the end of the cleaning work: Stow the device in
the "drying position" (the filler cap is slightly open
and any remaining liquid can dry without leaving any
residue).
Storing the device
1. Attach the spray extraction floor nozzle to the acces-
sory holder on the cable holder.
2. Wrap the spray suction hose around the device.
3. Attach the handle / hose from the spray suction hose
to the accessory holder on the side of the device us-
12
ing the rubber band. Pay attention to the correct
winding direction so that the handle or hose can be
attached with the rubber band.
Illustration Y
4. Store the device in a dry and frost-proof room.
CAUTION
Risk of injury and damage!
Injury or damage due to non-observance of the weight.
Be aware of the weight of the device during transport
and storage.
1. Lift and carry the device by the carrying handle.
Transport in vehicles
1. Secure the device against slipping and tipping over.
Care and service
General care instructions
Clean the device and plastic accessory parts with a
commonly available plastic cleaner.
Rinse the container and accessories with water, as
necessary, and dry them before further use.
Cleaning the waste water tank cap and
Note
2 grids are fitted to the inside of the waste water tank
cover (on the separator). If the grids are wet or dirty, the
float may not switch correctly or the device may switch
off too early.
Therefore, ensure that the grids are clean and dry dur-
ing operation.
1. Remove the waste water tank from the device, see
chapter Emptying the waste water tank
2. Remove the tank lid from the tank and remove the
separator.
3. Carefully clean the tank lid and separator with a
damp cloth.
4. Carefully remove moisture with a dry cloth.
Illustration V
5. Fit the tank lid and separator together, fasten on the
tank and fit them back into the device.
Cleaning the spray nozzle
Note
If the spray jet is uneven, the spray nozzle of the spray
extracting accessory can be damaged by residues and
will need to be cleaned.
1. To clean the spray extraction floor nozzle and spray
extraction upholstery nozzle, loosen the nozzle
holder by turning it and remove it together with the
nozzle.
Note
Keep the O-ring/sealing ring in a safe place and reinsert
it after cleaning.
Illustration X
2. Clean residues in the spray nozzle under running
water.
3. Fit the spray nozzle and sealing ring in the nozzle
holder and turn to re-fasten.
4. Also clean residues in the spray nozzle of the spray
extraction crevice nozzle under running water.
English
Transport
Manual transport
separator
