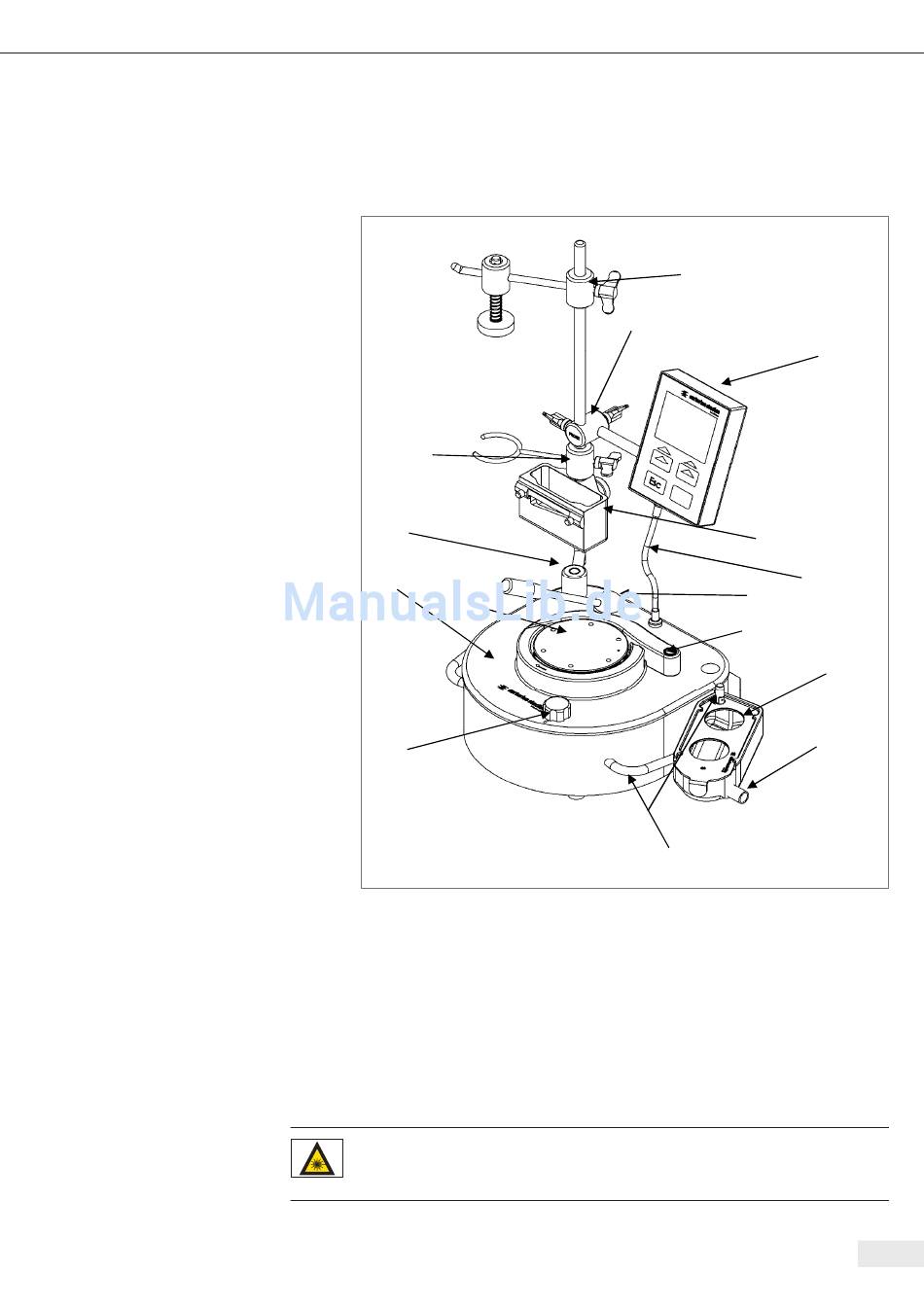

The Sterisart Universal pump (Model 16420, see Fig. 1) consists of pump housing (1)
with pump head (2), lever (3), bow (4) and handles (5). On the right handle, there is
also a bolt with a tilting lock for the draining container (14). The selecting knob (6)
is located on the front right. The stand (7), including holding ring for bottles (8),
fastening arm (9) and optional ampoule breaker (10), is located on the left side of the
pump. Additionally, the control unit (11) is also fastened to the stand via the control
unit clamp (12) and connected to the pump via the connecting cable plug (13)
(see Fig. 1).
Laser warning
The internal barcode scanner emits a laser beam.
