6.1.1 Manual Program

We will use the Manual program here as an example to explain all the information

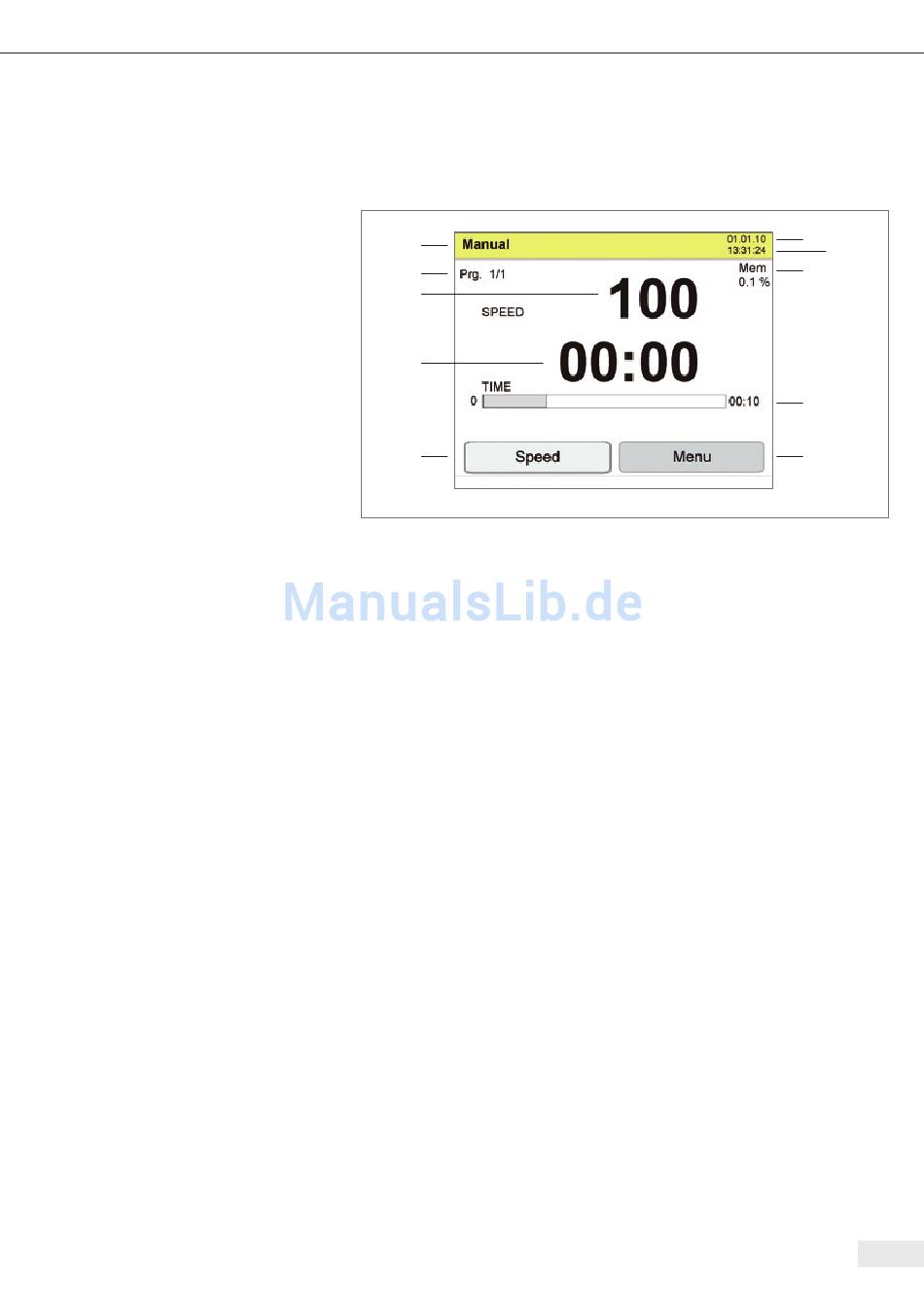

that can be displayed (Fig. 6):
1
2
5
7
9
Fig. 6
The following information is shown in the display (Fig. 6):
1: Operating mode (Manual)
2: Current program step (here: Prg. 1/1)
3: Date (dd:mm:yy)
4: Time 24h
5: Speed, factory-set
6: Level of memory capacity already used (Mem: indicates the amount of memory
used in %. Please note: 50 data records (see 6.1.2) take up approx. 1% of the
internal memory capacity).
7: Pump time (current) (shows how long the pump has been running)
8: Preprogrammed pump time (in the Manual operating mode, this setting is 0;
i.e., inactive so that this information is not shown on the display .
9: Soft key: current function (in this case: Speed). The white background indicates
that the value (Speed) can be changed (by turning the selecting knob). If the soft
key does not have a white background (Esc key pressed), the value cannot be
changed. Pressing the soft key (Speed) again returns it to a white background.
Pressing the soft key with a white background (current function: Speed) switches
the display to Duration. Here the preprogrammed pump time can be changed
(turning the selecting knob). If the soft key does not have a white background
(Esc key pressed), the value cannot be changed. Pressing the soft key (Duration)
again, returns it to a white background. Here you can return to the Speed display
by re-pressing the soft key (Duration).
Soft key: current function (in this case: Speed). The black background indicates that
you can change this value (Speed) (by turning the selecting knob). If the soft key
does not have a black background (Esc key pressed), the value displayed cannot be
changed. Pressing the soft key (Speed) again returns it to black background.
When you press the soft key with a black background (current function: Speed),
the display will change to Duration. Here you can change the preprogrammed
time by turning the selecting knob. If the soft key does not have a black back-
ground (Esc key pressed), the value cannot be changed. Pressing the soft key
(Duration) again, returns it to a black background. Here you can press the soft
key (Duration) one more time to return to the Speed display.
10: Soft key: Menu (for selecting the individual programs: Program Menu)
3
4
6
8
10
