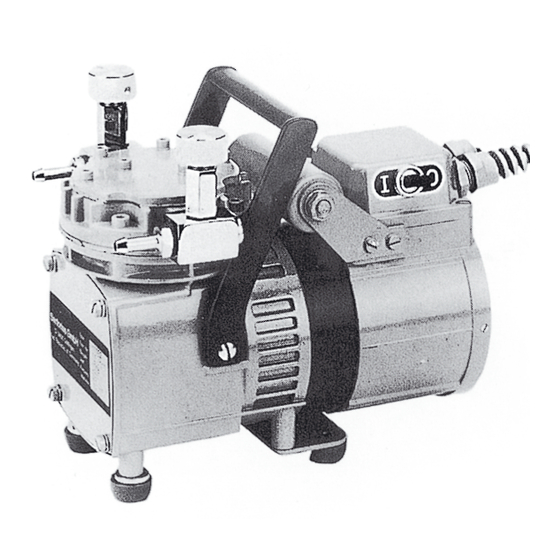

Teilebezeichnung List of Parts Bezeichnung in dem Foto Designation Shown in photo as Reduzierventile Nr. 1 Reducing valves No. 1 Tragegriff Nr. 2 Carrying handle No. 2 Netzschalter Nr. 3 Power switch No. 3 Lüfterhaube Nr. 4 End cover plate (for fan) No. 4 Gehäuse Nr.
Seite 3
Empfehlenswertes Zubehör Recommended Accessories Ersatzteile Spare Parts Die einköpfige, elektrisch betriebene The Sartorius Single-Headed Electric Membran-Vakuumpumpe bietet hohe Diaphragm Vacuum Pump is built to last, Dauerleistung bei leisem Lauf. Sie ist mit runs quietly and provides a high output. The einem Tragegriff, Gummifüßen,...
3. Wartung 3. Maintenance Die Membran-Vakuumpumpe bedarf keiner The Sartorius Diaphragm Vacuum Pump regelmäßigen Wartung. Die Kugel lager sind does not require regular maintenance. The überdimensioniert und die Füllung mit ball bearings are oversized and sufficiently einem Spezialfett reicht aus für die lubricated with a special grease to last Gesamt lebensdauer des Gerätes.
Seite 6
3.2 Auswechseln der Ventilfedern. 3.2 Changing the Reed Valves I. Untere Ventilfeder I. Lower Valve 3.2.1 Führen Sie die Demontage des 3.2.1 Remove the diaphragm head as Membran kopfes wie unter 3.1.1 und 3.1.2 described in steps 3.1.1 and 3.1.2. beschrieben durch.
4. Empfehlenswertes Zubehör 4. Recommended Accessories 16610 Woulff’sche Flasche, 500 ml 16610 Woulff’s bottle, 500 ml 16623 Gummivakuumschlauch (1 m) 16623 Rubber vacuum hose (1 m) 5. Ersatzteile 5. Spare Parts 6986105 6986105 Ersatzteilkit, bestehend aus: Spare parts kit consisting of: –...
Seite 9
Sartorius Lab Instruments GmbH & Co. KG Weender Landstrasse 94–108 37075 Goettingen, Germany Phone: +49.551.308.0 Fax: +49.551.308.3289 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
