2
ø10
ø5

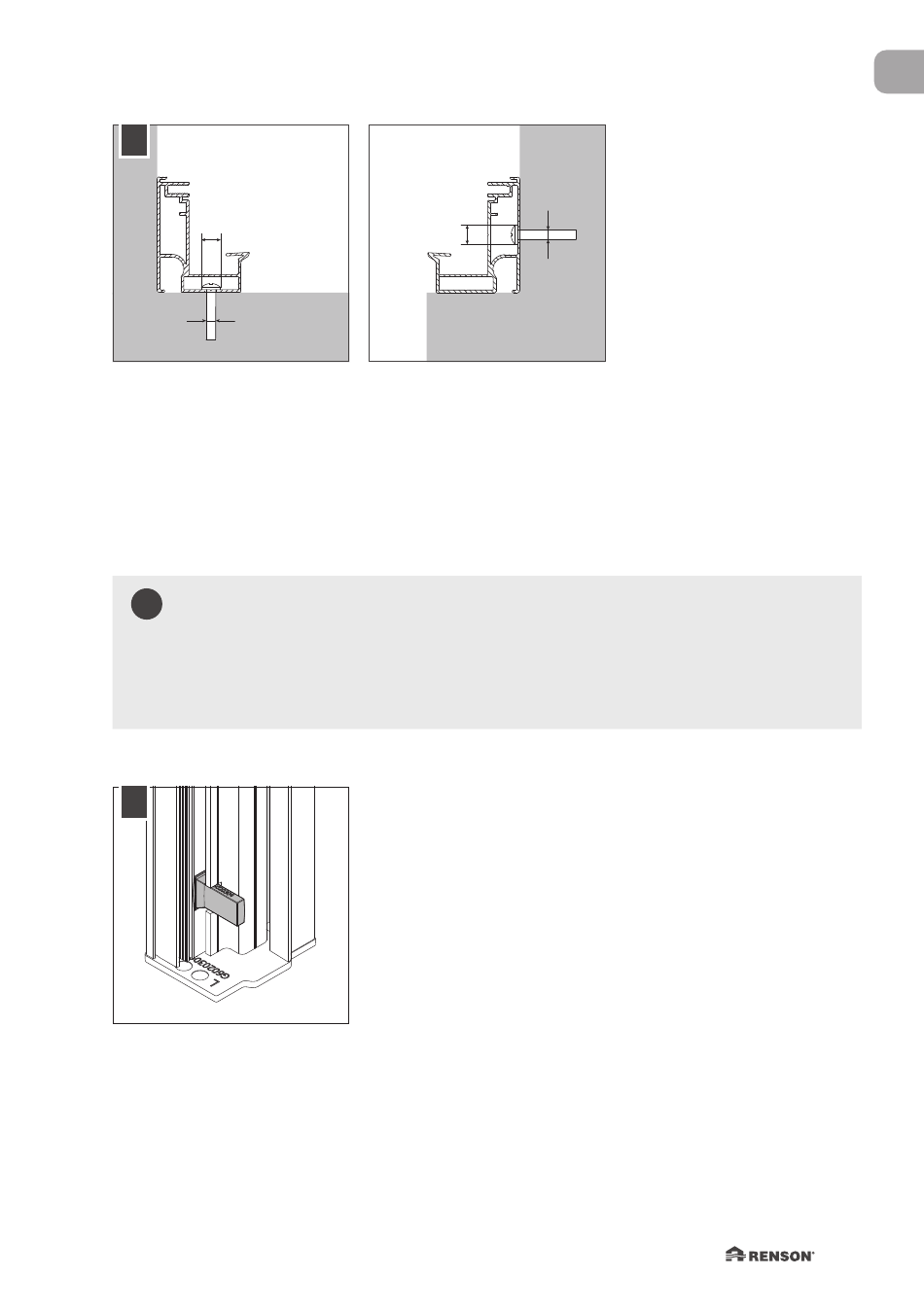

Mounting of side guiding
channel 'S' through the
backside (ø5mm)
The side guiding channel is pre-drilled as standard (ø10 mm).
There are 2 placement options for the side guiding channel: through the backside or
sideways.
The ø10 mm borehole is already pre-drilled; the ø5 mm borehole has yet to be drilled.
!
ATTENTION
The holes are pre-drilled sequential over a distance of 250mm.
Allow a maximum distance of 750 mm between sequential holes.
Fix the screws and make sure that the screw head is integrated (flush-mounted)
to prevent obstruction of the inner rail
3
Respect the position of the
side guiding channel. The
(black) clicker is at the
➃
bottom of the side guiding
channel.
ø10
Mounting of side guiding
channel sideways 'S'
(ø5mm)
.
➁
Fixscreen
ø5
Go EN
®
