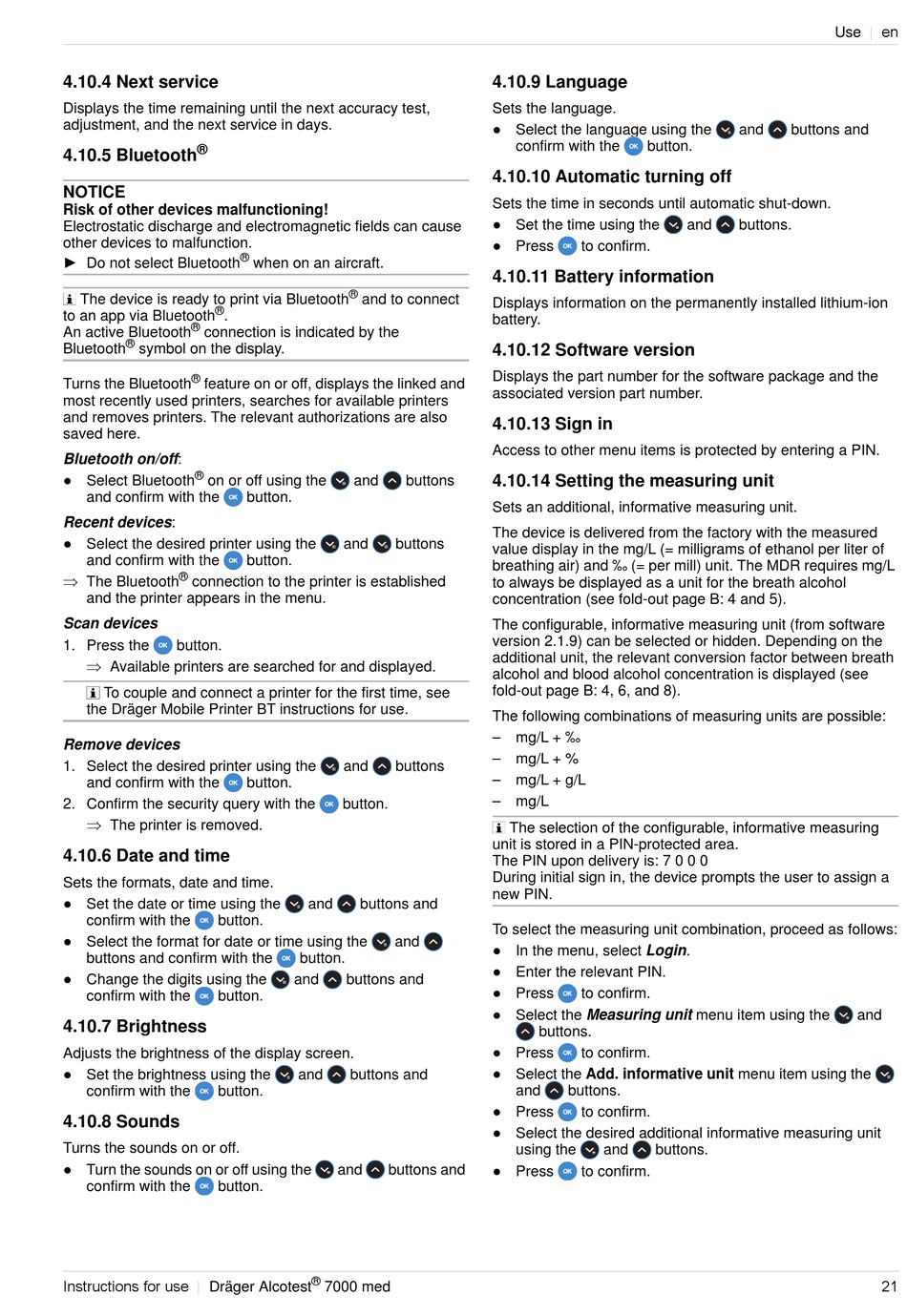

4.10.4 Next service
Displays the time remaining until the next accuracy test,
adjustment, and the next service in days.
®
4.10.5 Bluetooth
NOTICE
Risk of other devices malfunctioning!
Electrostatic discharge and electromagnetic fields can cause
other devices to malfunction.
► Do not select Bluetooth
The device is ready to print via Bluetooth
®
to an app via Bluetooth
.
®
An active Bluetooth
connection is indicated by the
®
Bluetooth
symbol on the display.
®
Turns the Bluetooth
feature on or off, displays the linked and
most recently used printers, searches for available printers
and removes printers. The relevant authorizations are also
saved here.
Bluetooth on/off:
®
● Select Bluetooth
on or off using the
and confirm with the
Recent devices:
● Select the desired printer using the
and confirm with the
The Bluetooth
®
connection to the printer is established
and the printer appears in the menu.
Scan devices
1. Press the
button.
Available printers are searched for and displayed.
To couple and connect a printer for the first time, see
the Dräger Mobile Printer BT instructions for use.
Remove devices
1. Select the desired printer using the
and confirm with the
2. Confirm the security query with the
The printer is removed.
4.10.6 Date and time
Sets the formats, date and time.
● Set the date or time using the
confirm with the
button.
● Select the format for date or time using the
buttons and confirm with the
● Change the digits using the
confirm with the
button.
4.10.7 Brightness
Adjusts the brightness of the display screen.
● Set the brightness using the
confirm with the
button.
4.10.8 Sounds
Turns the sounds on or off.
● Turn the sounds on or off using the
confirm with the
button.
Instructions for use
|
Dräger Alcotest
®
when on an aircraft.
®
and to connect
and
buttons
button.
and
buttons
button.
and
buttons
button.
button.
and
buttons and
and
button.
and
buttons and
and
buttons and
and
buttons and
®
7000 med
4.10.9 Language
Sets the language.
● Select the language using the
confirm with the
button.
4.10.10 Automatic turning off
Sets the time in seconds until automatic shut-down.
● Set the time using the
● Press
to confirm.
4.10.11 Battery information
Displays information on the permanently installed lithium-ion
battery.
4.10.12 Software version
Displays the part number for the software package and the
associated version part number.
4.10.13 Sign in
Access to other menu items is protected by entering a PIN.
4.10.14 Setting the measuring unit
Sets an additional, informative measuring unit.
The device is delivered from the factory with the measured
value display in the mg/L (= milligrams of ethanol per liter of
breathing air) and ‰ (= per mill) unit. The MDR requires mg/L
to always be displayed as a unit for the breath alcohol
concentration (see fold-out page B: 4 and 5).
The configurable, informative measuring unit (from software
version 2.1.9) can be selected or hidden. Depending on the
additional unit, the relevant conversion factor between breath
alcohol and blood alcohol concentration is displayed (see
fold-out page B: 4, 6, and 8).
The following combinations of measuring units are possible:
– mg/L + ‰
– mg/L + %
– mg/L + g/L
– mg/L
The selection of the configurable, informative measuring
unit is stored in a PIN-protected area.
The PIN upon delivery is: 7 0 0 0
During initial sign in, the device prompts the user to assign a
new PIN.
To select the measuring unit combination, proceed as follows:
● In the menu, select Login.
● Enter the relevant PIN.
● Press
to confirm.
● Select the Measuring unit menu item using the
buttons.
● Press
to confirm.
● Select the Add. informative unit menu item using the
and
buttons.
● Press
to confirm.
● Select the desired additional informative measuring unit
using the
and
buttons.
● Press
to confirm.
Use
and
buttons and
and
buttons.
and
|
en
21
