Boltwork connection: Possible via the two M4 threads in the bolt head available on the front side. Optionally via a pusher in
the bolt head (not included in the standard).

The bolt was according to EN1300 with a permanent load of 2,5 N over 10.000 cycles tested. These load should not be
exceeded permanently.
10.3

Lock interfaces

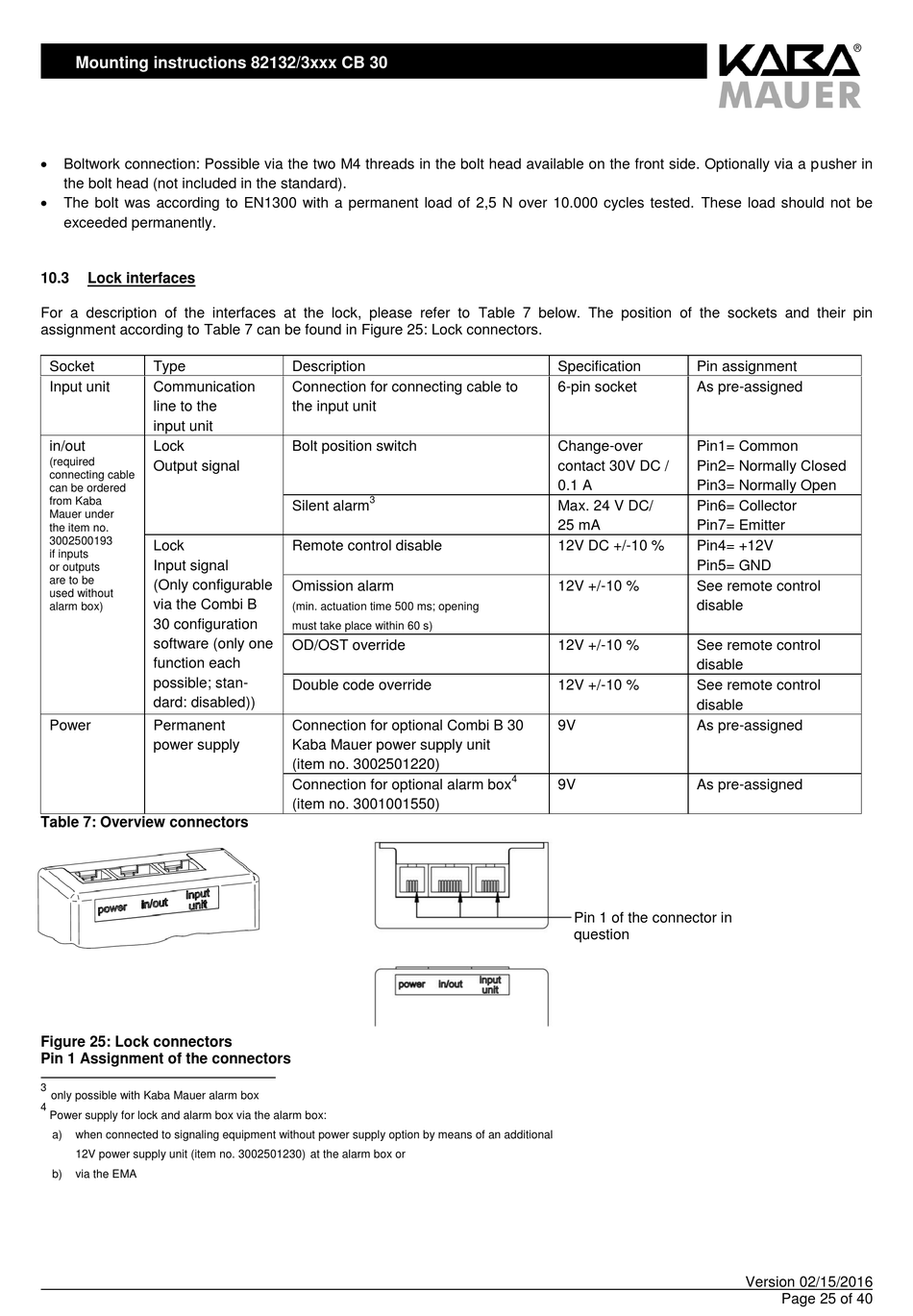

For a description of the interfaces at the lock, please refer to Table 7 below. The position of the sockets and their pin
assignment according to Table 7 can be found in Figure 25: Lock connectors.
Socket Type
Input unit Communication
line to the
input unit
in/out Lock
(required
Output signal
connecting cable
can be ordered
from Kaba
Mauer under
the item no.
3002500193
Lock
if inputs
Input signal
or outputs
are to be
(Only configurable
used without
via the Combi B
alarm box)
30 configuration
software (only one
function each
possible; stan-
dard: disabled))
Power Permanent
power supply

Table 7: Overview connectors

Figure 25: Lock connectors

Pin 1 Assignment of the connectors
3
only possible with Kaba Mauer alarm box
4
Power supply for lock and alarm box via the alarm box:
a) when connected to signaling equipment without power supply option by means of an additional
12V power supply unit (item no. 3002501230) at the alarm box or
b) via the EMA
Description
Connection for connecting cable to
the input unit
Bolt position switch
3
Silent alarm
Remote control disable
Omission alarm
(min. actuation time 500 ms; opening
must take place within 60 s)
OD/OST override
Double code override
Connection for optional Combi B 30
Kaba Mauer power supply unit
(item no. 3002501220)
Connection for optional alarm box
(item no. 3001001550)
Specification
6-pin socket
Change-over
contact 30V DC /
0.1 A
Max. 24 V DC/
25 mA
12V DC +/-10 %
12V +/-10 %
12V +/-10 %
12V +/-10 %
9V
4
9V
Pin 1 of the connector in
question
Pin assignment
As pre-assigned
Pin1= Common
Pin2= Normally Closed
Pin3= Normally Open
Pin6= Collector
Pin7= Emitter
Pin4= +12V
Pin5= GND
See remote control
disable
See remote control
disable
See remote control
disable
As pre-assigned
As pre-assigned
