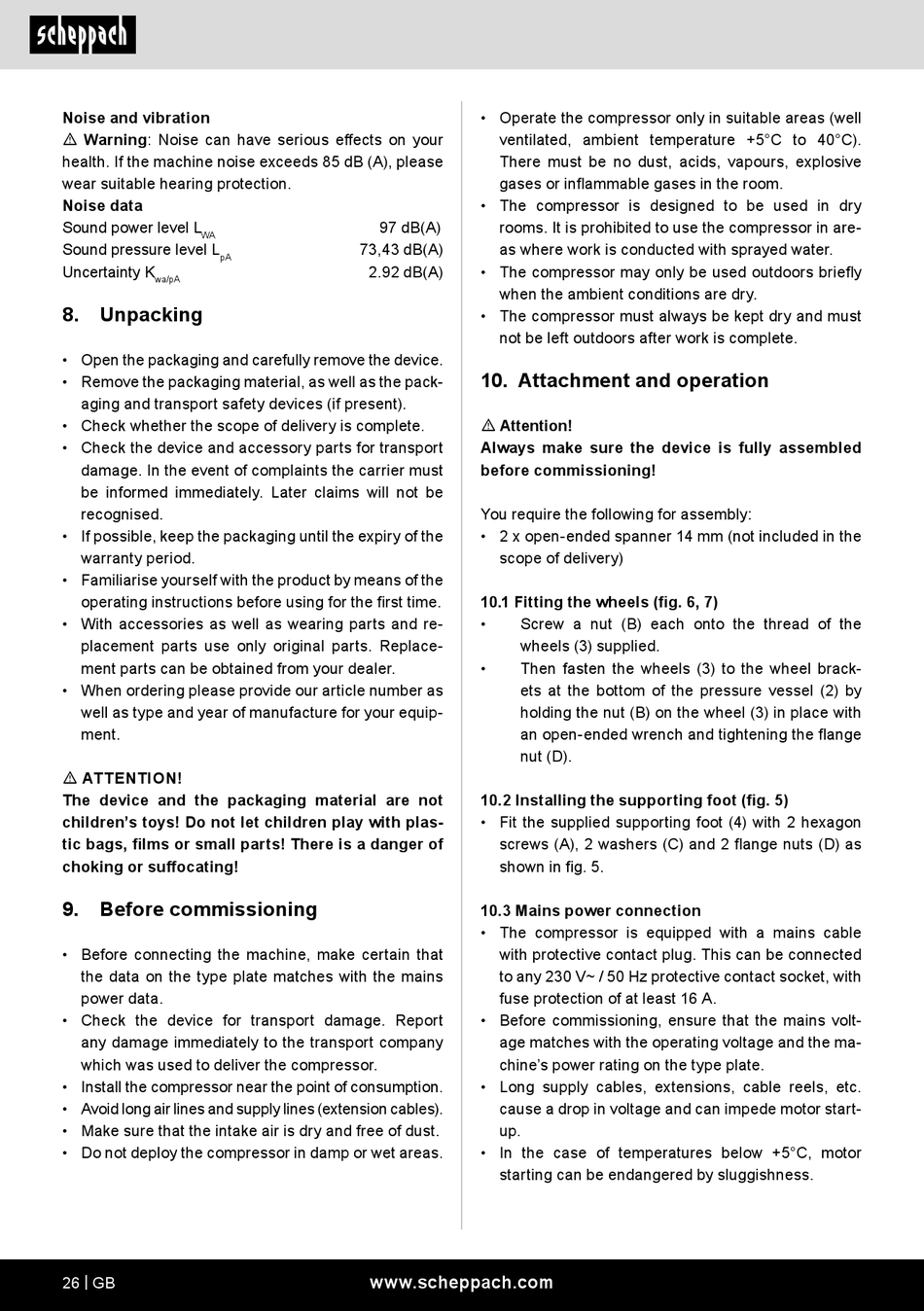

Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Before commissioning
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Check the device for transport damage. Report
any damage immediately to the transport company
which was used to deliver the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension cables).
• Make sure that the intake air is dry and free of dust.
• Do not deploy the compressor in damp or wet areas.
26 | GB
• Operate the compressor only in suitable areas (well
ventilated, ambient temperature +5°C to 40°C).
There must be no dust, acids, vapours, explosive
gases or inflammable gases in the room.
• The compressor is designed to be used in dry
97 dB(A) rooms. It is prohibited to use the compressor in are-
73,43 dB(A) as where work is conducted with sprayed water.
2.92 dB(A) • The compressor may only be used outdoors briefly
when the ambient conditions are dry.
• The compressor must always be kept dry and must
not be left outdoors after work is complete.
10. Attachment and operation
m Attention!
Always make sure the device is fully assembled
before commissioning!
You require the following for assembly:
• 2 x open-ended spanner 14 mm (not included in the
scope of delivery)
10.1 Fitting the wheels (fig. 6, 7)
• Screw a nut (B) each onto the thread of the
wheels (3) supplied.
• Then fasten the wheels (3) to the wheel brack-
ets at the bottom of the pressure vessel (2) by
holding the nut (B) on the wheel (3) in place with
an open-ended wrench and tightening the flange
nut (D).
10.2 Installing the supporting foot (fig. 5)
• Fit the supplied supporting foot (4) with 2 hexagon
screws (A), 2 washers (C) and 2 flange nuts (D) as
shown in fig. 5.
10.3 Mains power connection
• The compressor is equipped with a mains cable
with protective contact plug. This can be connected
to any 230 V~ / 50 Hz protective contact socket, with
fuse protection of at least 16 A.
• Before commissioning, ensure that the mains volt-
age matches with the operating voltage and the ma-
chine's power rating on the type plate.
• Long supply cables, extensions, cable reels, etc.
cause a drop in voltage and can impede motor start-
up.
• In the case of temperatures below +5°C, motor
starting can be endangered by sluggishness.
