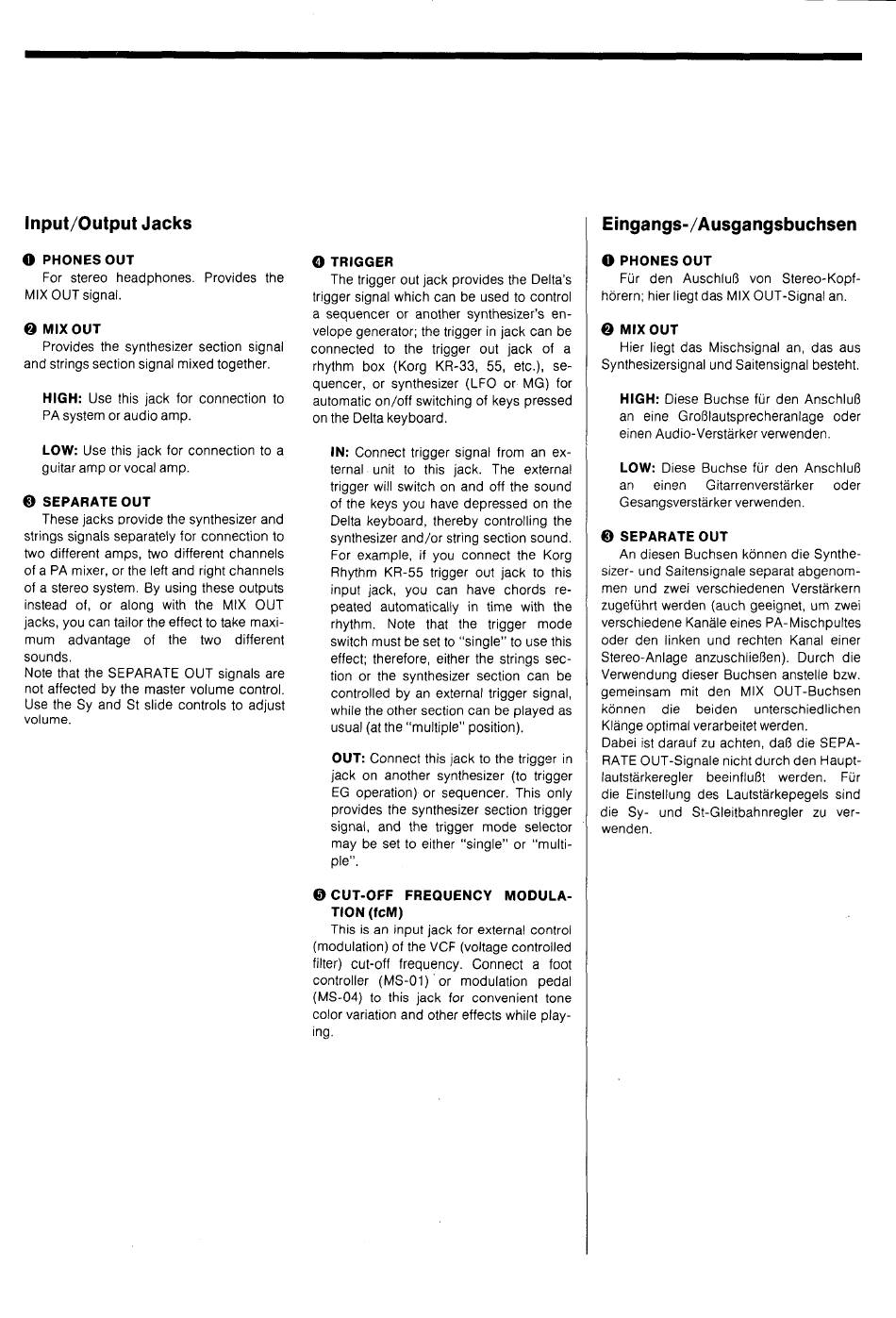

Input/Output
Jacks
O PHONES
OUT
For stereo headphones.
MIX OUT signal.
O MIX OUT
Provides the synthesizer section signal
and strings section signal mixed together.
HIGH: Use this jack for connection to
PA system or audio amp.
LOW: Use this jack for connection to a
guitar amp or vocal amp.
O SEPARATE OUT
These jacks provide the synthesizer and
strings signals separately for connection to
two different amps, two different channels
of a PA mixer, or the left and right channels
of a stereo system. By using these outputs
instead of, or along with the MIX OIJT
jacks, you can tailor the effect to take maxi-
mum
advantage
of
the
sounds.
Note that the SEPARATE OUT signals are
not affected by the master volume control.
Use the Sy and St slide controls to adjust
volume.
O TRIGGER
Provides the
The trigger out jack provides the Delta's
trigger signal which can be used to control
a sequencer or another synthesizer's en-
velope generator; the trigger in jack can be
connected to the trigger out jack of a
rhythm box (Korg KR-33, 55, etc.), se-
quencer, or synthesizer (LFO or MG) for
automatic on/off switching of keys pressed
on the Delta keyboard.
IN: Connect trigger signal from an ex-
ternal unit to this jack. The external
trigger will switch on and off the sound
of the keys you have depressed on the
Delta keyboard, thereby controlling the
synthesizer and/or string section sound.
For example, if you connect the Korg
Rhythm KR-55 trigger out jack to this
input jack, you can have chords
peated automatically
rhythm.
two
different
switch must be set to "single" to use this
effect; therefore, either the strings sec-
tion or the syntheszer
controlled by an external trigger signal,
while the other section can be played as
usual (at the "multiple" position).
OUT: Connect this jack to the trigger in
jack on another synthesizer (to trigger
EG operation) or sequencer. This only
provides the synthesizer section trigger
signal, and the trigger mode selector
may be set to either "single" or "multi-
ple".
O CUT-OFF
TION (fcM)
This is an input jack for external control
(modulation) of the VCF (voltage controlled
filter) cut-off frequency.
controller
(MS-04) to this jack for convenient tone
color variation and other effects while play-
ing.
in time with the
Note that the trigger
mode
section can be
FREQUENCY
MODULA-
Connect
a foot
(MS-01)
or modulation
pedal
Eingangs-
Ausgangsbuchsen
O PHONES
OUT
Für den Auschluß
hörern; hier liegt das MIX OUT -Signal an.
O MIX OUT
Hier liegt das Mischsignal an, das aus
Synthesizersignal und Saitensignal besteht.
HIGH:
Diese
Buchse
an eine Großlautsprecheranlage Oder
einen Audio-Verstärker
LOW:
Diese
Buchse
an
einen
Gitarrenverstärker
Gesangsverstärker verwenden.
O SEPARATE
OUT
An diesen Buchsen können die Synthe-
sizer- und Saitensignale separat abgenom-
men
und
zwei
verschiedenen
re-
zugeführt werden (auch geeignet, um zwei
verschiedene Kanäle eines PA-Mischpultes
Oder den
iinken
und
Stereo-Anlage
anzuschiießen).
Verwendung dieser Buchsen anstelle bzw.
gemeinsam
mit den MIX OUT-Buchsen
können
die
beiden
Klänge optimal verarbeitet werden.
Dabei ist darauf zu achten, daß die SEPA-
RATE OUT-Signale nicht durch den Haupt-
lautstärkeregler
beeinflußt
die Einstellung des Lautstärkepegels sind
die Sy- und St-G'eitbahnregler
wenden.
von Stereo-Kopf-
für den Anschluß
verwenden.
für den
Anschluß
Oder
Verstärkern
rechten
Kanal
einer
Durch die
unterschiedlichen
werden.
Für
zu ver-
