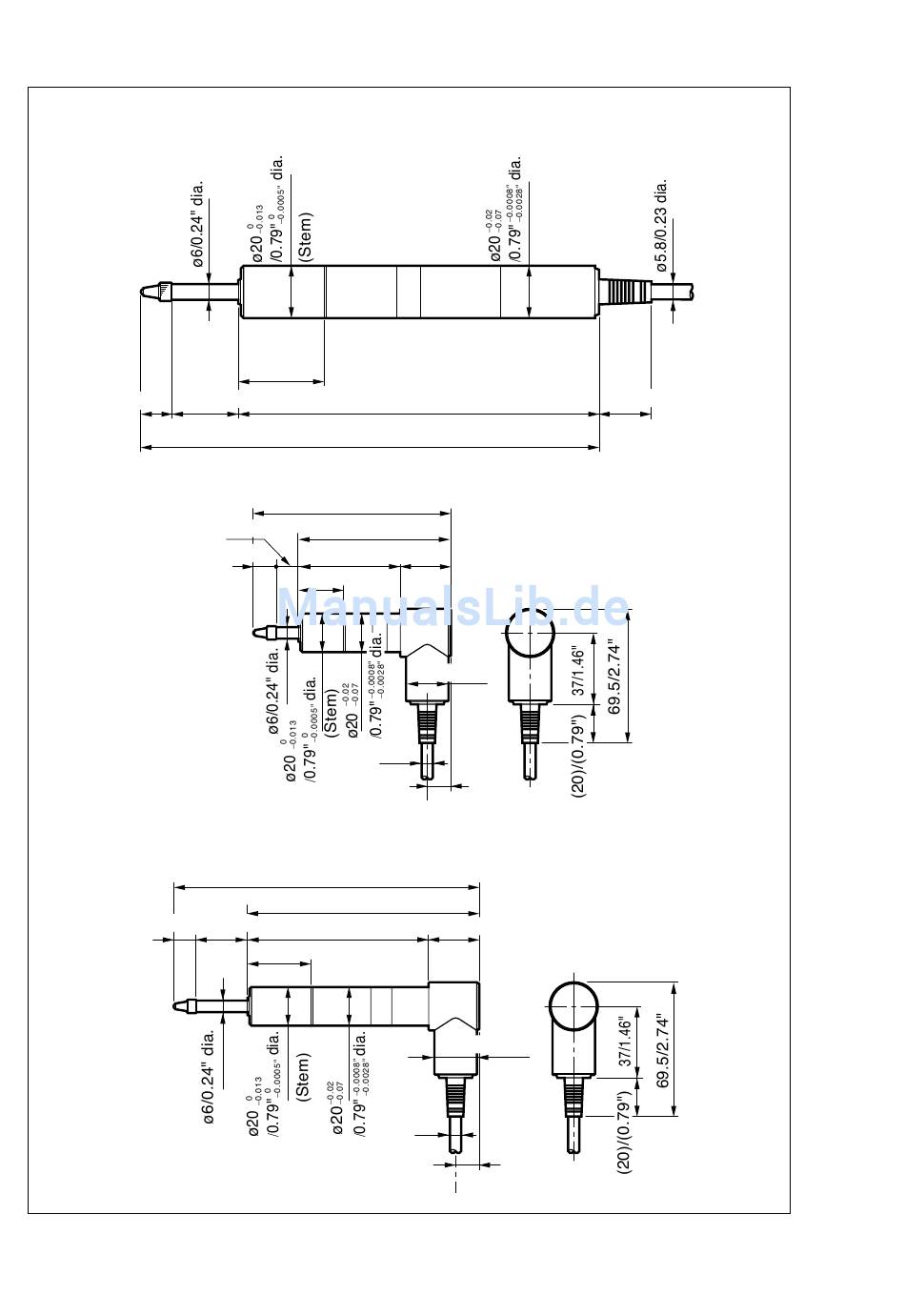

DG25BNM/DG25BPM/DG25BNE/DG25BPE
(26.5)/(1.04")
12/0.47"
DG10BSM/DG10BSE
(11.5)/(0.45")
DG25BLM/DG25BSM/DG25BLE/DG25BSE
(26.5)/(1. 04")
12/0.47"
16
(E)
33.8/1.33"
141/5.55"
179.5/7.07"
102.5/4.04"
79/3.11"
12/0.47"
52.7/2.07" 26.3/1.04"
21.3/0.84"
ø5.8/0.23" dia.
160/6.30"
121.5/4.78"
95.2/3.75"
33.8/1.33"
ø22/0.87" dia.
12.3/0.48"
26.3/1.04"
ø22/0.87" dia.
ø5.8/
0.23" dia.
12.3/0.48"
(20)/(0.79")
Unit : mm/inch
DG10B/DG25B Series
