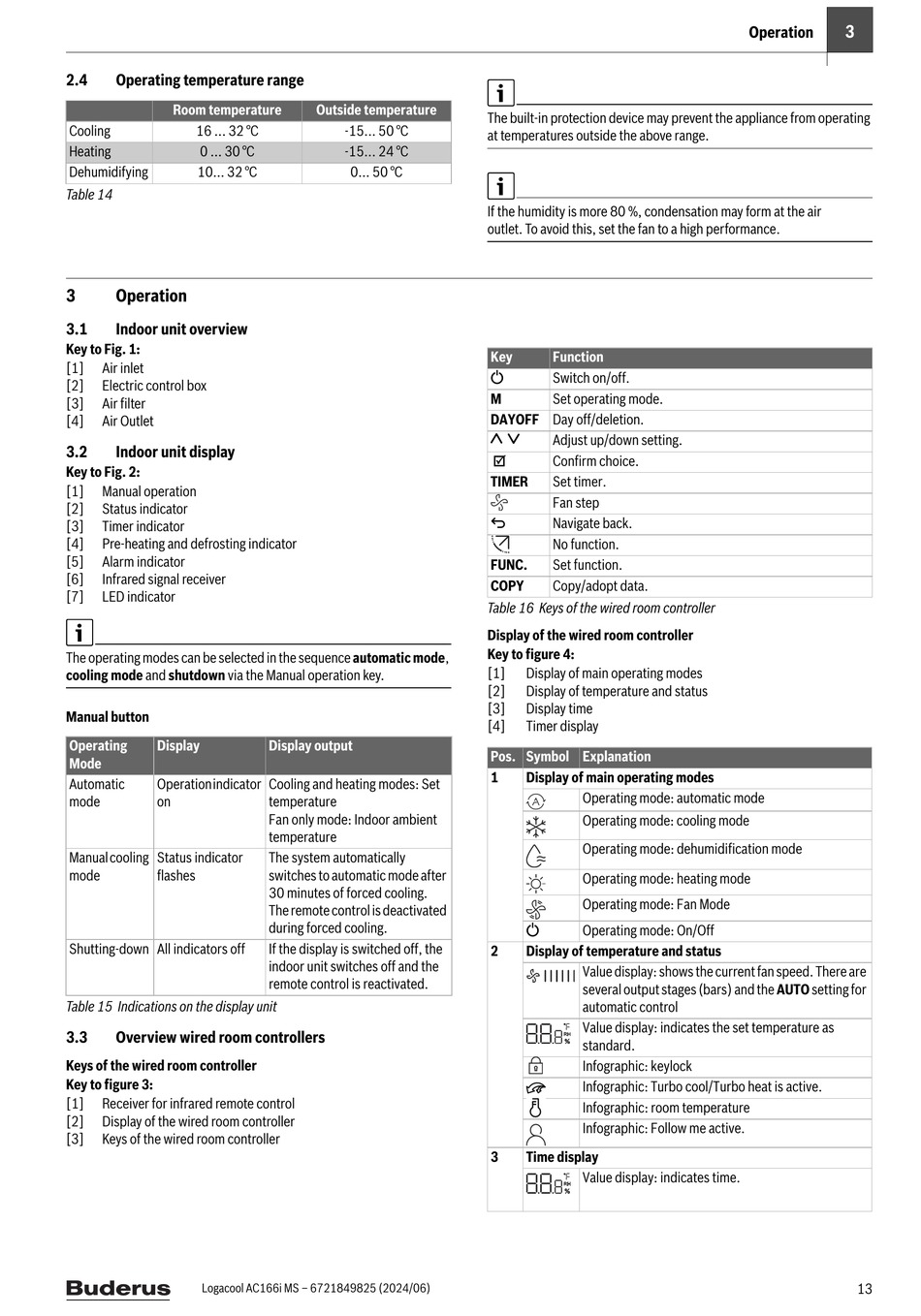

2.4 Operating temperature range
Room temperature
Cooling 16 ... 32 °C
Heating 0 ... 30 °C
Dehumidifying 10... 32 °C
Table 14
3 Operation
3.1 Indoor unit overview
Key to Fig. 1:
[1] Air inlet
[2] Electric control box
[3] Air filter
[4] Air Outlet
3.2 Indoor unit display
Key to Fig. 2:
[1] Manual operation
[2] Status indicator
[3] Timer indicator
[4] Pre-heating and defrosting indicator
[5] Alarm indicator
[6] Infrared signal receiver
[7] LED indicator
The operating modes can be selected in the sequence automatic mode,
cooling mode and shutdown via the Manual operation key.
Manual button
Operating Display
Mode
Automatic Operation indicator
mode on
Manual cooling Status indicator
mode flashes
Shutting-down All indicators off
Table 15 Indications on the display unit
3.3 Overview wired room controllers
Keys of the wired room controller
Key to figure 3:
[1] Receiver for infrared remote control
[2] Display of the wired room controller
[3] Keys of the wired room controller
Logacool AC166i MS – 6721849825 (2024/06)
Outside temperature
-15... 50 °C
-15... 24 °C
0... 50 °C
Display output
Cooling and heating modes: Set
temperature
Fan only mode: Indoor ambient
temperature
The system automatically
switches to automatic mode after
30 minutes of forced cooling.
The remote control is deactivated
during forced cooling.
If the display is switched off, the
indoor unit switches off and the
remote control is reactivated.
The built-in protection device may prevent the appliance from operating
at temperatures outside the above range.
If the humidity is more 80 %, condensation may form at the air
outlet. To avoid this, set the fan to a high performance.
Key Function
K
Switch on/off.
M Set operating mode.
DAYOFF Day off/deletion.
. /
Adjust up/down setting.

Confirm choice.
TIMER Set timer.
Fan step
d Navigate back.
No function.
FUNC. Set function.
COPY Copy/adopt data.
Table 16 Keys of the wired room controller
Display of the wired room controller
Key to figure 4:
[1] Display of main operating modes
[2] Display of temperature and status
[3] Display time
[4] Timer display
Pos. Symbol Explanation
1 Display of main operating modes
Operating mode: automatic mode
Operating mode: cooling mode
Operating mode: dehumidification mode
Operating mode: heating mode
Operating mode: Fan Mode
K
Operating mode: On/Off
2 Display of temperature and status
Value display: shows the current fan speed. There are
several output stages (bars) and the AUTO setting for
automatic control
Value display: indicates the set temperature as
standard.
Infographic: keylock
Infographic: Turbo cool/Turbo heat is active.
Infographic: room temperature
Infographic: Follow me active.
3 Time display
Value display: indicates time.
3
