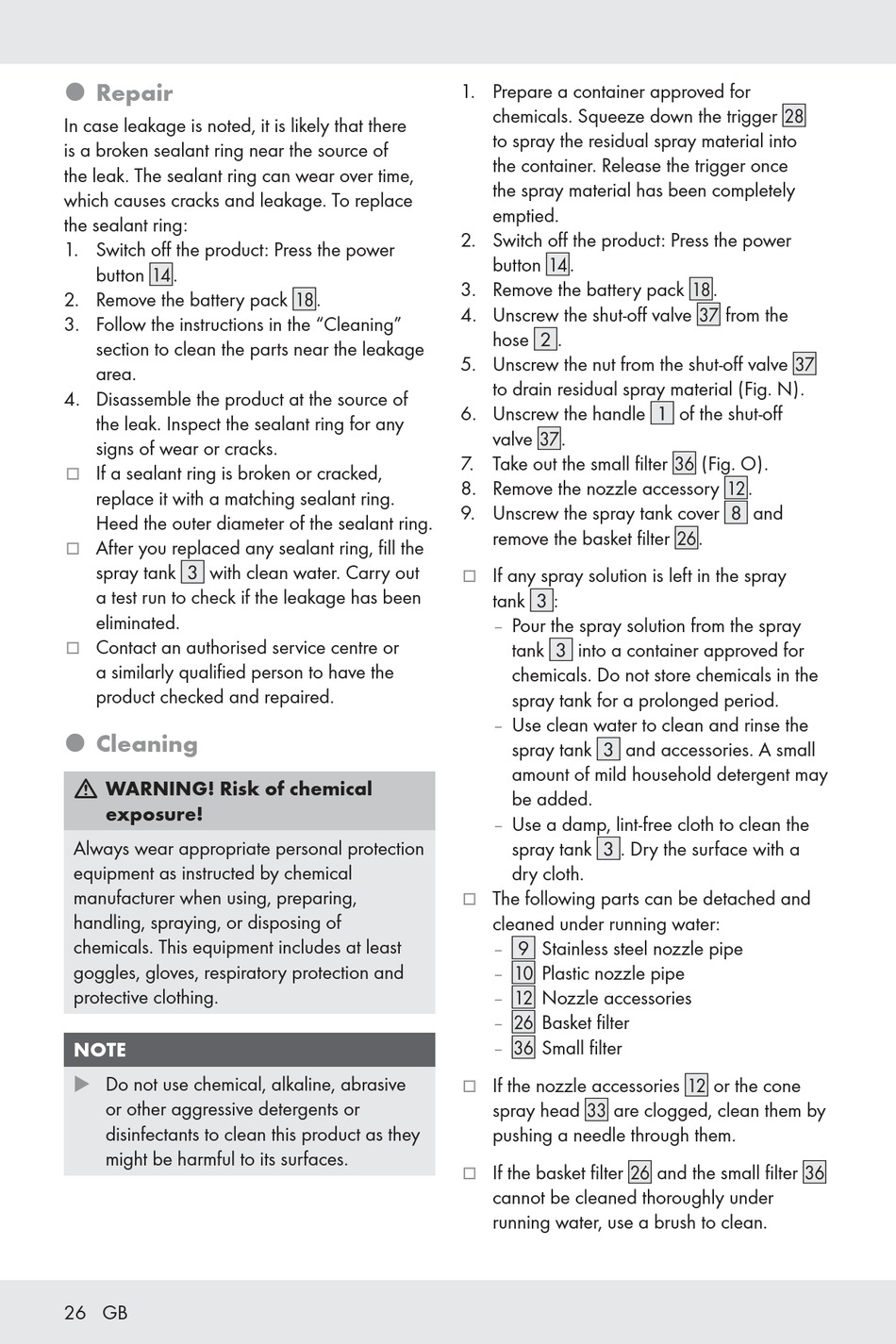

Parkside Performance PRDSP 20-Li C2 Bedienungs- Und Sicherheitshinweise Originalbetriebsanleitung Seite 28

˜ Repair
In case leakage is noted, it is likely that there
is a broken sealant ring near the source of
the leak . The sealant ring can wear over time,
which causes cracks and leakage . To replace
the sealant ring:
1 . Switch off the product: Press the power
[ 14 ]
button .
2 . Remove the battery pack
3 . Follow the instructions in the "Cleaning"
section to clean the parts near the leakage
area .
4 . Disassemble the product at the source of
the leak . Inspect the sealant ring for any
signs of wear or cracks .
o If a sealant ring is broken or cracked,
replace it with a matching sealant ring .
Heed the outer diameter of the sealant ring .
o After you replaced any sealant ring, fill the
[ 3 ]
spray tank with clean water . Carry out
a test run to check if the leakage has been
eliminated .
Contact an authorised service centre or
o
a similarly qualified person to have the
product checked and repaired .
˜ Cleaning
m
WARNING! Risk of chemical
exposure!
Always wear appropriate personal protection
equipment as instructed by chemical
manufacturer when using, preparing,
handling, spraying, or disposing of
chemicals . This equipment includes at least
goggles, gloves, respiratory protection and
protective clothing .
NOTE
u
Do not use chemical, alkaline, abrasive
or other aggressive detergents or
disinfectants to clean this product as they
might be harmful to its surfaces .
26 GB
1 . Prepare a container approved for
2 . Switch off the product: Press the power
3 . Remove the battery pack
18 ] [
.
4 . Unscrew the shut-off valve
5 . Unscrew the nut from the shut-off valve
6 . Unscrew the handle
7 . Take out the small filter
8 . Remove the nozzle accessory
9 . Unscrew the spray tank cover
chemicals . Squeeze down the trigger
to spray the residual spray material into
the container . Release the trigger once
the spray material has been completely
emptied .
[ 14 ]
button .
2 ] [
hose .
to drain residual spray material (Fig . N) .
37 ] [
valve .
remove the basket filter
If any spray solution is left in the spray
o
3 ] [
tank :
– Pour the spray solution from the spray
[ 3 ]
tank into a container approved for
chemicals . Do not store chemicals in the
spray tank for a prolonged period .
– Use clean water to clean and rinse the
[ 3 ]
spray tank and accessories . A small
amount of mild household detergent may
be added .
– Use a damp, lint-free cloth to clean the
[ 3 ]
spray tank . Dry the surface with a
dry cloth .
o The following parts can be detached and
cleaned under running water:
[ 9 ]
– Stainless steel nozzle pipe
[ 10 ]
– Plastic nozzle pipe
[ 12 ]
– Nozzle accessories
[ 26 ]
– Basket filter
[ 36 ]
– Small filter
o If the nozzle accessories
33 ] [
spray head are clogged, clean them by
pushing a needle through them .
26 ] [
If the basket filter
o
cannot be cleaned thoroughly under
running water, use a brush to clean .
28 ] [
18 ] [
.
37 ] [
from the
[ 37 ]
1 ] [
of the shut-off
36 ] [
(Fig . O) .
12 ] [
.
8 ] [
and
[ 26 ]
.
[ 12 ]
or the cone
36 ] [
and the small filter
