Rear rack PROBC2, PROBC2+, PROBC3
FG2, FG2+, FG3 for trailer tow bar
CONTENTS
1. PROPER USE OF THE PRODUCT ____________________ 16
2. SCOPE OF DELIVERY ___________________________ 16
3. SPECIFICATIONS _____________________________ 16
4. SAFETY PRECAUTIONS _________________________ 17
5. OPERATING INSTRUCTIONS ______________________ 18
5.1 MOUNTING THE LABEL _________________________ 18
5.2 MOUNTING THE FRAME HOLDER ___________________ 19
5.3 MOUNTING THE BICYCLE CARRIER ONTO THE TRAILER TOW BAR 19
5.4 ADJUSTMENT OF THE QUICK LOCK __________________ 20
5.5 CONNECTING THE ELECTRICAL CABLE ________________ 20
5.6 UNFOLDING THE BICYCLE CARRIER __________________ 21
5.7 MOUNTING THE BICYCLES ONTO THE CARRIER ___________ 21
5.8 FOLDING BACK THE BICYCLE CARRIER ________________ 24
5.9 REMOVING THE BICYCLE CARRIER FROM THE TRAILER TOW BAR 25
6. MAINTENANCE AND CARE _______________________ 25
6.1 MAINTENANCE ______________________________ 25
6.2 CARE ____________________________________ 25
7. NOTES REGARDING ENVIRONMENTAL PROTECTION ________ 26
8. TIPS AND TRICKS _____________________________ 26
9. CONTACT INFORMATION ________________________ 26
WARNING
Please read the operating instructions carefully prior
to use and observe all safety instructions!
Non-compliance can lead to personal injury, damage
to the device or to your property!
Keep the original packaging, the purchase receipt as
well as these instructions for future reference! When
transferring this product pass on these instructions as
well.
Before operating, check that the content of the
package is intact and complete!
1. PROPER USE OF THE PRODUCT
The PROBC2, FG2 / PROBC2+, FG2+ bicycle carrier is used to transport a
maximum of two bicycles on the trailer tow bar of a vehicle. The PROBC2+,
FG2+ bicycle carrier is designed for vehicles with a particularly large
tailgate (minivans, minibuses). With this carrier, the distance from the
trailer coupling to the carrier table is extended in order to be able to
open the tailgate. The bicycle carrier PROBC3, FG3 is used to transport a
maximum of three bicycles on the trailer tow bar of a vehicle.
In combination with the extension for an additional bicycle
(item number 11572), the bicycle carrier can be used to transport up to
three bicycles, PROBC2, FG2 / PROBC2+, FG2+, and up to four bicycles,
PROBC3, FG3.
It must be mounted on trailer tow bars that meet the requirements
described in chapter 3 – Specifi cations/coupling requirements. The
permissible load capacity of the bicycle carrier must not be exceeded under
any circumstances.
This device is not designed to be used by children or persons with limited
mental abilities or without experience and/or lack of required specialist
knowledge. Children should keep away from the device.
This device is not intended for commercial usage.
Proper usage also includes observing all the information in these
instructions, especially observance of the safety notes. Any other usage is
considered improper and can lead to property damage and personal injury.
EAL GmbH is not liable for damages that occur due to improper usage.
16
2. SCOPE OF DELIVERY
A 1 x bicycle carrier
B 2 x keys
C 2 (3*) x fastening straps for front wheels
D 1 x safety strap for bicycle frame
* PROBC3, FG3 only

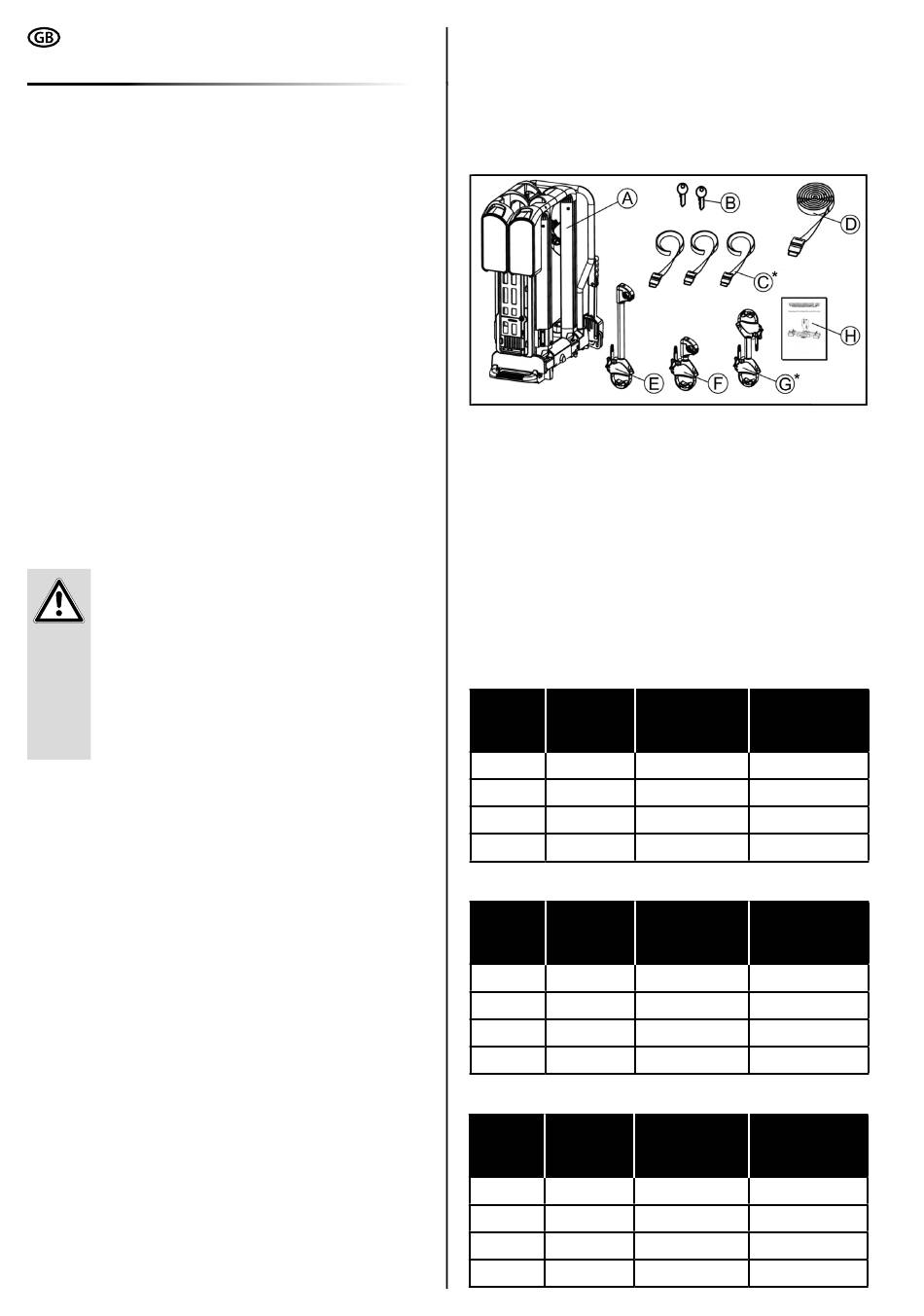

Figure 1: Overview of scope of delivery
3. SPECIFICATIONS
Item No.
Folding mechanism
Material
Number of bicycles
Dead weight approx.
Load bearing capacity (max.)
Wheelbase (max.)
Tyre width (max.)
Rail spacing
PROBC2, FG2 bicycle carrier
Supporting Dead weight Max. load capacity
load trailer bicycle carrier bicycle carrier
tow bar
50 kg 17 kg 33 kg
60 kg 17 kg 43 kg
75 kg 17 kg 58 kg
90 kg 17 kg max. 60 kg
PROBC2+, FG2+ bicycle carrier
Supporting Dead weight Max. load capacity
load trailer bicycle carrier bicycle carrier
tow bar
50 kg 18 kg 32 kg
60 kg 18 kg 42 kg
75 kg 18 kg 57 kg
90 kg 18 kg max. 60 kg
PROBC3, FG3 bicycle carrier
Supporting Dead weight Max. load capacity
load trailer bicycle carrier bicycle carrier
tow bar
50 kg 22 kg 28 kg
60 kg 22 kg 38 kg
75 kg 22 kg 53 kg
90 kg 22 kg max. 60 kg
E 1 x frame holder, long
F 1 x frame holder, short
G 1 x Bicycle to bicycle
frame holder *
H 1 x instruction manual
11600 / 11601 11602
Yes Yes
Steel/aluminium Steel/aluminium
2 3
17 kg / 18 kg 22 kg
60 kg 60 kg
135 cm 135 cm
3,25" (8 cm) 3,25" (8 cm)
23 cm 23 cm
Max. load capacity
bicycle carrier with
extension
30.5 kg
40.5 kg
55.5 kg
max. 60 kg
Max. load capacity
bicycle carrier with
extension
29.5 kg
39.5 kg
54.5 kg
max. 60 kg
Max. load capacity
bicycle carrier with
extension
25.5 kg
35.5 kg
50.5 kg
max. 60 kg
