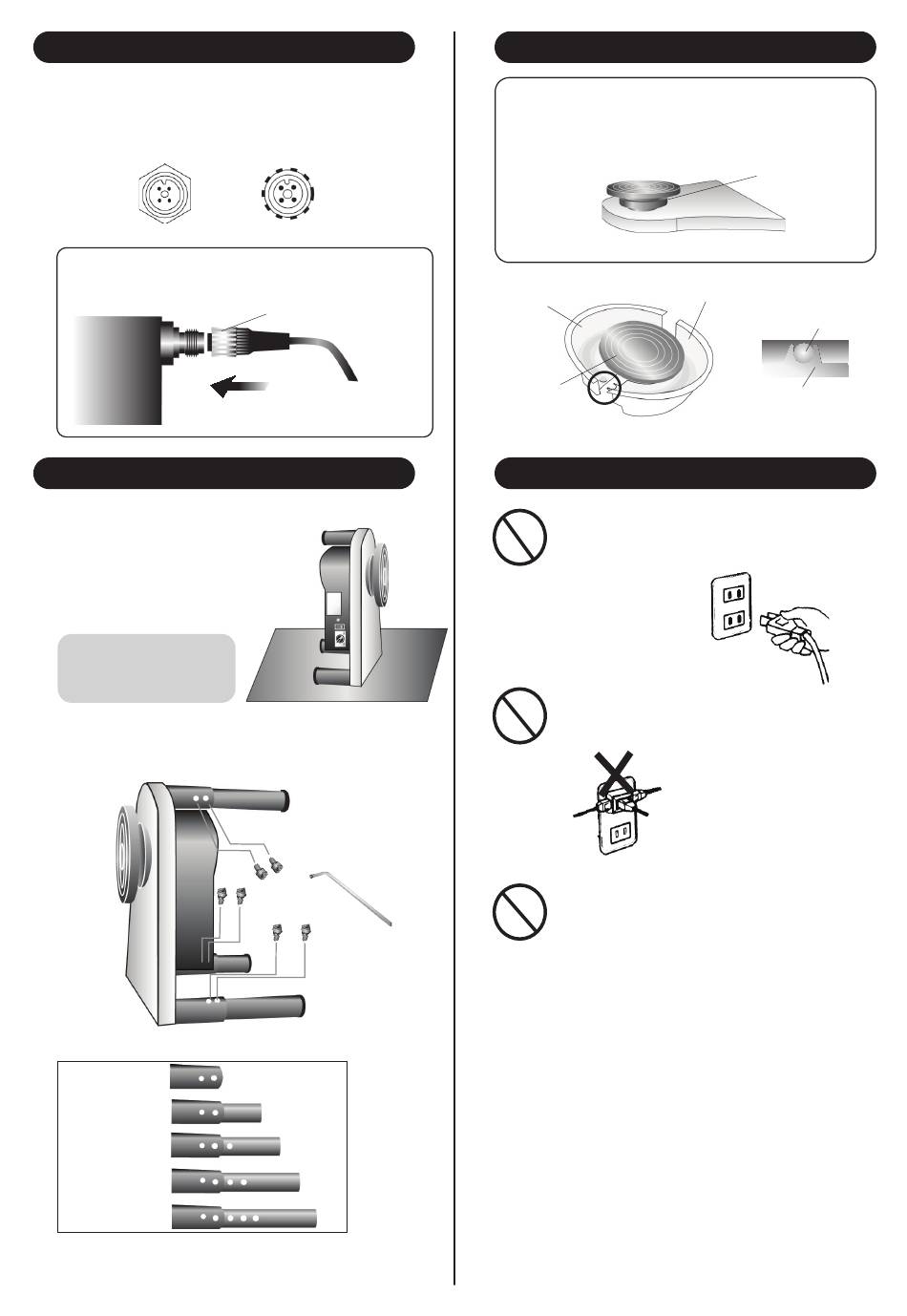

Foot Pedal Installation
Please unplug powercable before starting
① Insert the female connector to the male
connector after positioned correctly.
male connector
② Fasten the connecter by turnning
the screw cap.
Leg Installation
① Place the wheel vertically
on the carpet as displayed
in the picture to the right.
② Remove the rubber caps.
(keep those for future use.)
Caution:
Wheel is not stable
standing vertically.
③ Insert the leg as the drawing illustrates.
Adjust the height evenly on all three legs.
Tighten bolts with allen wrench.
5 different height adjustments .
Height 290 ㎜
Height 465 ㎜
Height 495 ㎜
Height 525 ㎜
Height 555 ㎜
④ Place the wheel horizontally after
tighting the bolts.
female connector
② Turn the screw cap
① Insert the connector
position of bolts
allen wrench
Bolts
M6 x 12
Splash Pan Installation
① Insert splash pan A into the groove
under the seal frange.
② Insert splash pan B into the groove
under the seal frange.
③ Join splash pan A into splash B
Splash pan Ａ
Wheelhead
Power connection
Connect the power cable to a
230V single phase AC power
outlet only.
Do not connect many power
cables to the same outlet.
Make sure the power switch is
off when you plug the power
cable into the AC outlet.
- 5 -
Seal frange
Splash pan B
Splash pan Ａ
Splash pan Ｂ
May cause fire
by exceeding
outlet capacity.
