Kalibrieren des Touchpanels:
Calibrating the touch panel:

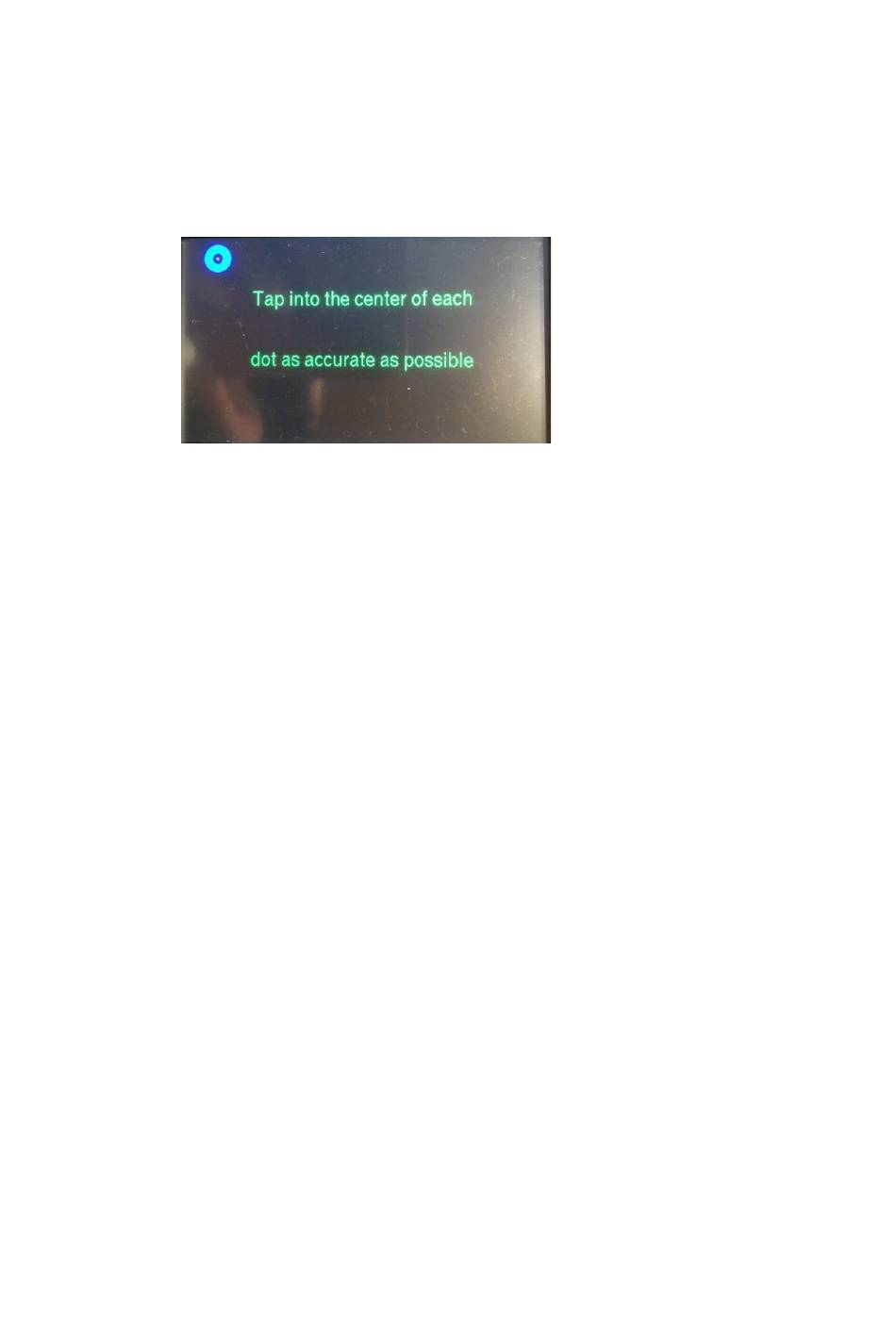

Finger auf das Touchpanel halten und Spannungsversorgung einschalten. Nach dem Hochfahren und
loslassen des Fingers zeigt das Touchpanel folgendes Bild:
Hold your finger on the touch panel and switch on the power supply. After powering up and release the
finger, the touch panel will now show the following image:
Nun die drei Punkte nacheinander antippen, anschließend ist der Touch neu kalibriert.
Now tap the three points one after the other and the touch panel will be recalibrated.
