GEIGER ENGINEERING HPD12 Serie Handbuch Seite 79

Belegung der ADCI Steckplätze /
Connection MC1:
DB9 male
Signal
Rev.
RS485_B
RS485_A
Poti
Gnd
Enable
PF3
Led/Beep
+5V
Gnd Gehäuse
Connection MC2:
DB9 male
Signal
Rev.
RS485_B
RS485_A
Poti
Gnd
Enable
PF3
Led/Beep
+5V
Gnd Gehäuse

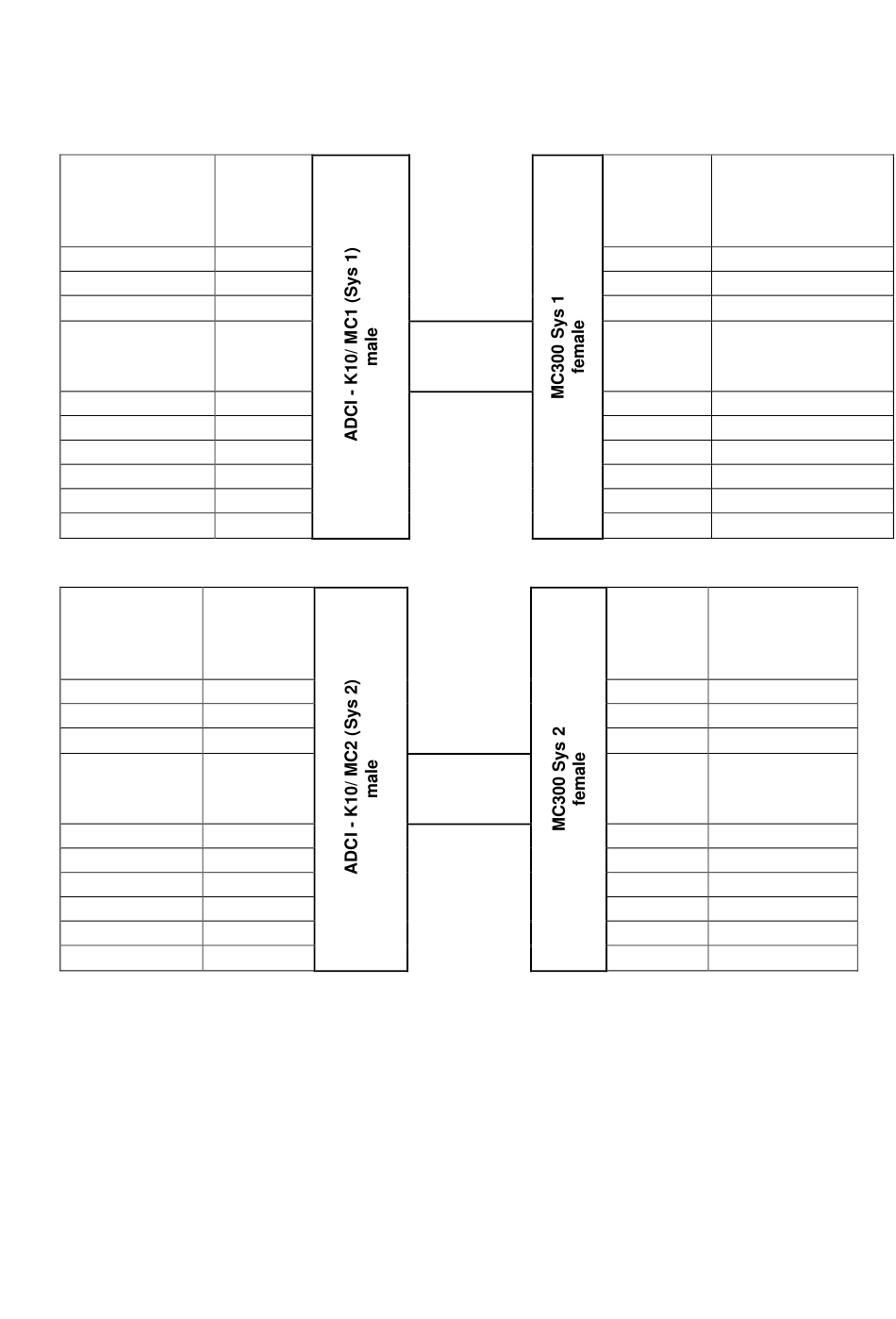

Layout ADCI connectors
ADCI
PinNr.:
1
2
3
4
5
6
7
8
9
ADCI
PinNr.:
1
2
3
4
5
6
7
8
9
DB9-cable;
MXT1002MBK
DB9-cable;
MXT1002MBK
DB9 female
MC300
MC300/Sys 1
PinNr.:
Signal
1
2 RS485_B
3 RS485_A
4
5
6 Enable
7
8 Led/Beep
9
Gehäuse
DB9 female
MC300 MC300/Sys 2
PinNr.: Signal
1 Rev.
2 RS485_B
3 RS485_A
4 Poti
5 Gnd
6 Enable
7 PF3
8 Led/Beep
9 +5V
Gehäuse Gnd
Rev.
Poti
Gnd
PF3
+5V
Gnd
79
