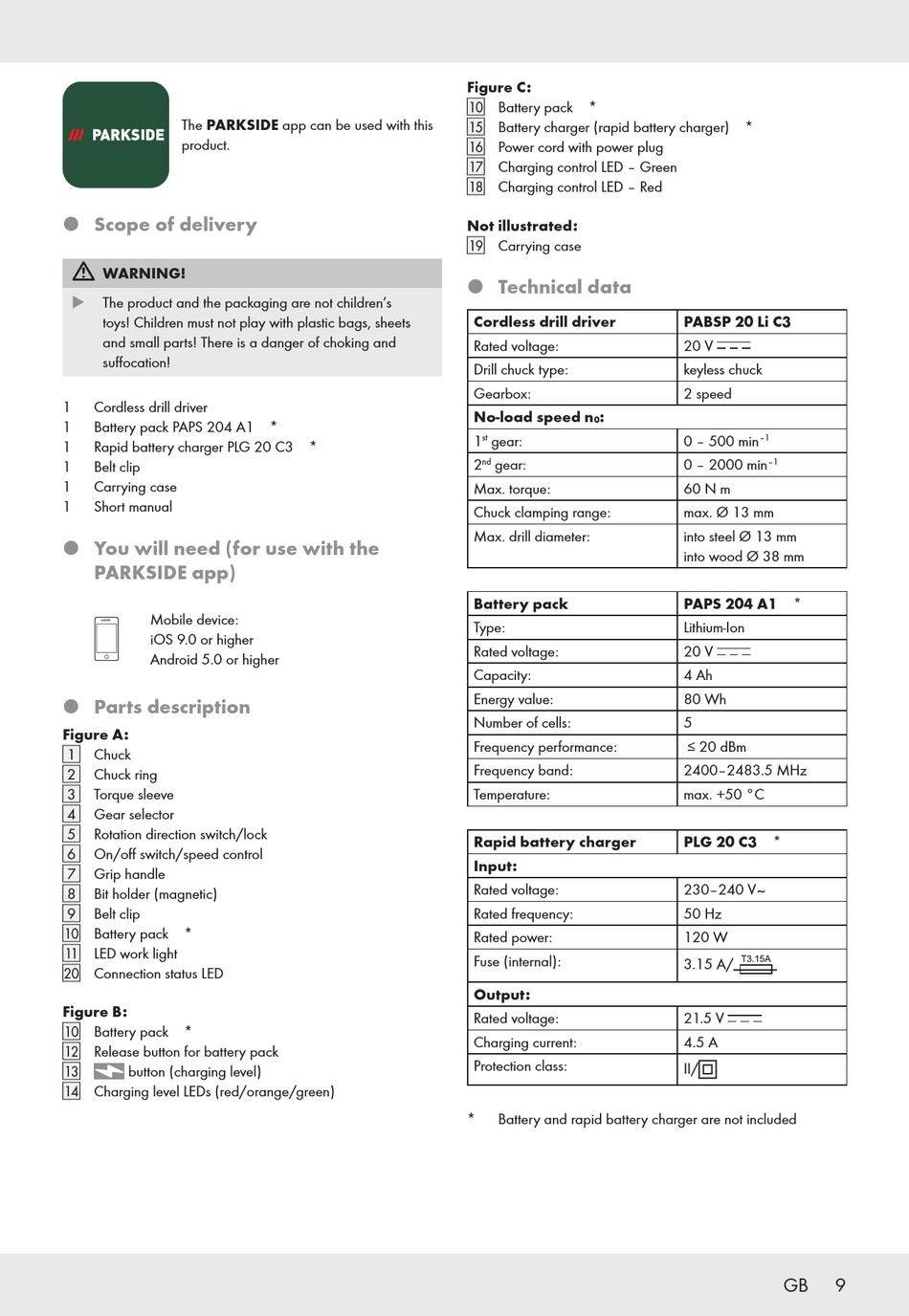

The PARKSIDE app can be used with this
product .
˜ Scope of delivery
m
WARNING!
The product and the packaging are not children's
u
toys! Children must not play with plastic bags, sheets
and small parts! There is a danger of choking and
suffocation!
1 Cordless drill driver
1 Battery pack PAPS 204 A1 *
1 Rapid battery charger PLG 20 C3 *
1 Belt clip
1 Carrying case
1 Short manual
˜ You will need (for use with the
PARKSIDE app)
Mobile device:
iOS 9 .0 or higher
Android 5 .0 or higher
˜ Parts description
Figure A:
Chuck
1 ] [
Chuck ring
2 ] [
Torque sleeve
[ 3 ]
Gear selector
[ 4 ]
Rotation direction switch/lock
[ 5 ]
On/off switch/speed control
6 ] [
Grip handle
7 ] [
Bit holder (magnetic)
[ 8 ]
Belt clip
[ 9 ]
Battery pack *
[ 10 ]
LED work light
[ 11 ]
Connection status LED
20 ] [
Figure B:
Battery pack *
[ 10 ]
Release button for battery pack
[ 12 ]
button (charging level)
[ 13 ]
Charging level LEDs (red/orange/green)
[ 14 ]
Figure C:
Battery pack *
[ 10 ]
Battery charger (rapid battery charger) *
[ 15 ]
Power cord with power plug
16 ] [
Charging control LED – Green
17 ] [
Charging control LED – Red
18 ] [
Not illustrated:
Carrying case
[ 19 ]
˜ Technical data
Cordless drill driver
Rated voltage:
Drill chuck type:
Gearbox:
No-load speed n :
0
1 gear:
st
2 gear:
nd
Max . torque:
Chuck clamping range:
Max . drill diameter:
Battery pack
Type:
Rated voltage:
Capacity:
Energy value:
Number of cells:
Frequency performance:
Frequency band:
Temperature:
Rapid battery charger
Input:
Rated voltage:
Rated frequency:
Rated power:
Fuse (internal):
Output:
Rated voltage:
Charging current:
Protection class:
* Battery and rapid battery charger are not included
PABSP 20 Li C3
20 V
keyless chuck
2 speed
0 – 500 min
–1
0 – 2000 min
–1
60 N m
max . Ø 13 mm
into steel Ø 13 mm
into wood Ø 38 mm
PAPS 204 A1 *
Lithium-Ion
20 V
4 Ah
80 Wh
5
≤ 20 dBm
2400–2483 .5 MHz
max . +50 °C
PLG 20 C3 *
230–240 V
~
50 Hz
120 W
3 .15 A/
21 .5 V
4 .5 A
II/
