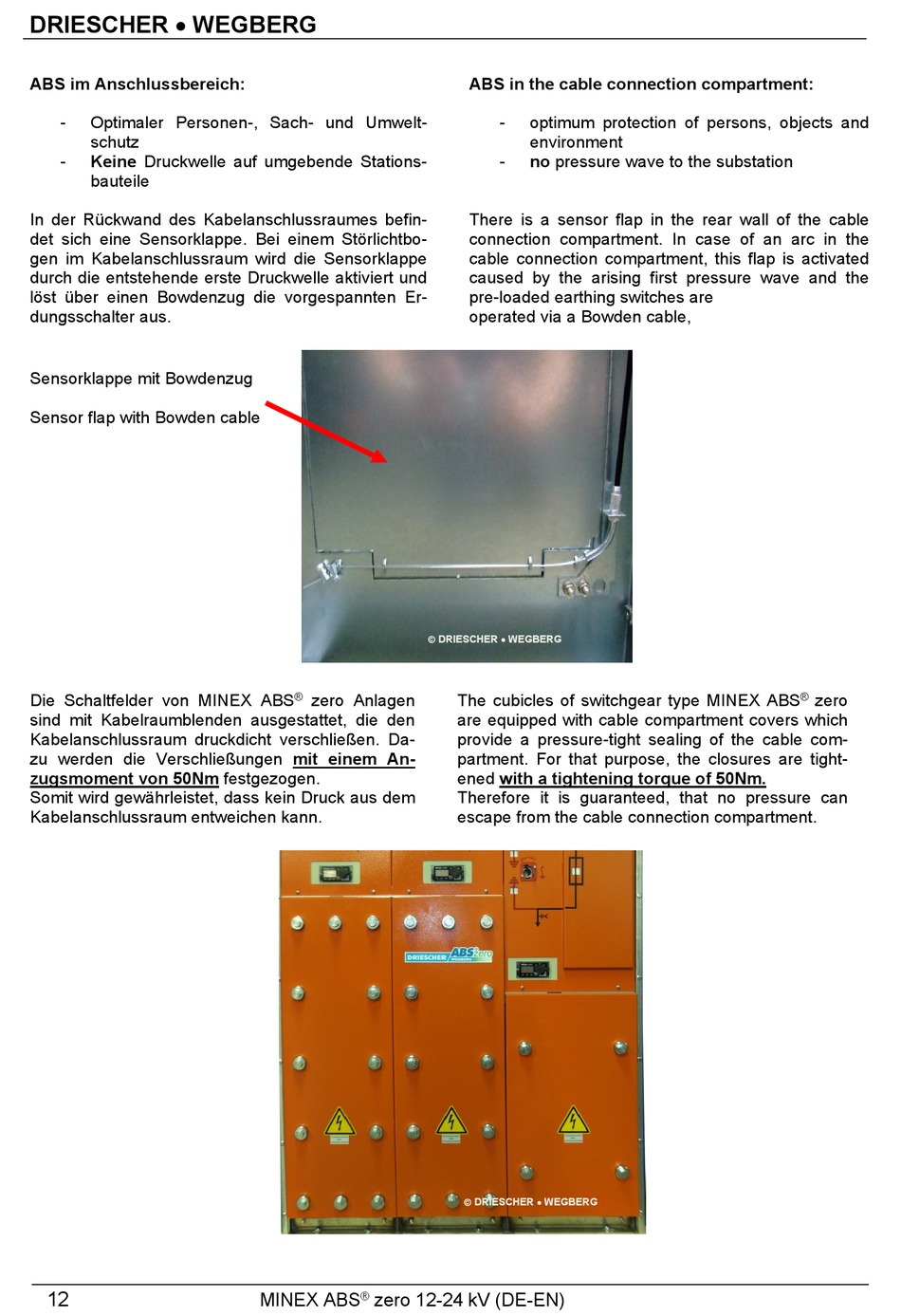

DRIESCHER  WEGBERG
ABS im Anschlussbereich:
-
Optimaler Personen-, Sach- und Umwelt-
schutz
-
Keine Druckwelle auf umgebende Stations-
bauteile
In der Rückwand des Kabelanschlussraumes befin-
det sich eine Sensorklappe. Bei einem Störlichtbo-
gen im Kabelanschlussraum wird die Sensorklappe
durch die entstehende erste Druckwelle aktiviert und
löst über einen Bowdenzug die vorgespannten Er-
dungsschalter aus.
Sensorklappe mit Bowdenzug
Sensor flap with Bowden cable
Die Schaltfelder von MINEX ABS
sind mit Kabelraumblenden ausgestattet, die den
Kabelanschlussraum druckdicht verschließen. Da-
zu werden die Verschließungen mit einem An-
zugsmoment von 50Nm festgezogen.
Somit wird gewährleistet, dass kein Druck aus dem
Kabelanschlussraum entweichen kann.
12
 DRIESCHER  WEGBERG
®
zero Anlagen
MINEX ABS
zero 12-24 kV (DE-EN)
®
ABS in the cable connection compartment:
-
optimum protection of persons, objects and
environment
-
no pressure wave to the substation
There is a sensor flap in the rear wall of the cable
connection compartment. In case of an arc in the
cable connection compartment, this flap is activated
caused by the arising first pressure wave and the
pre-loaded earthing switches are
operated via a Bowden cable,
The cubicles of switchgear type MINEX ABS
are equipped with cable compartment covers which
provide a pressure-tight sealing of the cable com-
partment. For that purpose, the closures are tight-
ened with a tightening torque of 50Nm.
Therefore it is guaranteed, that no pressure can
escape from the cable connection compartment.
