COMPACT 1.4
Take care not to invert polarities when connecting the unit to the power supply. Should this occur,
the electronic control will give out a series of beeps. Do not touch any keys on the unit's control
or panel, as this may produce irreparable damage. If you hear these beeps, disconnect the unit
from the power supply and check the connection polarity.
Blower
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT WARNING!
TEMP
Wiring strip
Na
Electronic
module
-
+
+
25 A. Fuse
F
D
C
P
T
Compressor
ºC
ºF
ON/OFF
10 A. Fuse
original shot
25
EN
®

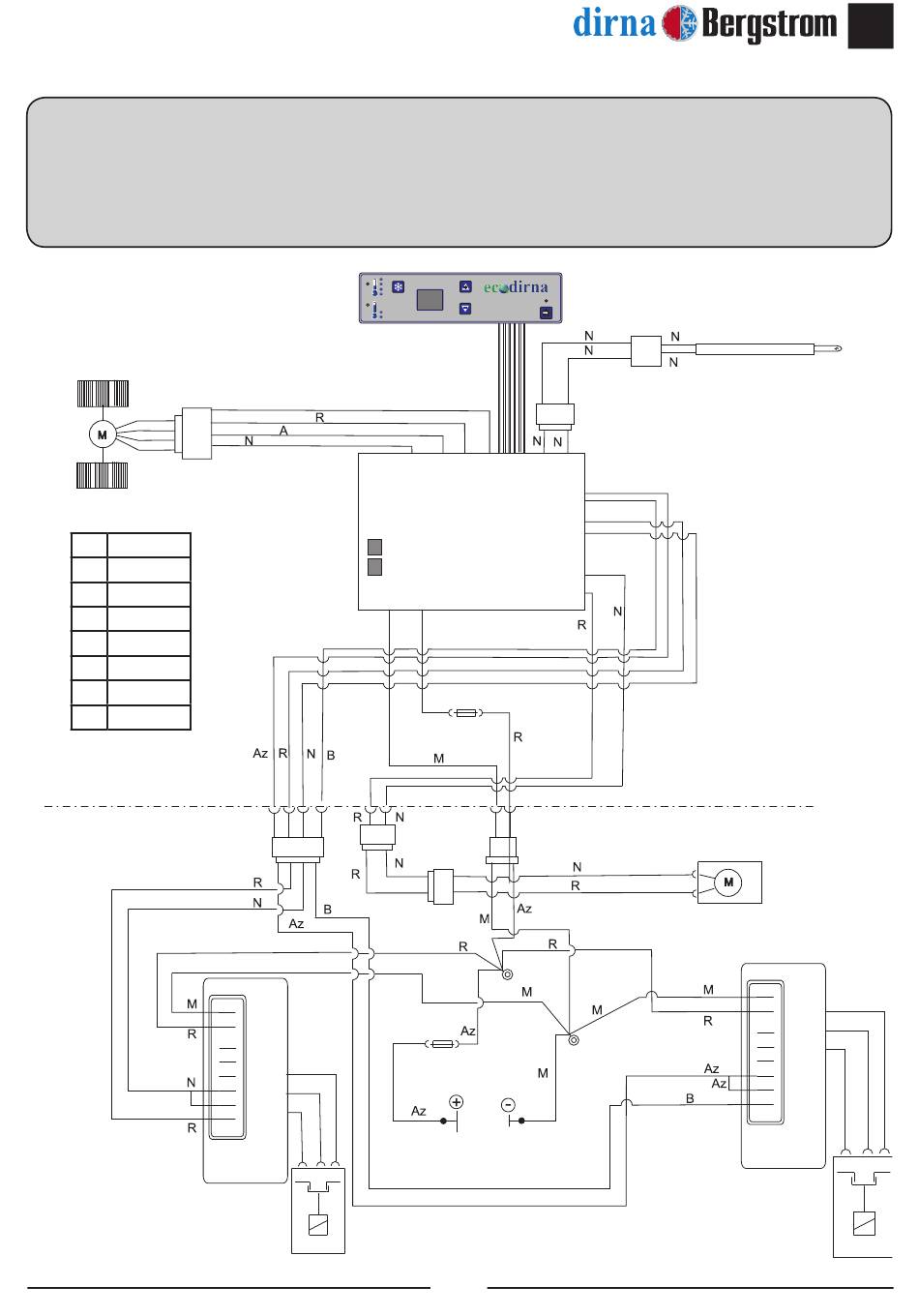

Electric wiring
Temperature probe
Fan
Compressor
electronic
module
-
+
+
F
D
C
P
T
Compressor
