dirna Bergstrom bycool green line compact 1.4 Montageanweisungen Seite 16

COMPACT 1.4
EN ES
2

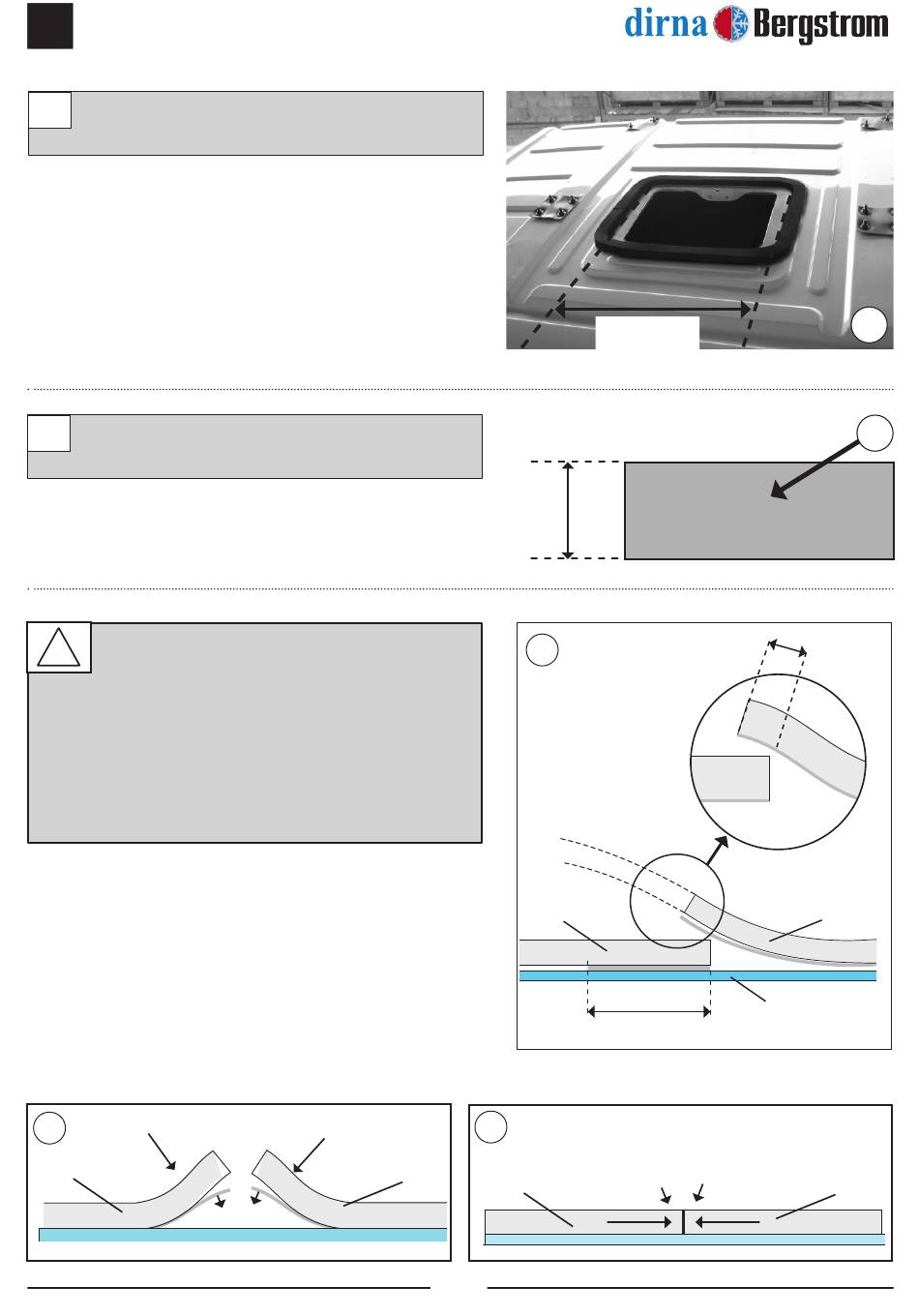

Stick on the seal, around the cut or the hatch
gap.
2a
Details of the positioning of the seal.
HOW TO CUT EPDM GASKET TO AVOID
!
WATER FILTRATION INTO THE CABIN
A- Glue gasket, keeping 100 mm of
protection paper at each side.
B- Remove the two pieces of paper.
C- Glue by pressing both ends.
B
Gasket
Gasket
Remove
460 mm
minimum
40 mm
A
Gasket
100 mm Approx. (protection paper)
C
Gasket
16
®
2
2a
15 mm
Gasket
Cabin roof
Gasket
