COMPACT 1.4
8

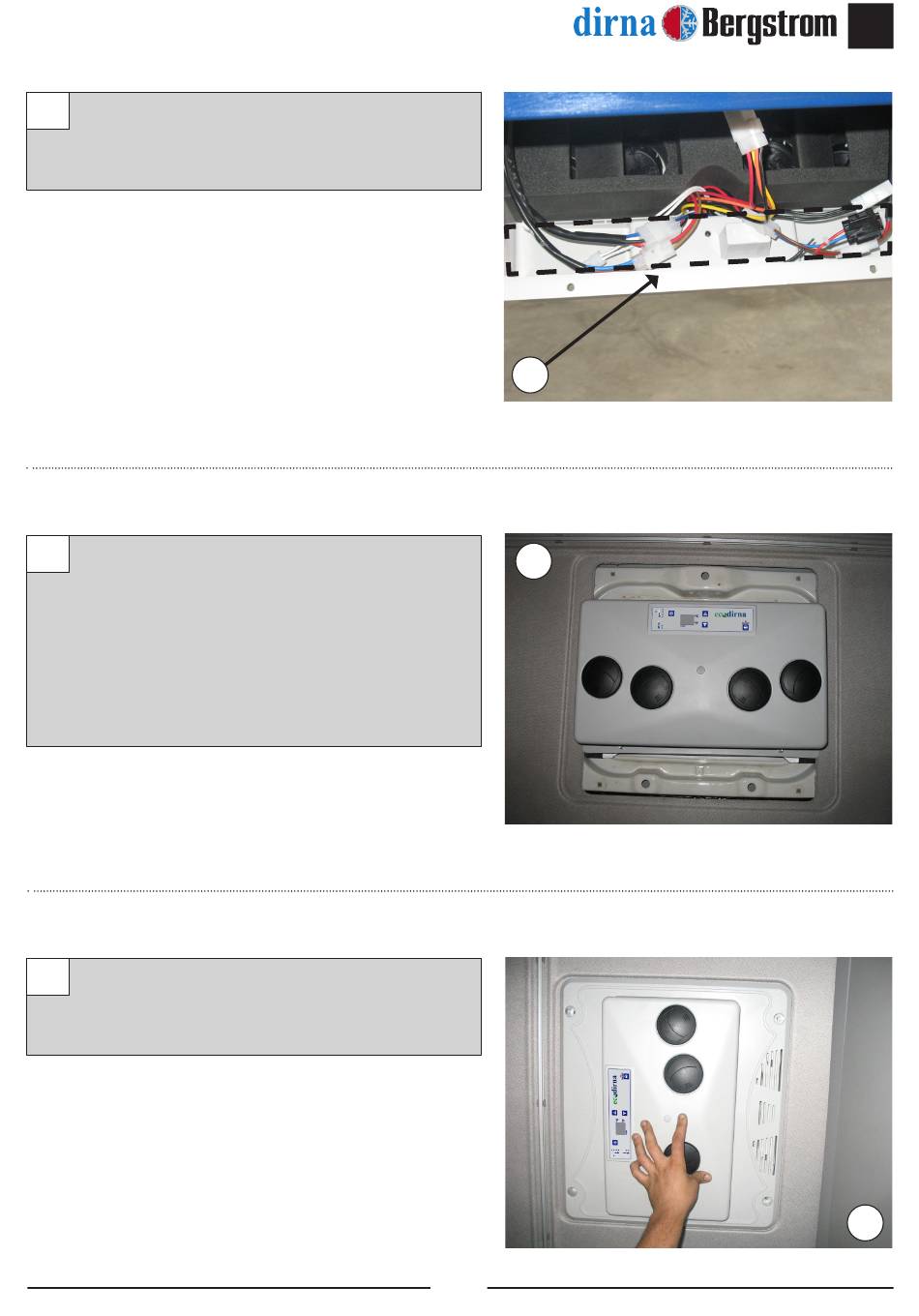

To introduce the wirig at the existing hole (H) at
the rear part for not interfering with the adjustment
of the ductings with the unit base.
9
Place the front section on the attachment
supports (4) with flat washers of 6 mm, attaching
it with self-blocking (4) M6 nuts and thread
without tightening.
Important: The channelling equipment should
come to a stop against the foam rubber in
order to prevent leakages of air.
10
Place the console using original screws and align
in the Compact in the most ideal position, until
the original screws coincide in their location.
H
9
19
EN
®
10
