gilles.tooling RCT10GT-K02 Anbauanleitung Seite 5

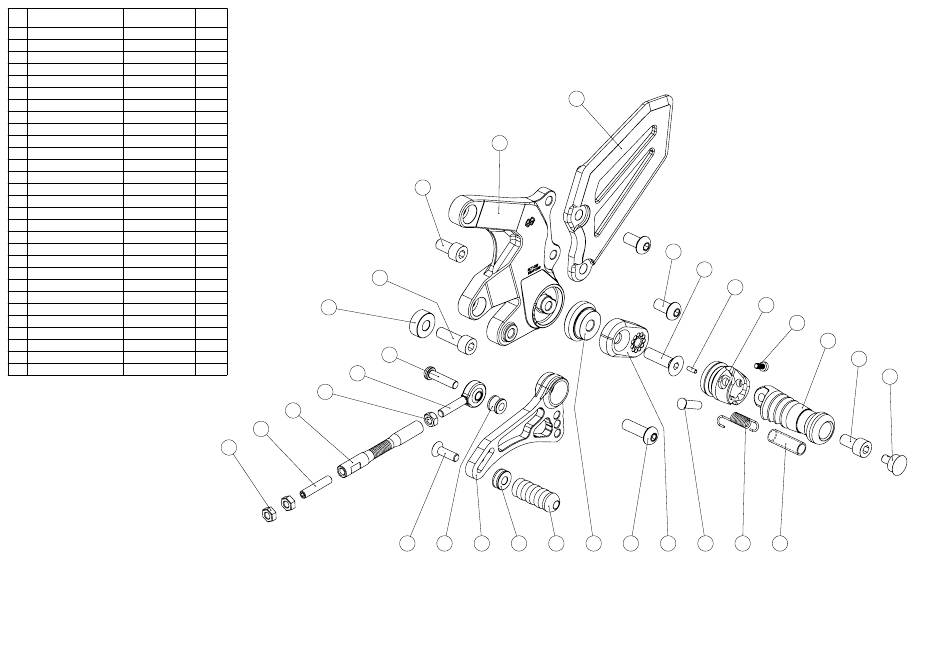

pos article no. description
1 RCT-GL-K02 base plate left
2 CAR-12-L heel guard left
3 RG-DS-02-* extension adapter
4 RG-A-20-* extension
5 RG-810-* footrest joint
6 UF-24-* footrest
7 UF-ST-01-* plug
8 RG-BO-01 bolt
9 US-03-* gear lever
10 USW08-* gear shaft
11 UTR-15-* gear lever toe piece
12 DS 20-8-8-* spacer
13 DS-15-6-6-* spacer
14 DS12-6-9-* spacer
15 M8x25-7380-VA oval-head bolt
16 M8x16-7380-VA oval-head bolt
17 M6x25-7380-VA-TX-PRE10-1 oval-head bolt
18 M8x30-7991-VA countersunk bolt
19 M6x25-7991-VA countersunk bolt
20 M8x25-912-VA cylinder bolt
21 M8x16-912-VA cylinder bolt
22 M4x8-14580-VA-TX cylinder bolt
23 M6x30-L-913-VA setscrew lh
24 M6-934-VA nut
25 M6-L-934-VA nut lh
26 GAKFR6 ball and socket bearing
27 SIF-19078 pull spring
28 d3x8-8750-VA spiral tension pin
29 SPC-02 tube for spring
qty.
[pcs]
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
2
20
1
1
12
1
2
1
1
1
1
26
24
10
23
25
1
21
17
19 14 9 13 11
2
16
18
28
3 15 4 8 27
5
22
6
21
7
29
