RCT10GT-K02
rearset

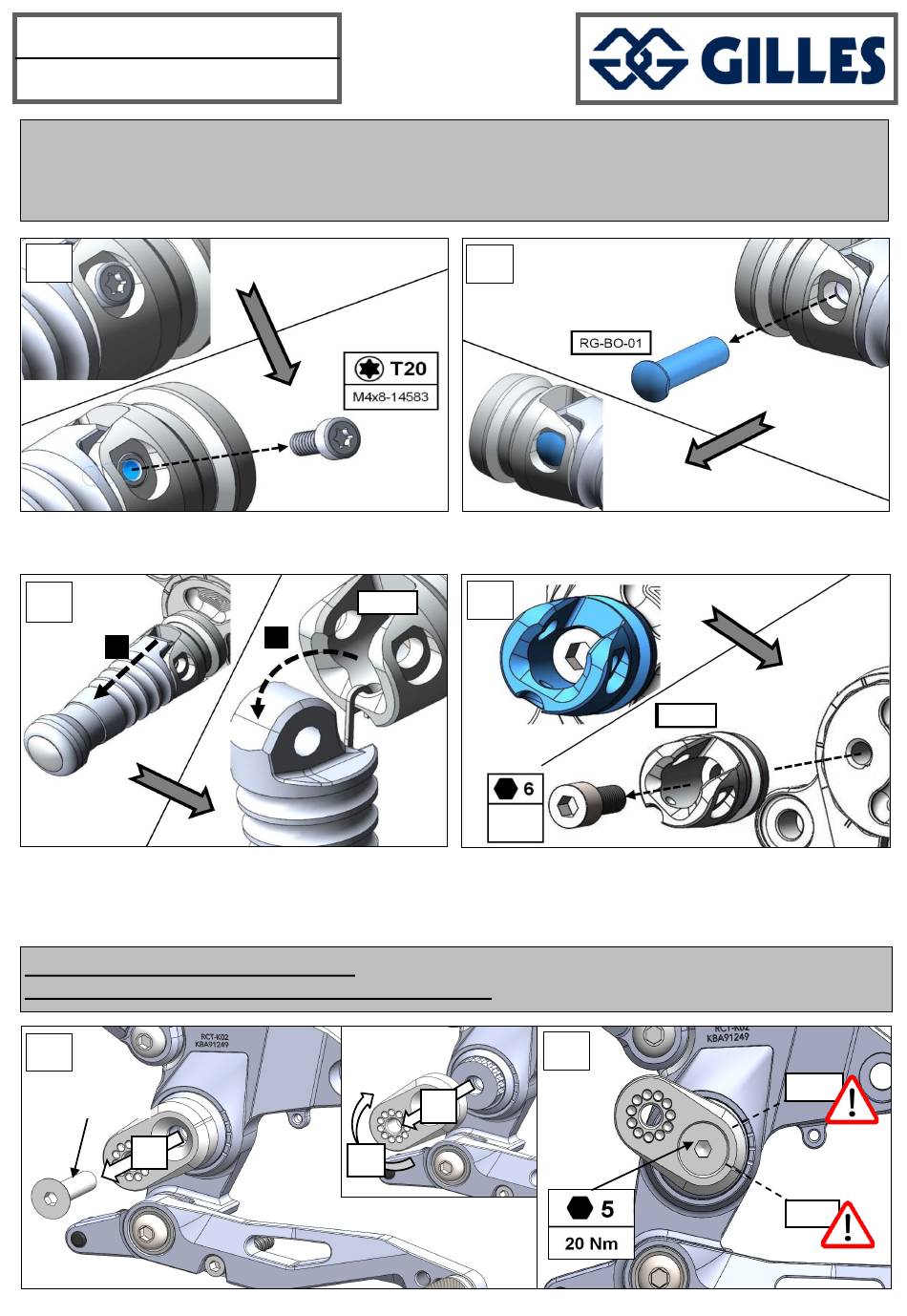

Einstellungen/ Adjustments
1: Entfernen Sie die Fussrate um Ihre neue, individuelle Sitzposition auf der Fussrastenanlage einzustellen.
Ablauf auf rechter und linker Seite identisch (R=L)!
1: Remove the footpeg to adjust your new and individual ridingposition on the rearset system`s basic plate.
Procedure is on the right and left side the same (R=L)!
1.1
1.1 / 1.2: Entfernen Sie die Schraube (M4x8-14583) und den Bolzen (RG-BO-01) gemäß der Darstellungen.
1.1 / 1.2: Detach the screw screw (M4x8-14583) and the bolt (RG-BO-01) according to the pictures.
1.3
a
1.3: Ziehen Sie am Rastenkörper (a) und schwenken Sie diesen aus dem Gelenk (RG-870) heraus (b).
1.4: Demontieren Sie die Schraube M8x16-912 und somit das Gelenk RG-870.
1.3: Pull at the footpeg (a) and slide it outside the joint (RG-870) according to the picture (b).
1.4: Disassemble the screw M8x16-912 and thus the joint like the picture shows. It follows
2 Fußrastenausleger (RG-A-20) versetzen: Wählen Sie eine Fahrerposition (1-5) gemäß Darstellung 2
2 Adjustment changing of the footpeg extension (RG-A-20): Choose a new, indiviual riding position (1-5) picture 2
R=L
2.1
(M8x30-7991)
a
RG-870
b
b
c
1.2
1.4
6
M8x16
M8x16
M8x16
-912
-912
-912
2.2
RG-870
min.
max.
